Replacing components

Please note that it is essential that ESD protective safety measures are taken when working with
components susceptible to ESD. When removing or fitting circuit boards or components susceptible to
ESD, ensure that you use ESD mats, wrist straps, or similar.
6.1

E/P pack

To replace the following components, the E/N pack must be opened:
◗
Battery switching circuit board
◗
Batteries
◗
Switching power supply
◗
Various circuit breakers
◗
Speaker

Removing the E/P pack

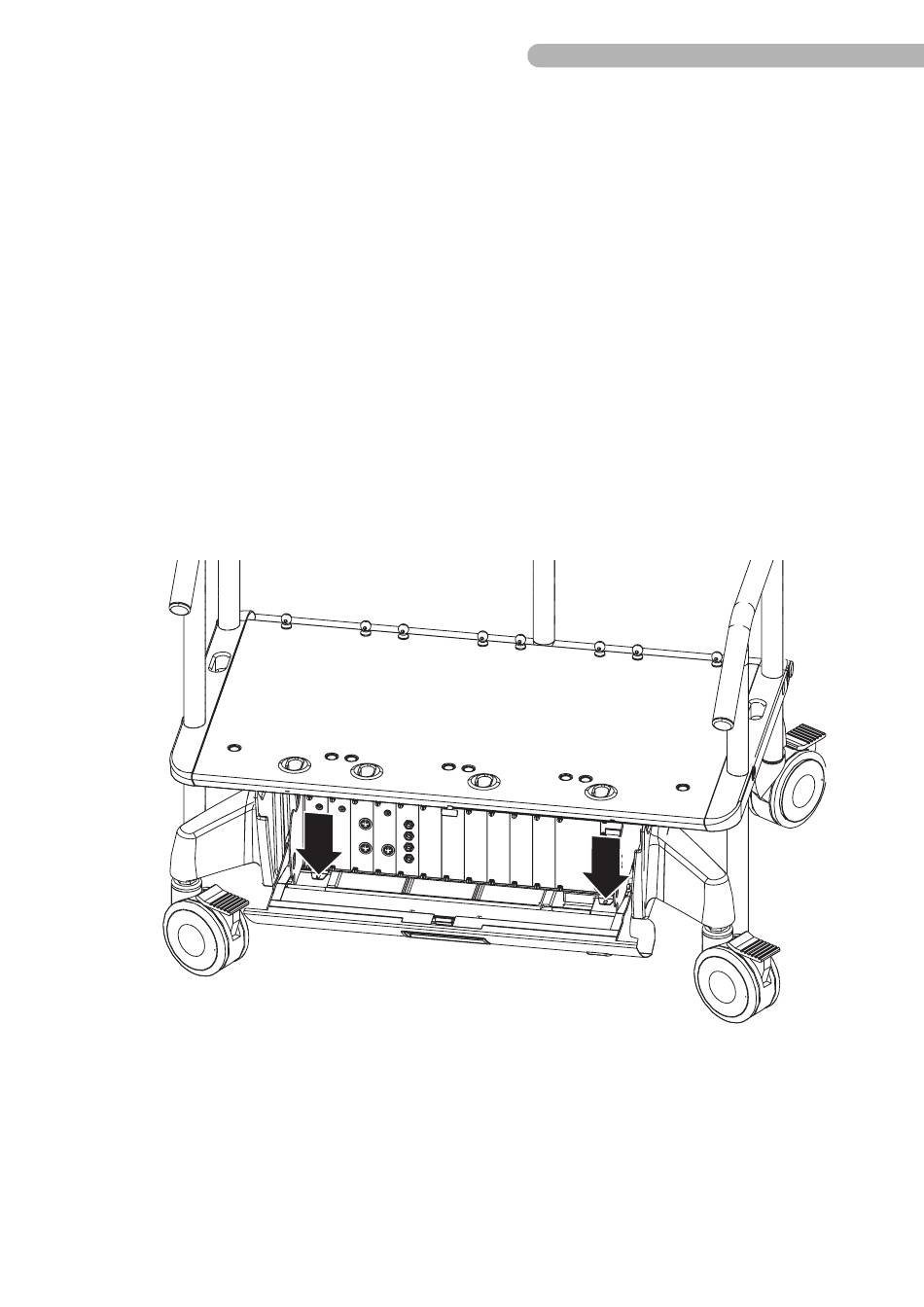

Fig. 37: Removing the E/P pack (1)
◗
Make certain that all E/P pack connectors (system connection panel and sensor modules im in front
and the system slots beside) are be removed first.
◗
Loosen the two screws on the console.
SM-5811-0000.01 ENG
S5 System • Replacing components
!
6.1
