Circuit board mast roller pumps 85 (motor controller and motor power
amplifier)
G 5
G 12
G 16

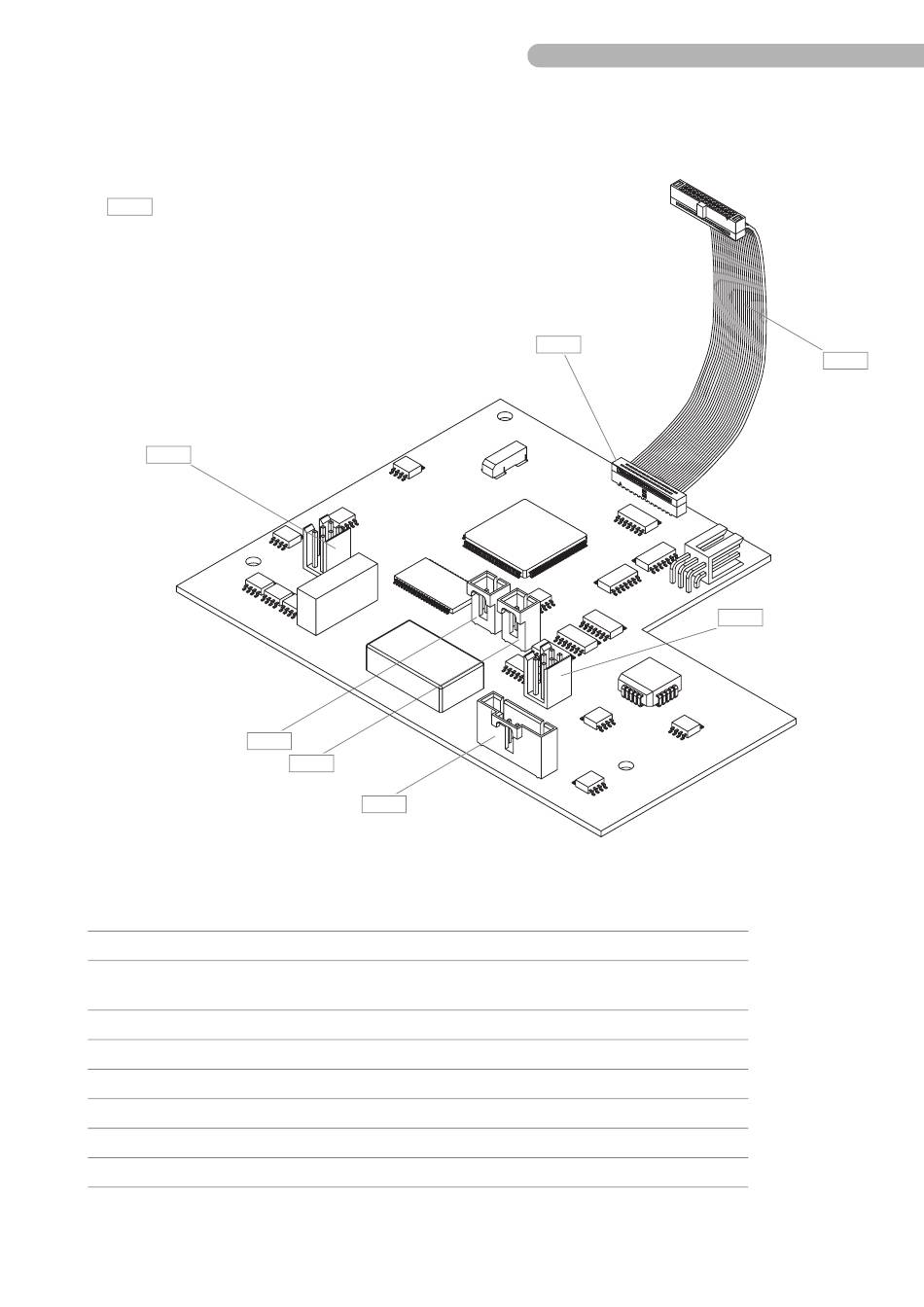

Fig. 34: Circuit board motor controller MRP85
Item Name
G 5 Circuit board motor controller MRP85
G 10 Ribbon cable connection on circuit board motor
power amplifier MRP85 G 6
G 11 Plug connection ribbon cable G 10
G 12 Plug connection S5 control panel mast roller pump
G 13
Socket connection Hall effect sensor
G 14 Socket connection control cable on pump
G 15 Socket connection cover pump head
G 16
Socket connection temperature
SM-5811-0000.01 ENG
G 15
G 14
Number
HMR 0403
CON 1
CON 2
CON 3
CON 4
CON 6
CON 7
S5 System • System description
G 11
Part Number
90-305-710
G 10
G 13
3.51
