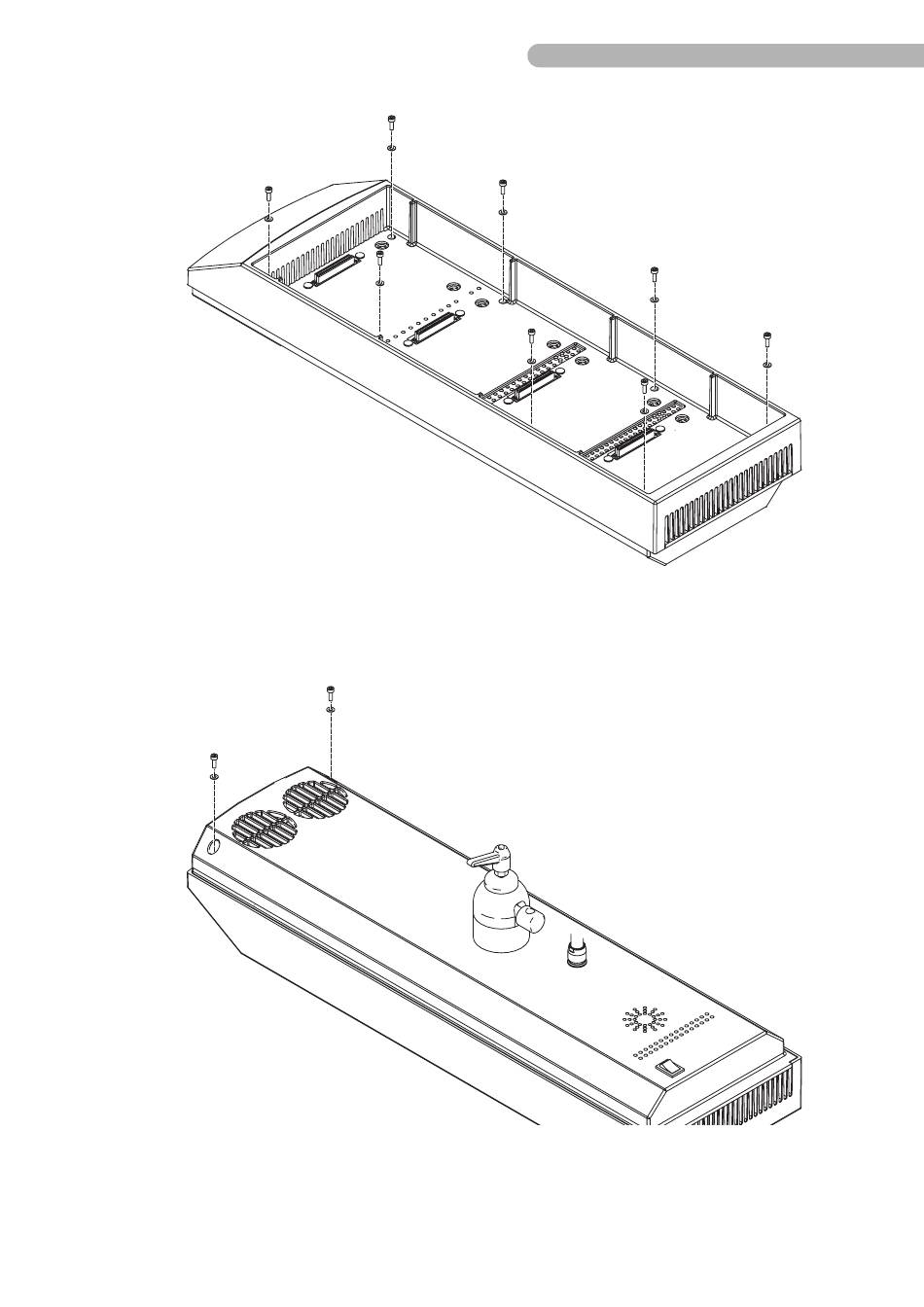

Fig. 75: Open the system panel (1)
◗
Loosen the eight socket head screws (DIN 912 M3x10 / allen key size 2.5 mm) including the washers
(DIN 125 A 3.2).
Fig. 76: Open the system panel (2)
◗
Turn the system panel over.
◗
Loosen the two socket head screws (DIN 912 M3x10 / allen key size 2.5 mm) including the washers
(DIN 125 A 3.2).
SM-5811-0000.01 ENG
S5 System • Replacing components
6.43
