Replacing the touch screen
H 5

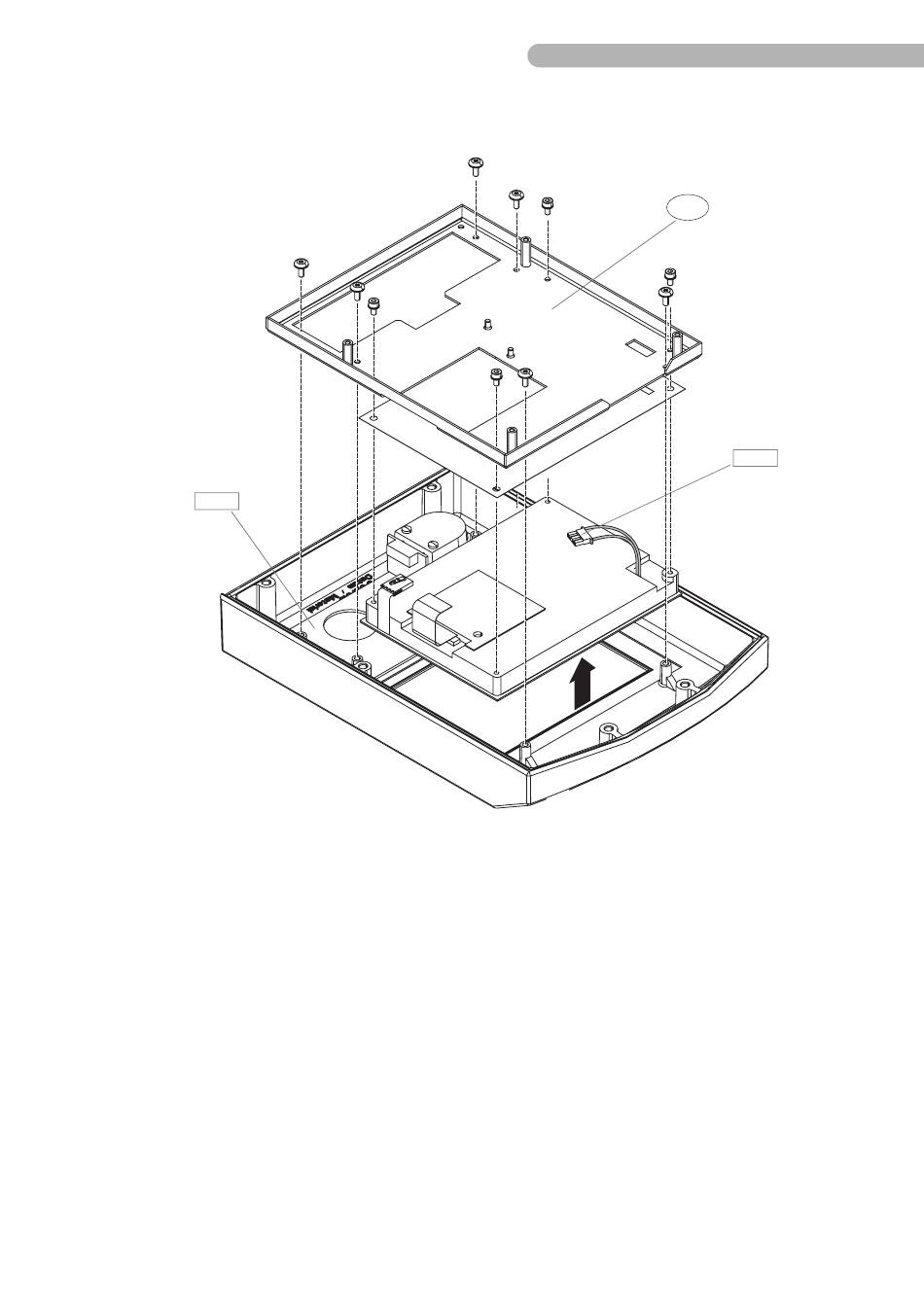

Fig. 91: Replacing the touch screen
To remove the display carrier and the keys and LEDs H 5 circuit board:
◗
Remove the PT screws (PT Z30x8 WN5411) and head socket screws (DIN 912 M3x6) from the display
carrier.
◗
Carefully lift off the display carrier.Take care to avoid damaging the cable of the LCD connection H 3
or pulling out the plug.
No further dismantling of the touch screen is planned.
SM-5811-0000.01 ENG
S5 System • Replacing components
a
H 3
6.57
