SORIN GROUP S5 System Service Instructions Manual page 91

Connection A 43 (black/– Pol/24VDC_L )
with socket head screw DIN 912 M5x8
washer DIN 127 5.3

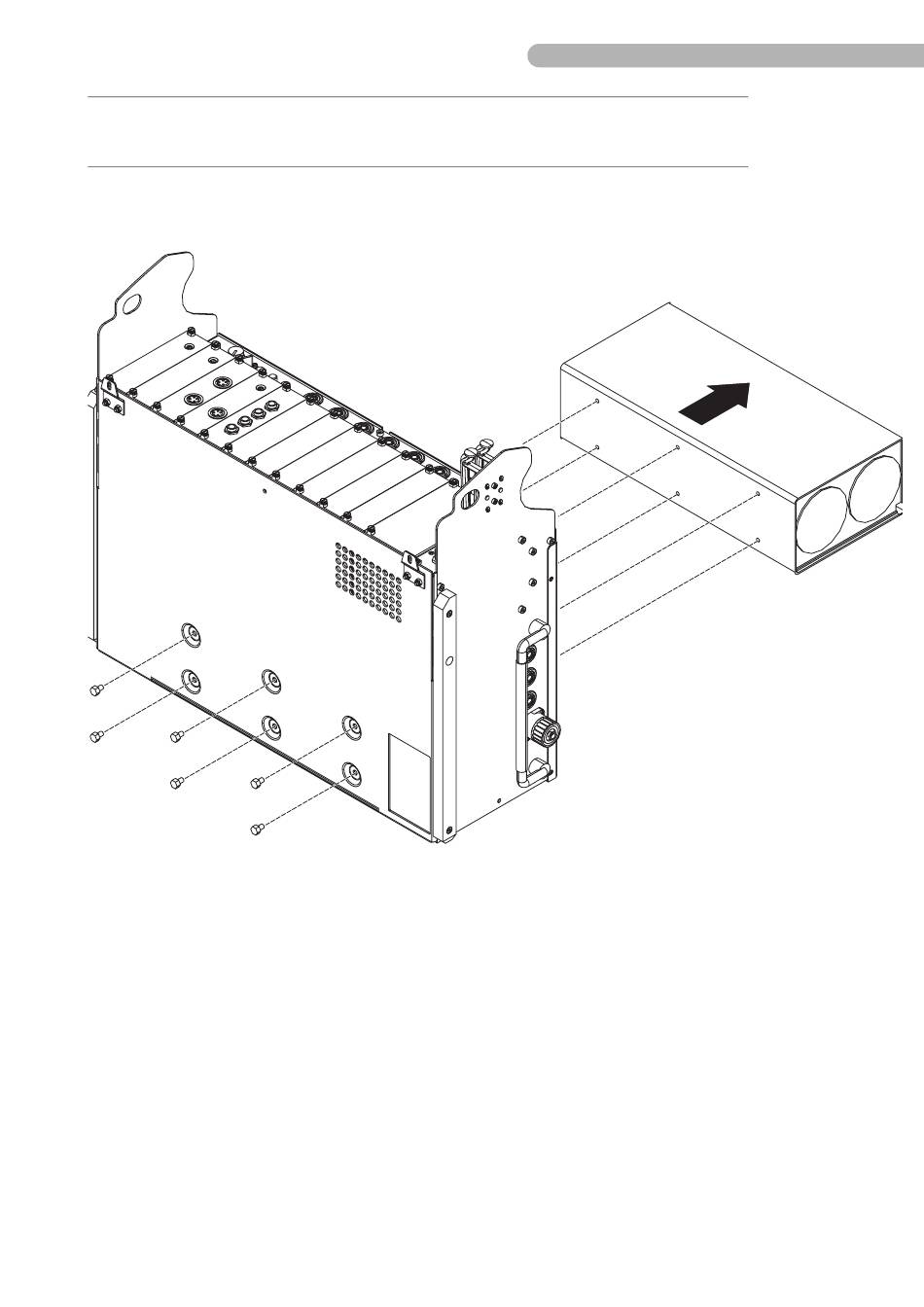

Fig. 43: Removing the switching power supply (2)
◗
Carefully turn the E/P pack over.
◗
Loosen the six screws (hexagon screw size 8 mm) on the underside of the E/P pack and pull the
power supply out.
◗
Replace the power supply.
The switching power supply (96-403-551) can be replaced only as a complete unit.
The installation and connection of the new switching power supply is carried out in the reverse order.
SM-5811-0000.01 ENG
S5 System • Replacing components
97-101-923 (cable
harness complete)
6.7
