S5 System • System description

Overview circuit board display and control module

D 10

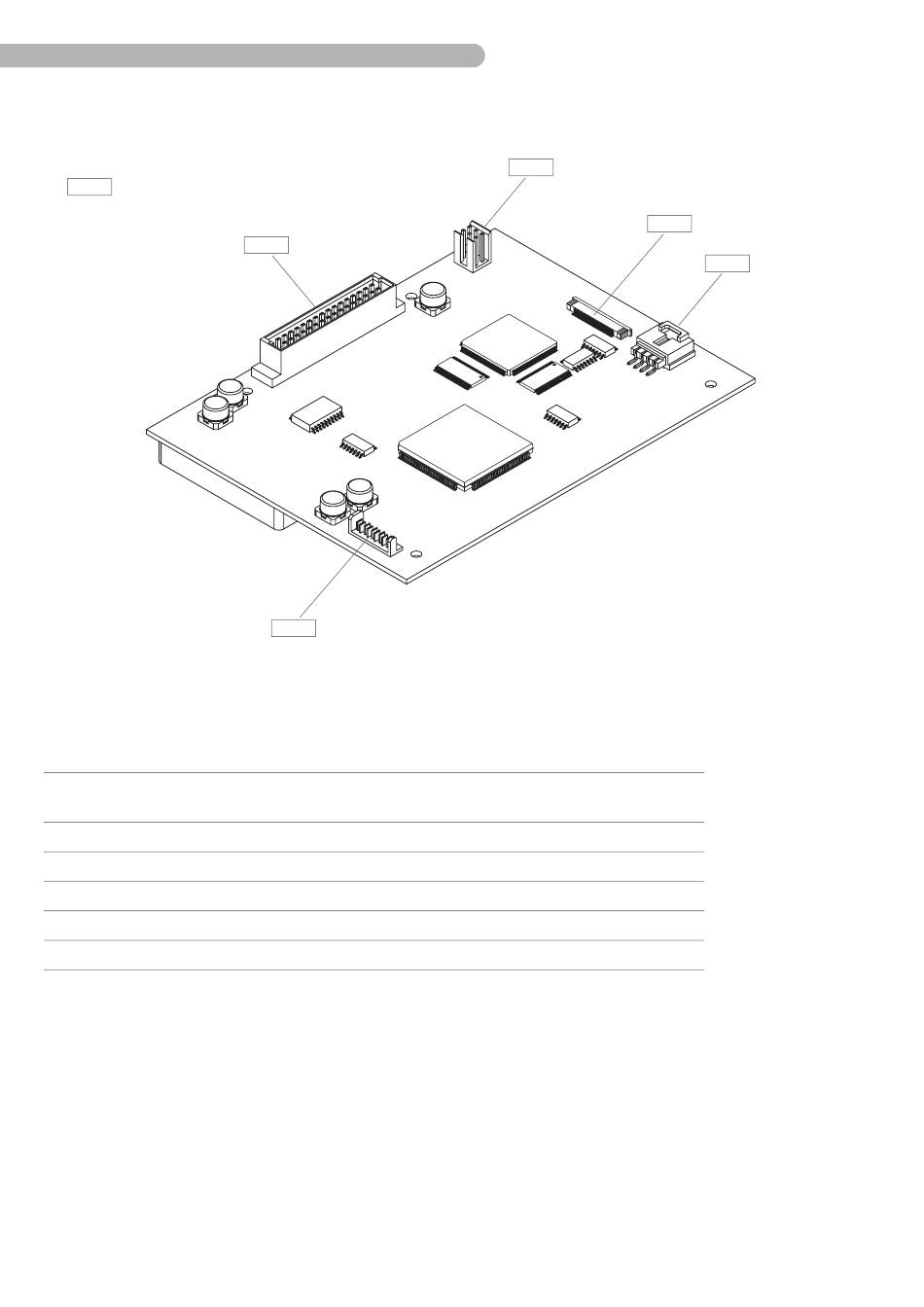

Fig. 31: Circuit board display and control module
Item Name
D 10 Circuit board display and control module
(system panel)
D 24
Socket connection of serial flash and report
D 25 Socket connection LCD
D 26 Socket connection Touchscreen
D 27
Socket connection Inverter
D 28 Socket connection backplane
3.48
D 28
D 27
D 24
Number Part Number
HDS 0407 90-305-750
CON 3
CON LCD 94-820-152
CON TS 94-820-006
CONINV 94-820-004
CON 4 96-215-122
D 25
D 26
