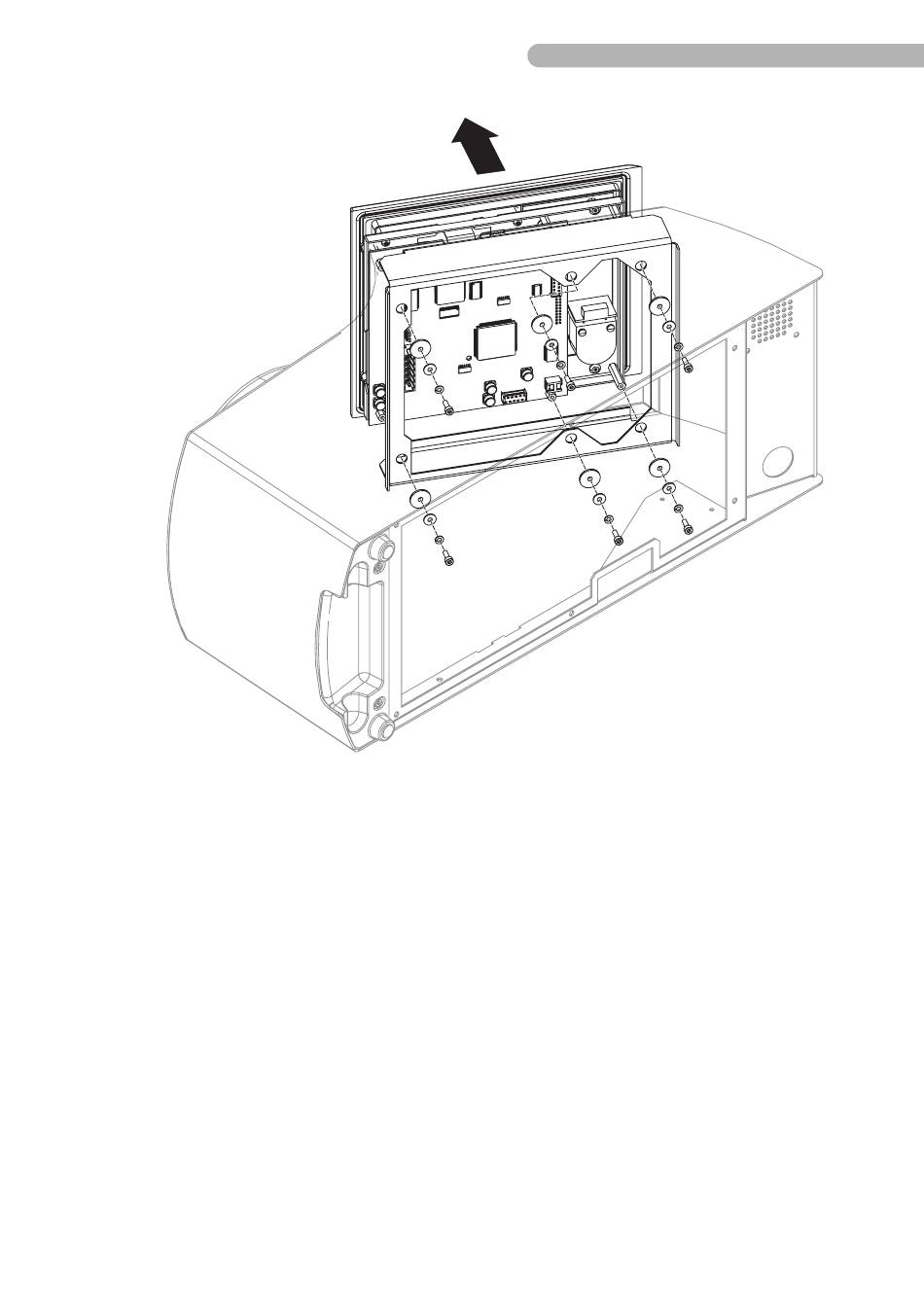

Fig. 55: Removing the pump control panel and touch screen (2)
Loosen the six socket head screws (DIN 912 M3x10 / allen key size 2.5 mm) including the washers
(DIN 9021 3.2) and the spring washers (DIN 127 B3).
Pull the touch screen assembly out of the pump housing.
SM-5811-0000.01 ENG
S5 System • Replacing components
6.21
