S5 System • Replacing components

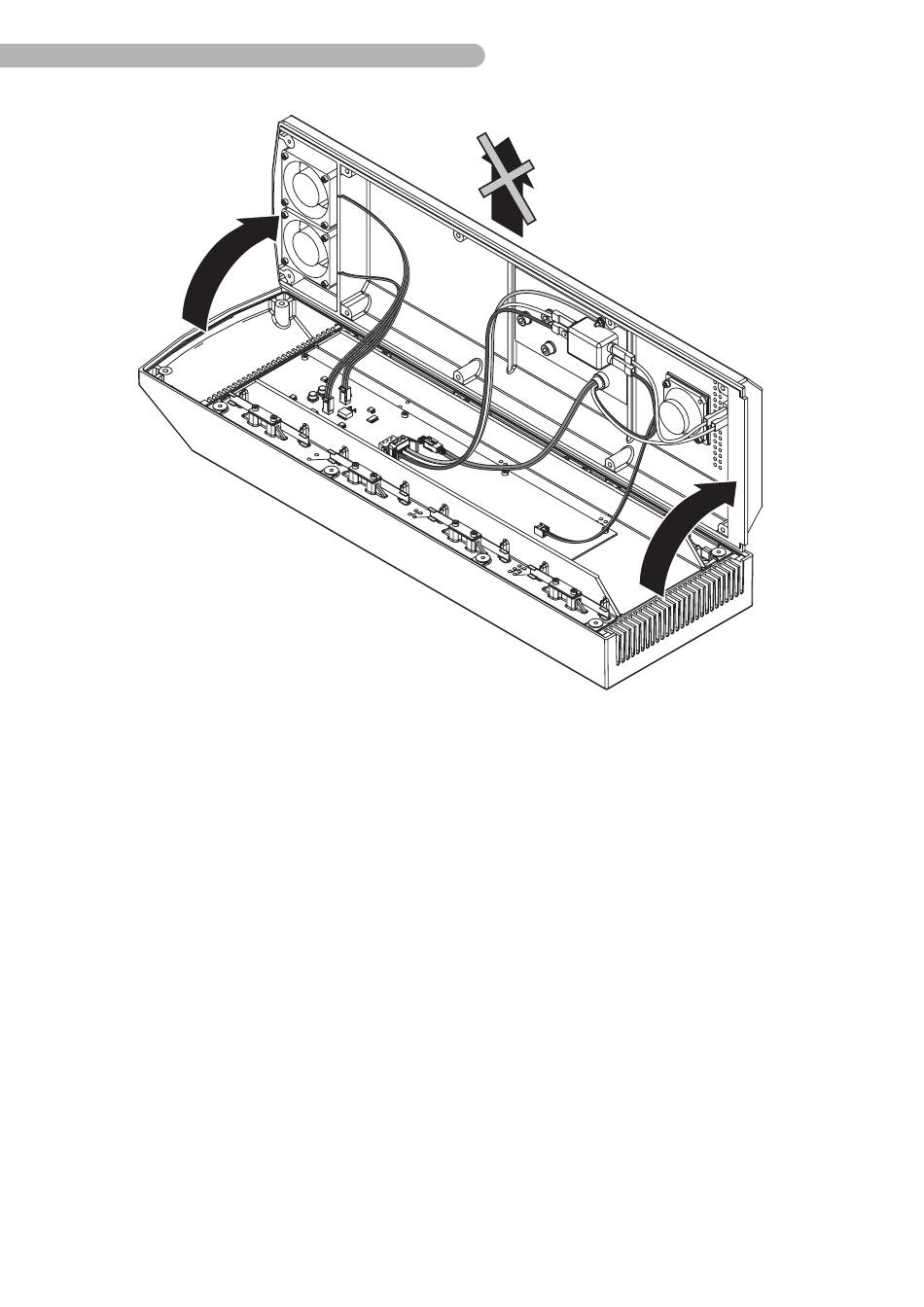

Fig. 77: Open the system panel (3)
◗
Carefully open up the rear of the housing.
Warning: The rear of the housing cannot be fully opened up completely, because the connections
between the rear of the housing an the circuit board backplane must be disconnected first!
6.44
SM-5811-0000.01 ENG
