SORIN GROUP S5 System Service Instructions Manual page 58

S5 System • System description
Circuit board battery switch
A 6
A 37
A 44
A 42
A 43
A 40

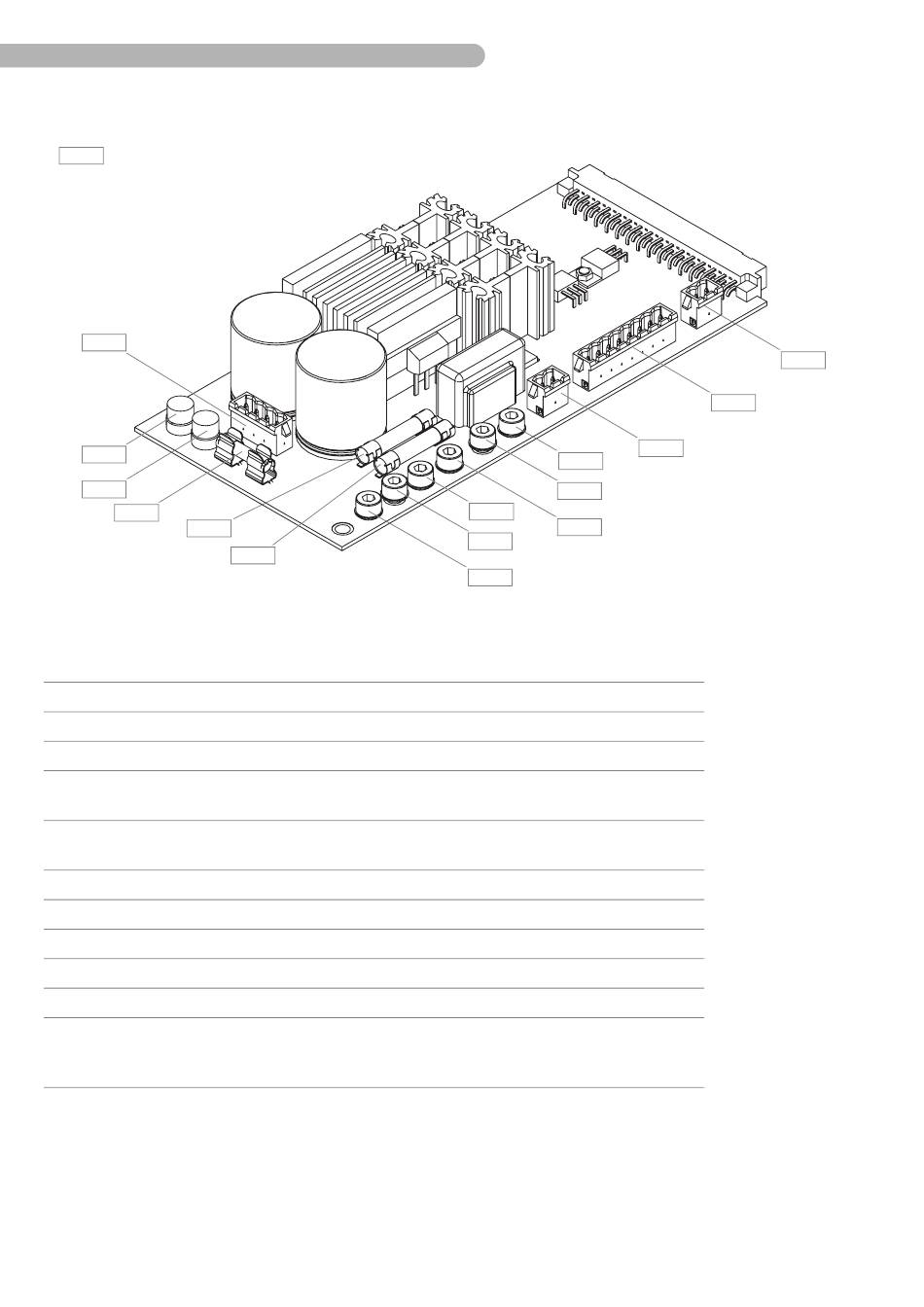

Fig. 23: Circuit board battery switch
Item Name
A 6
Circuit board battery switch
A 36 Socket connection circuit breaker sensor modules
A 37 Socket connection discharger
A 38
Socket connection switching power supply
(Input voltage charging device)
A 39 Socket connection switching power supply
(power supply diagnosis)
A 40 Fuse 20 A T
A 41 Fuse 20 A T
A 42 Fuse battery H1 (start without mains power) 3.15 A T
A 43 Fuse battery discharger 10 A T
A 44 Fuse battery H2 (Supply emergency patch-in) 1 A T
A 45 Screwed terminal power supply (+ terminal)
with socket head screw DIN 912 M5x8
washer DIN 127 5.3
A 46 Screwed terminal bus bar (+ terminal)
with socket head screw DIN 912 M5x8
washer DIN 127 5.3
3.38
A 41
A 45
A 46
A 48
A 47
A 49
A 50
Number Part Number
HUS 0318 90-305-550
CON 1
CON 2
CON 6
CON 7
F1 93-511-530
F2 93-511-530
F3 93-510-044
F4 93-511-030
F5 93-510-039
G2
71-115-025
71-120-528
G4
71-115-025
71-120-528
A 36
A 39
A 38
