Replacing the circuit board Inverter

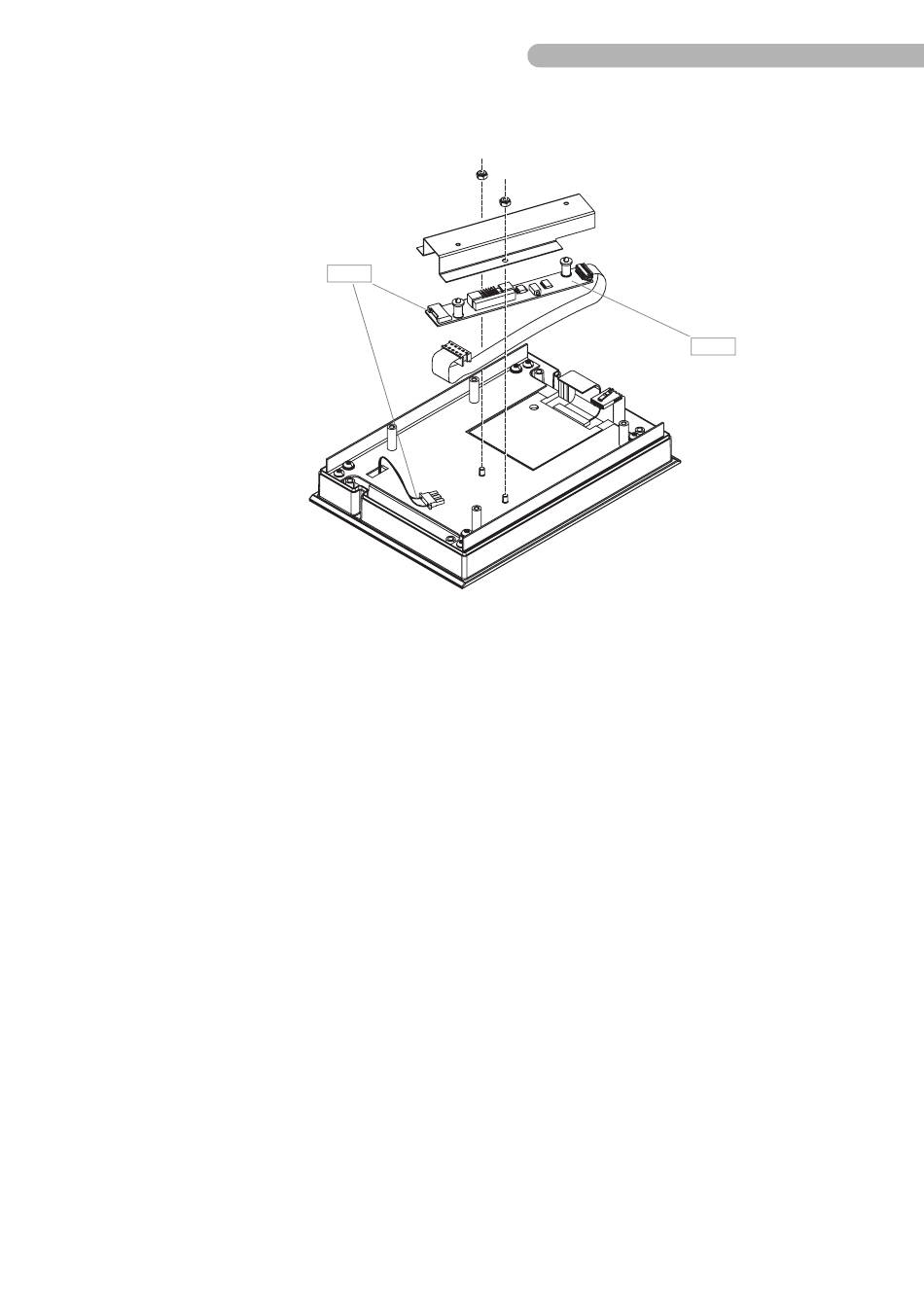

Abb. 83: Replacing the circuit board Inverter
To remove the circuit board Inverter D 21:
◗
Loosen the two self-locking nuts (DIN 985 M3 WAF 5.5) from the cover.
◗
Loosen the connection LCD Inverter D 31.
◗
Carefully lift up the circuit board Inverter D 21.
Install the circuit board in the reverse order.
