SORIN GROUP S5 System Service Instructions Manual page 72

S5 System • System description
G 6
G 18
G 20
G 19

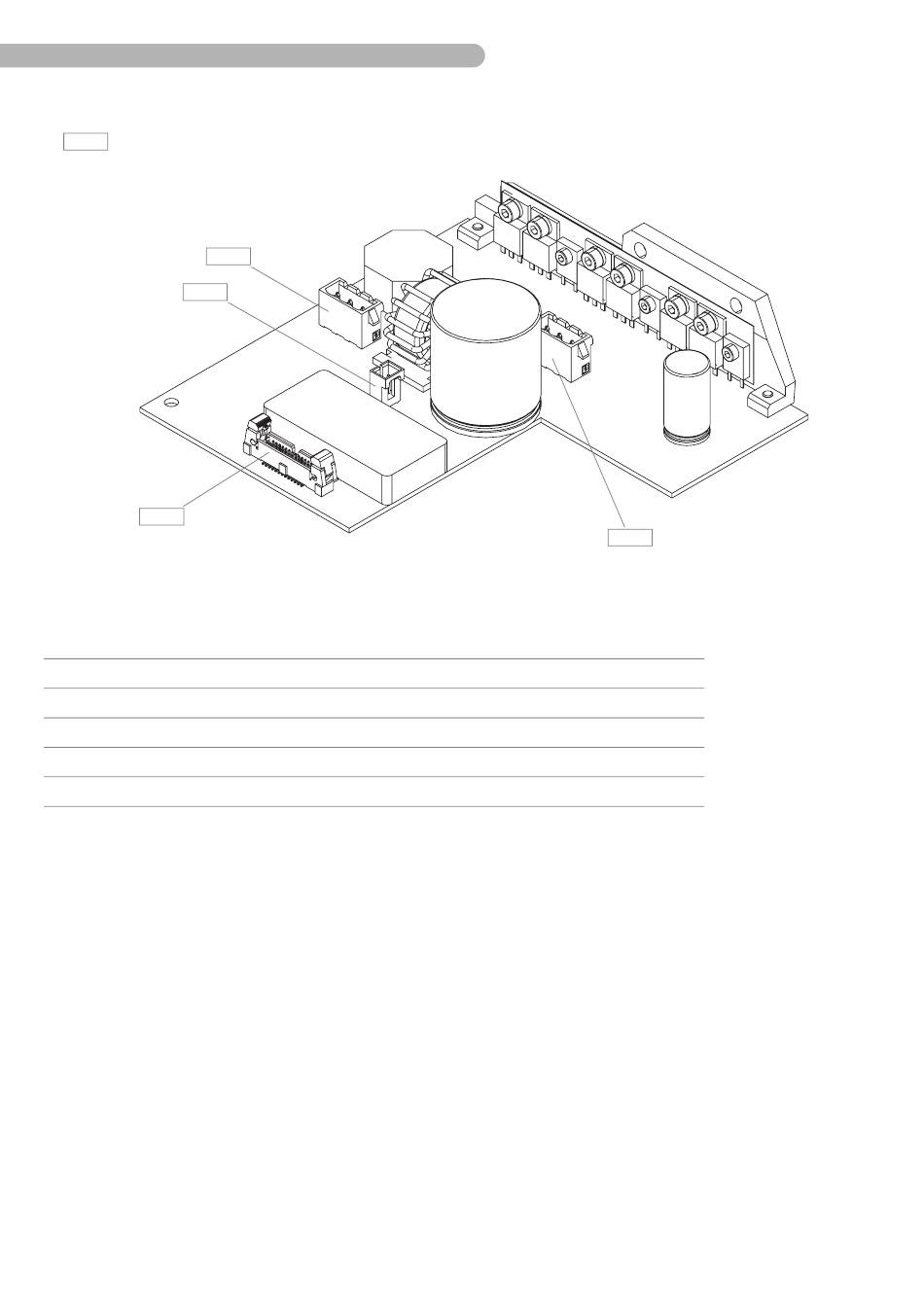

Fig. 35: Circuit board motor power amplifier MRP85
Item Name
G 6
Circuit board motor power amplifier MRP85
G 17 Socket connection pump head
G 18 Socket connection S5 control panel mast roller pump CON 2
G 19 Socket connection circuit board motor controller G 5 CON 3
G 20 Socket connection fan
3.52
Number Part Number
HME 0402 90-305-700
CON 1
CON 4
G 17
SM-5811-0000.01 ENG
