6.2 Pumps

As the pumps of the S5 System are of identical construction to some degree, we have illustrated the
following descriptions with only one figure in some cases. Unless otherwise specified, the procedure for
the installation of the pumps is identical. In the interest of clarity, cables and connectors have been
omitted in some of the figures. Always mark the plugs and cables to avoid mistakes in subsequent
assembly.
Please note that it is essential that ESD protective safety measures are taken when working with
components susceptible to ESD. When removing or fitting circuit boards or components susceptible to
ESD, ensure that you use ESD mats, wrist straps, or similar.
6.2.1

Opening the pump housing and removing the pump head

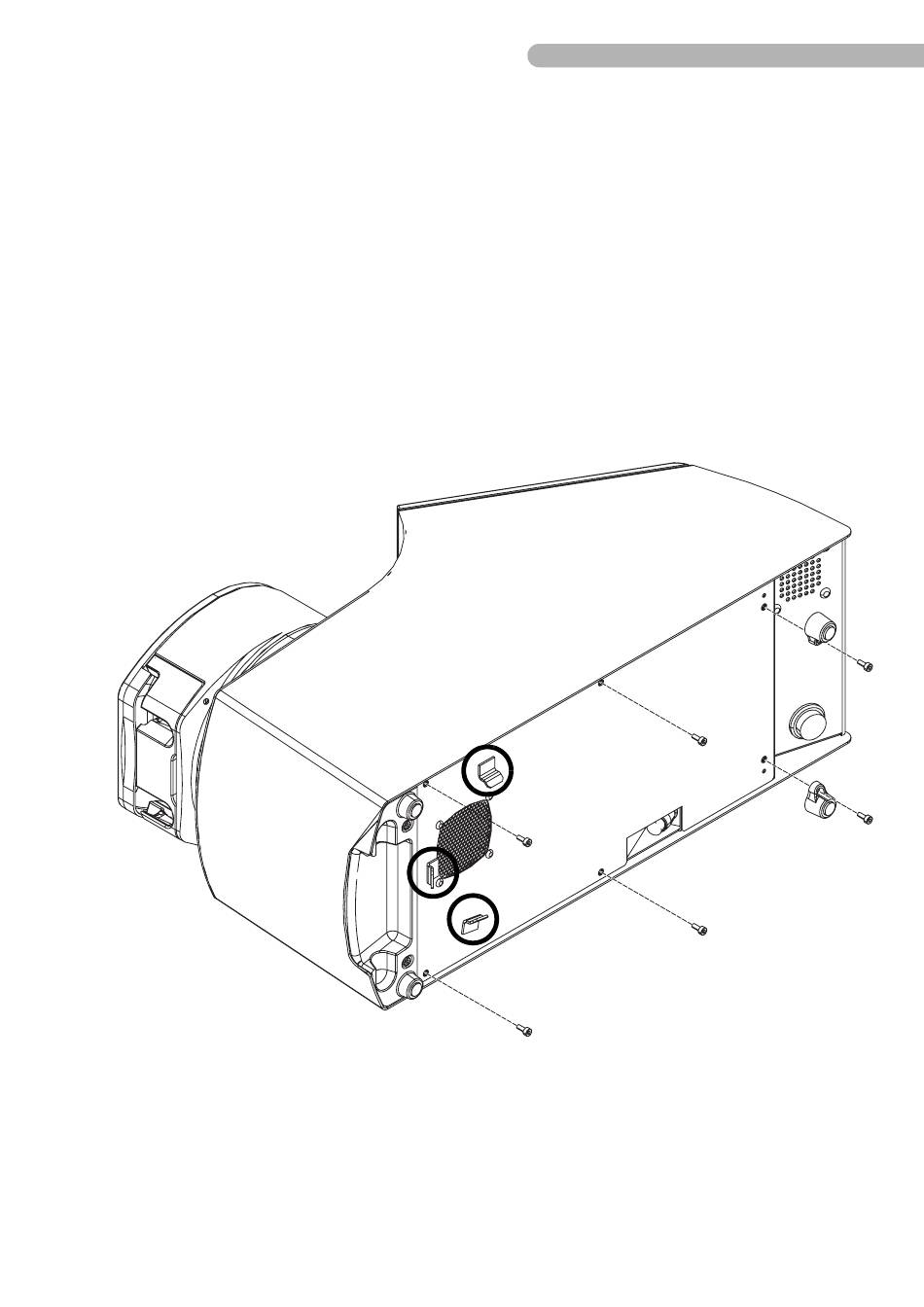

Fig. 47: Opening the pump housing
◗
Carefully lay the pump on its side.
◗
Pull the connection cable from the retaining brackets on the base plate.
◗
Loosen the six socket head screws shown above (DIN 912 M3x8 / allen key size 2.5 mm) on the base
plate including the front rubber feet.
SM-5811-0000.01 ENG
S5 System • Replacing components
!
6.11
