S5 System • Replacing components
G 14
G 15
G 5
G 12

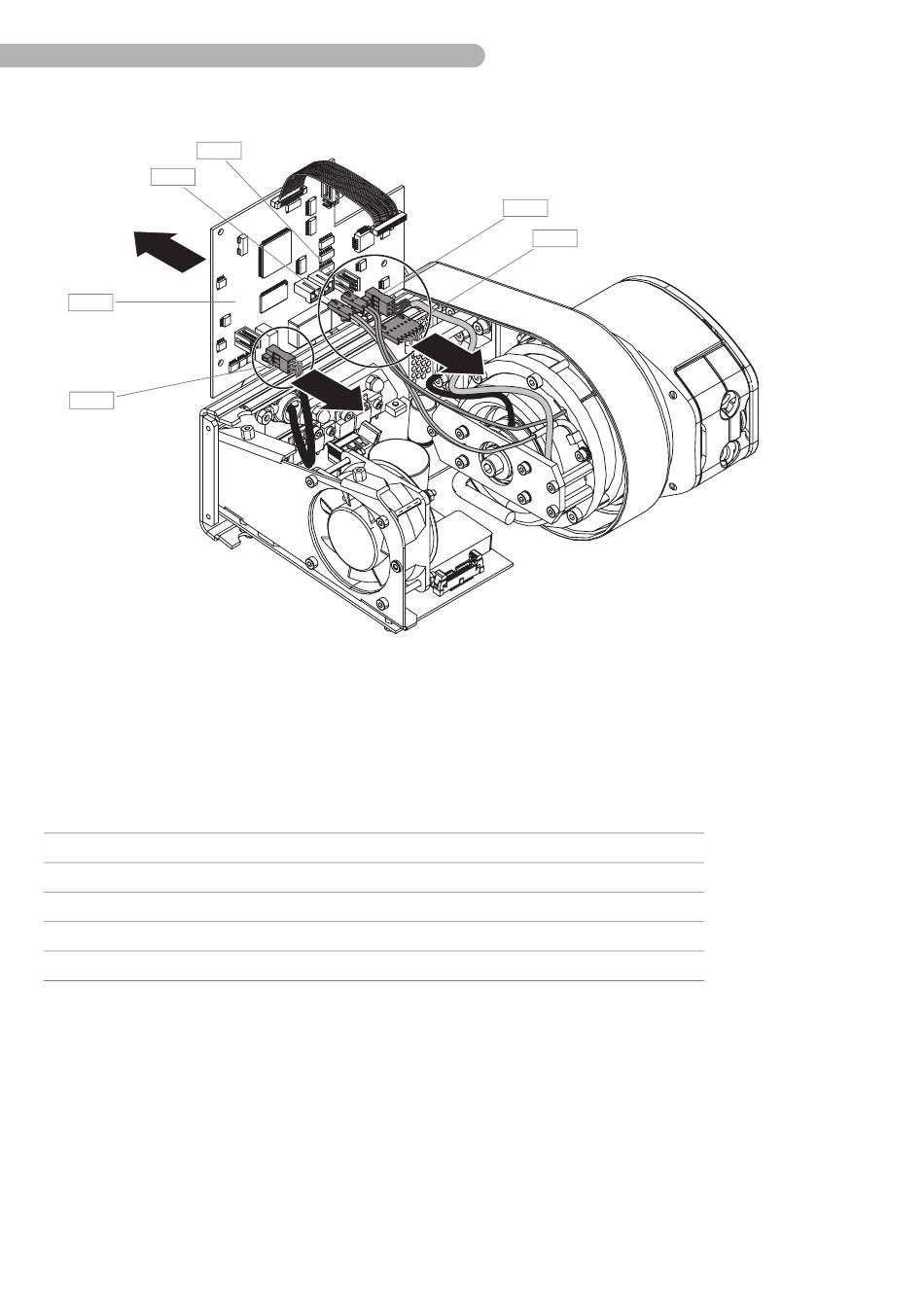

Fig. 68: Replacing the circuit board HMR 0403 (2)
◗
Lift up the circuit board Motor controller MRP85 G 5.
◗
Disconnect the following connectors from the circuit board G 5:
Item Name
Connection S5 control panel mast roller pump G 12
Connection Hall effect sensor G 13
Connection control cable on pump G 14
Connection cover pump head G 14
Connection temperature G 15
◗
Replace the circuit board Motor controller MRP85 G 5.
6.36
G 13
G 14
Number Part number
CON 2
CON 3
CON 4
CON 6
CON 7
SM-5811-0000.01 ENG
