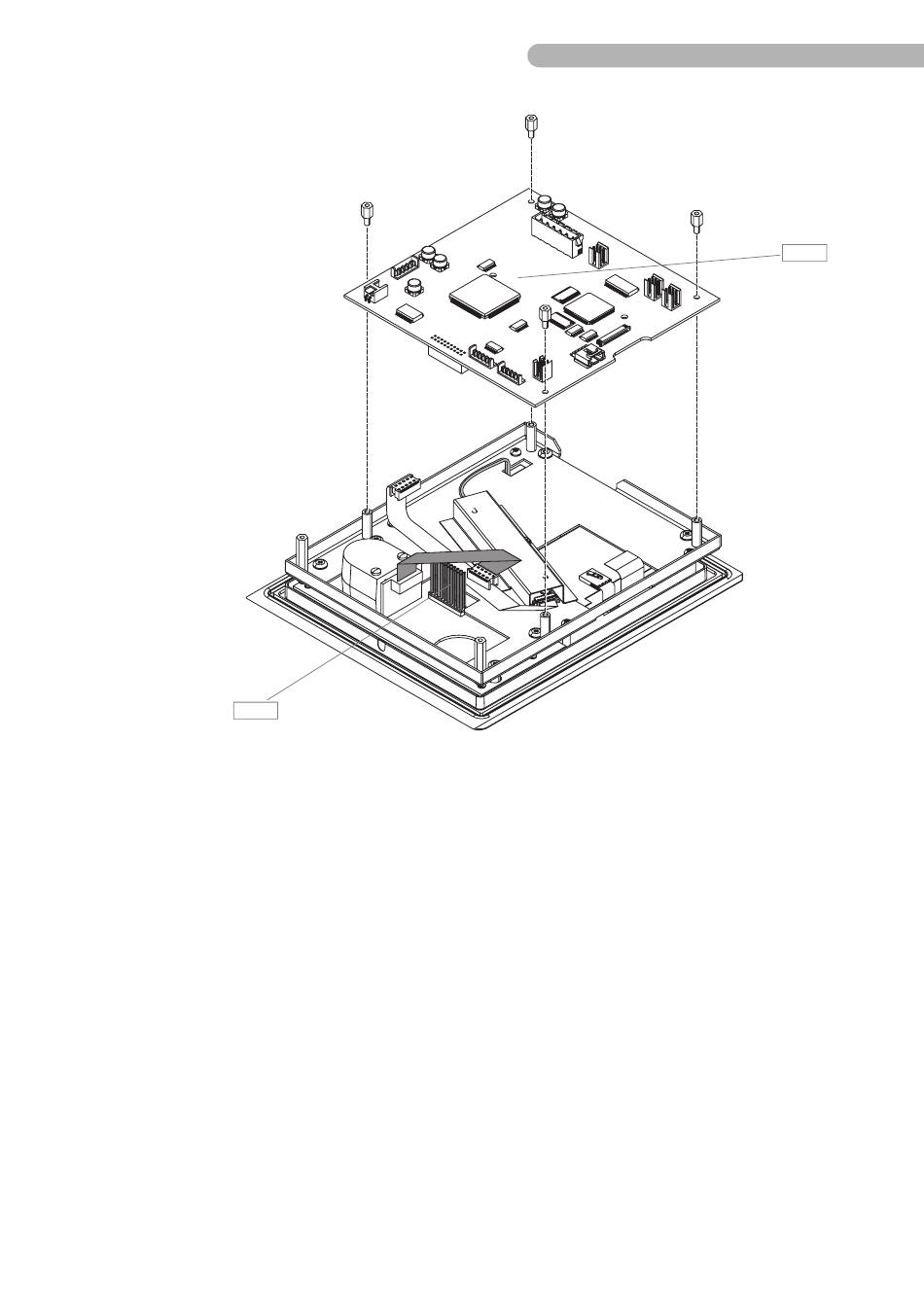

Fig. 57: Removing the display and control module (2)
◗
Loosen the four distance bolts (internal/external thread M3 x 15) from the circuit board B 4.
◗
Take care to lift the circuit board straight upwards to avoid bending the contact pins B 46.
SM-5811-0000.01 ENG
S5 System • Replacing components
B 4
6.23
