S5 System • Replacing components

6.5 System Panel

As most of the S5 system panels are of identical construction, we have illustrated the following
descriptions with only one figure in some cases. Unless otherwise specified, the procedure for the
installation of the system panels is identical. In the interest of clarity, cables and connectors have been
omitted in some of the figures. Always mark the plugs and cables to avoid mistakes in subsequent
assembly.
Please note that it is essential that ESD protective safety measures are taken when working with
components susceptible to ESD. When removing or fitting circuit boards or components susceptible to
ESD, ensure that you use ESD mats, wrist straps, or similar.
6.5.1

Opening the system panel

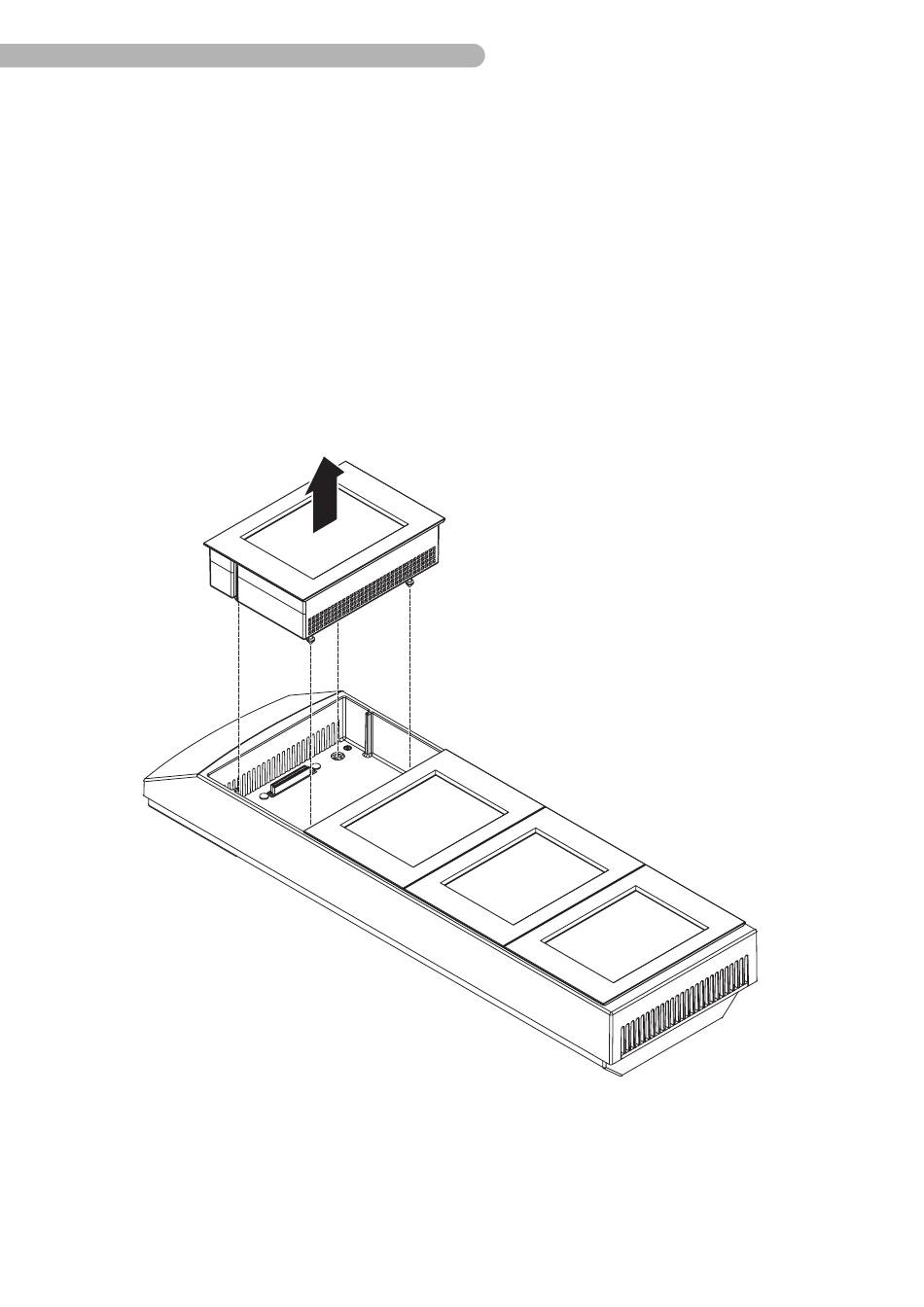

Fig. 74: Pull the display and control modules out
◗
Pull the four display and control modules out vertically of the system panel housing.
