Overview – Switching power supply
A 19

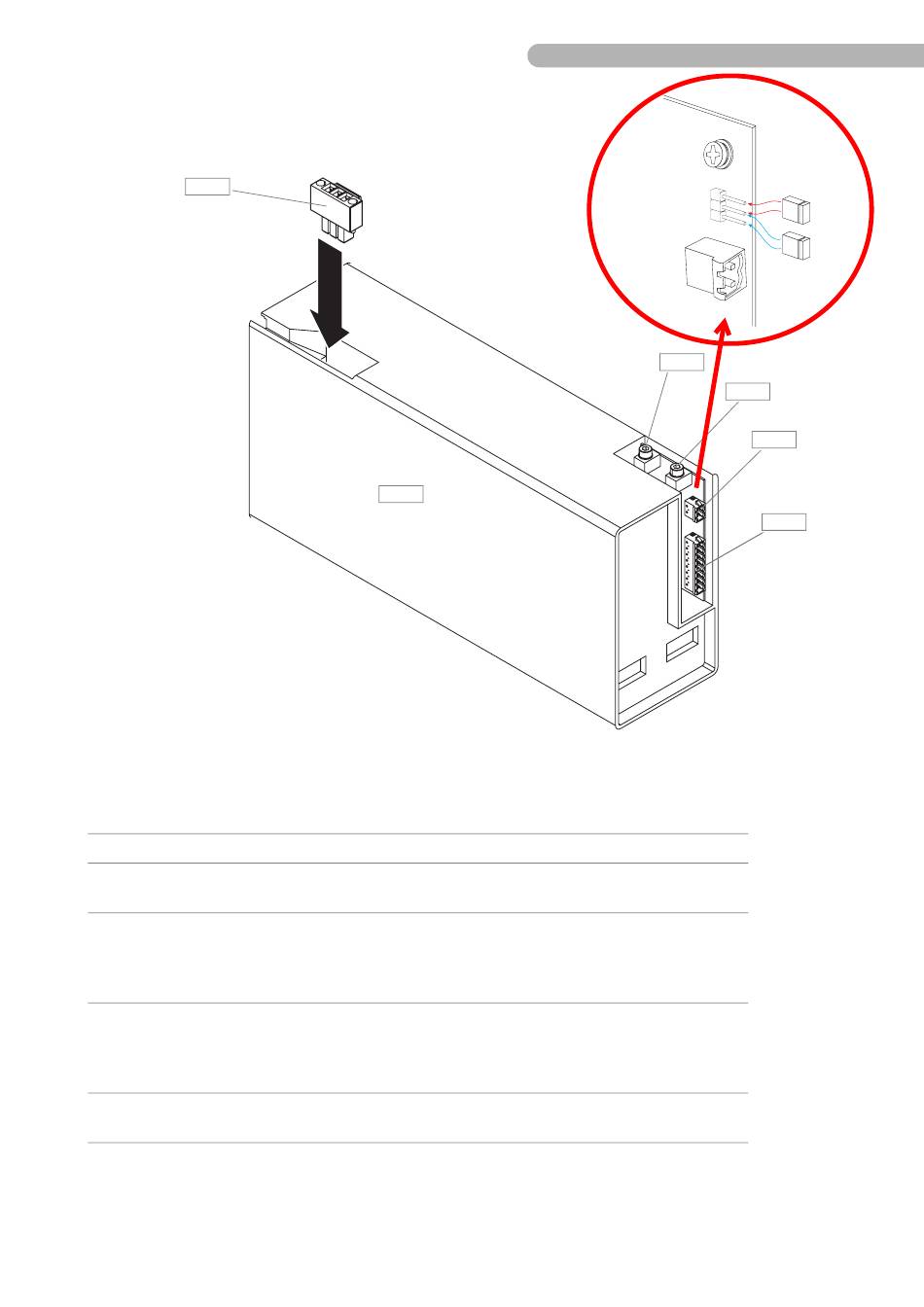

Fig. 12: Switching power supply
Item Name
A 18 Switching power supply
A 19 Plug for connection on circuit board Backplane A 31
(shown here for clarity)
A 20 Screwed connector for connection on circuit board
Battery switch A 6 (G9)
with socket head screw DIN 912 M5x10
washer DIN 127 5.3
A 21 Screwed connector for connection on circuit board
Battery switch A 6 (G2)
with socket head screw DIN 912 M5x10
washer DIN 127 5.3
A 22 Socket for connection circuit board
Battery switch A 38
A 23 Socket for connection circuit board
Battery switch A 39
SM-5811-0000.01 ENG
A 18
Number
HLM-NT-S5
S5 System • System description
A 20
A 21
A 22
A 23
Part Number
96-403-551
71-115-026
71-120-528
71-115-026
71-120-528
S5
S3
3.21
