S5 System • Replacing components
6.2.3

Replacing the line filter on the pumps

When removing the line filter, the housing base plate must be removed first (see Page 6.11).

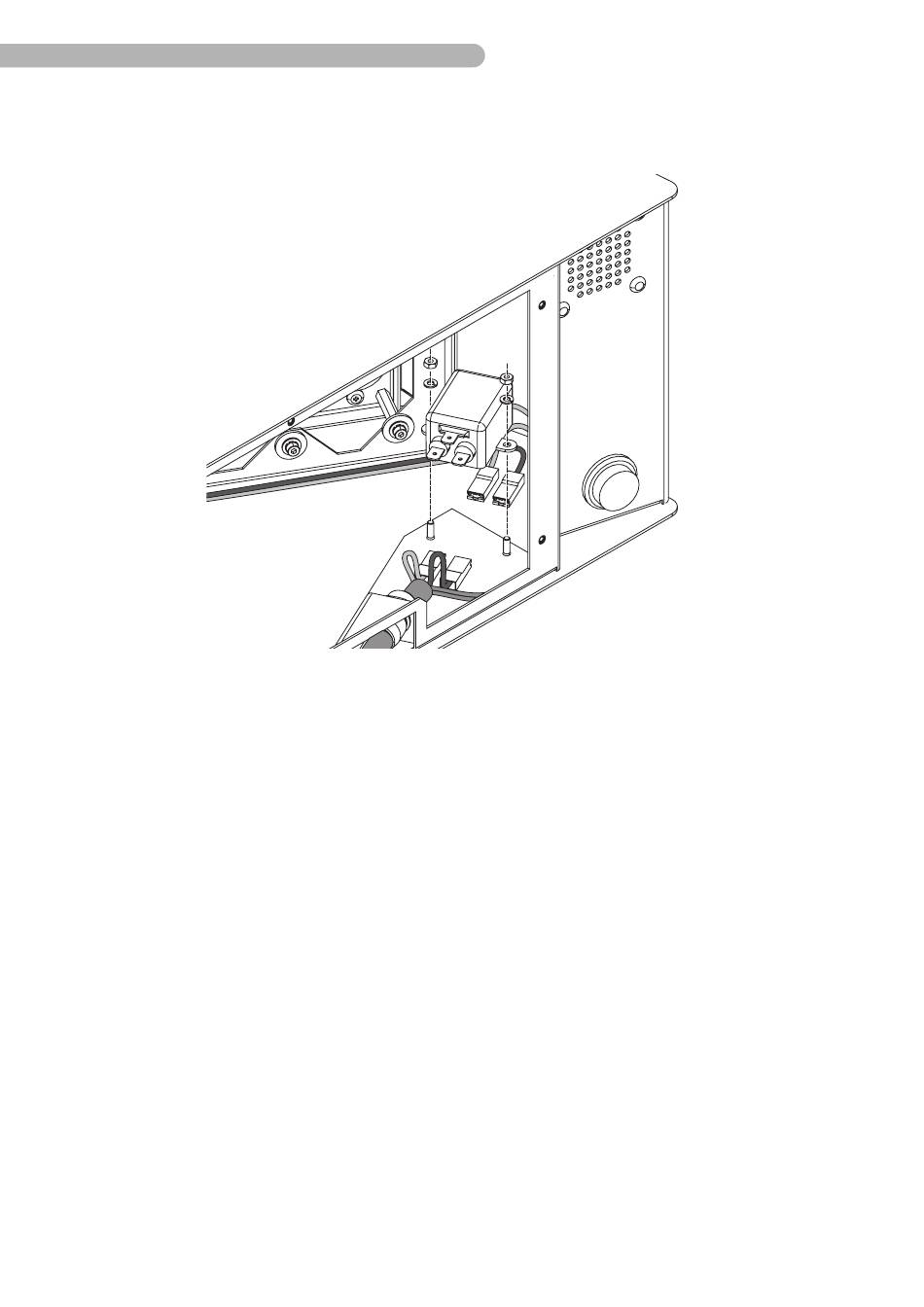

Fig. 61: Removing the line filter
◗
Loosen the two nuts (DIN 934 M3 WAF 5.5 mm) on the line filter including the spring washers (DIN
127, B 3).
◗
Pull the four connectors from the line filter.
Install the new line filter in the reverse order.
6.28 SM-5811-0000.01 ENG
