S5 System • Replacing components

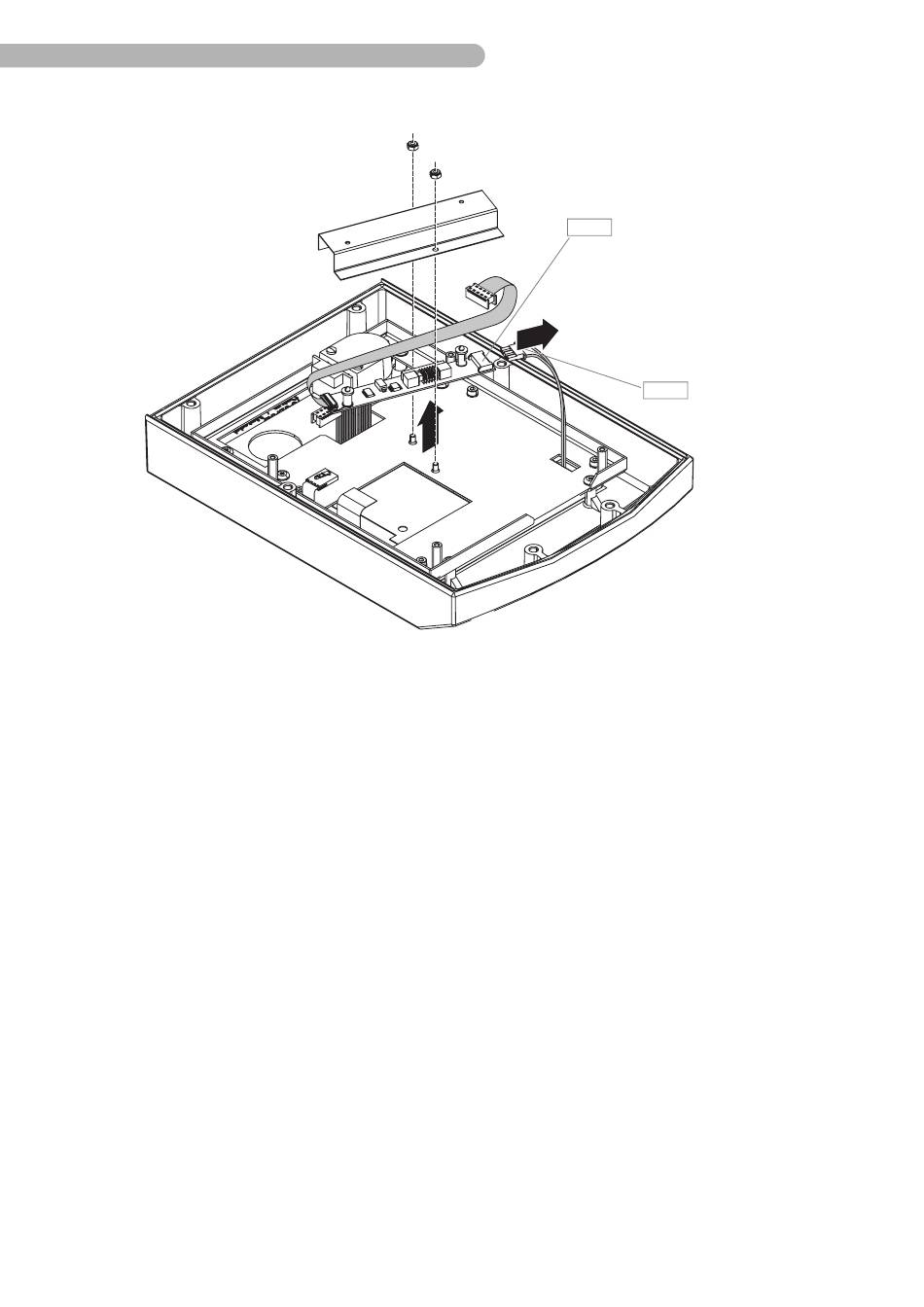

Fig. 90: Disconnecting the control panel (3)
To remove the circuit board inverter H 7:
◗
Detach both self-locking nuts (DIN 985 M3 AF 5.5) from the cover.
◗
Loosen the connection LCD B 42 and lift the circuit board up.
6.56
H 7
H 24
SM-5811-0000.01 ENG
