S5 System • System description
3.2.4

Overview of the electronic / and power pack

58
46 47
60 61 62

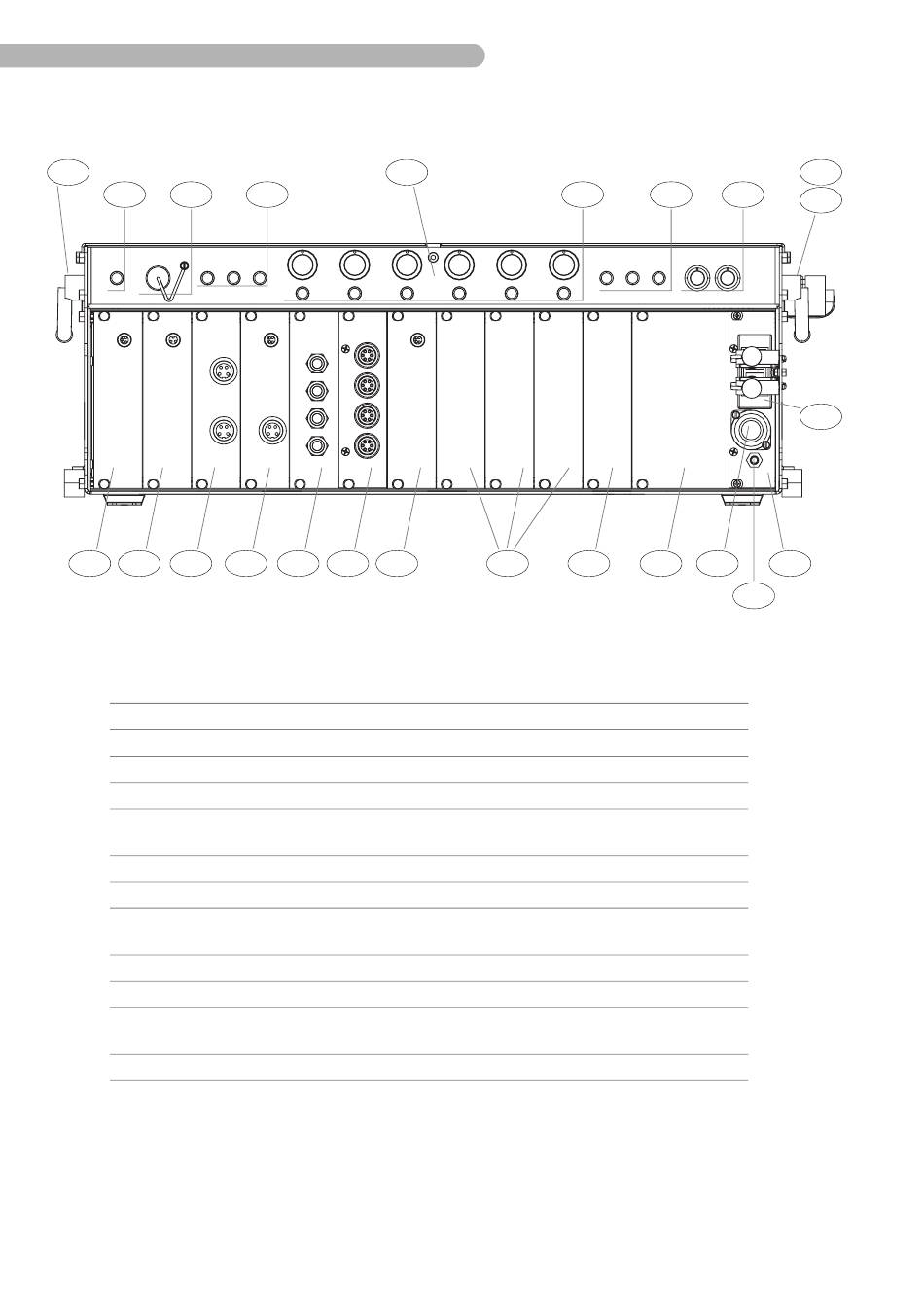

Fig. 7: E/P pack
Item name
45 System connection panel
46 Circuit breaker F13
47 Connection for S5 battery discharger
48 Circuit breaker F10 - F12
49 System slots 1-6
with circuit breakers F1 - F6
50 Circuit breaker F7 - F9
51 CAN connections 1 + 2
52 S5 power supply connection module
with main switch 4
53 Potential equalisation point
54 Socket for power cable
55 S5 UPS module
56 S5 DC/DC module
3.10
45
48
63 64 65 66
Operation
Automatic circuit breaker 10 A for the sensor modules
Automatic circuit breaker 10 A for 58
Connecting pumps and devices (e.g. system panel)
Automatic circuit breaker 10 A for 57
Connecting additional equipment
Connection of the potential equalisation cable
Connecting the power cable
Module for internal monitoring of the emergency power
supply (UPS)
Module for internal power supply for the sensor modules
49 50
67 56 55
57
51
59
4
54 52
53
