SORIN GROUP S5 System Service Instructions Manual page 48

S5 System • System description
System panel (5 pos.)
D 13
D 8
D 9
D 10

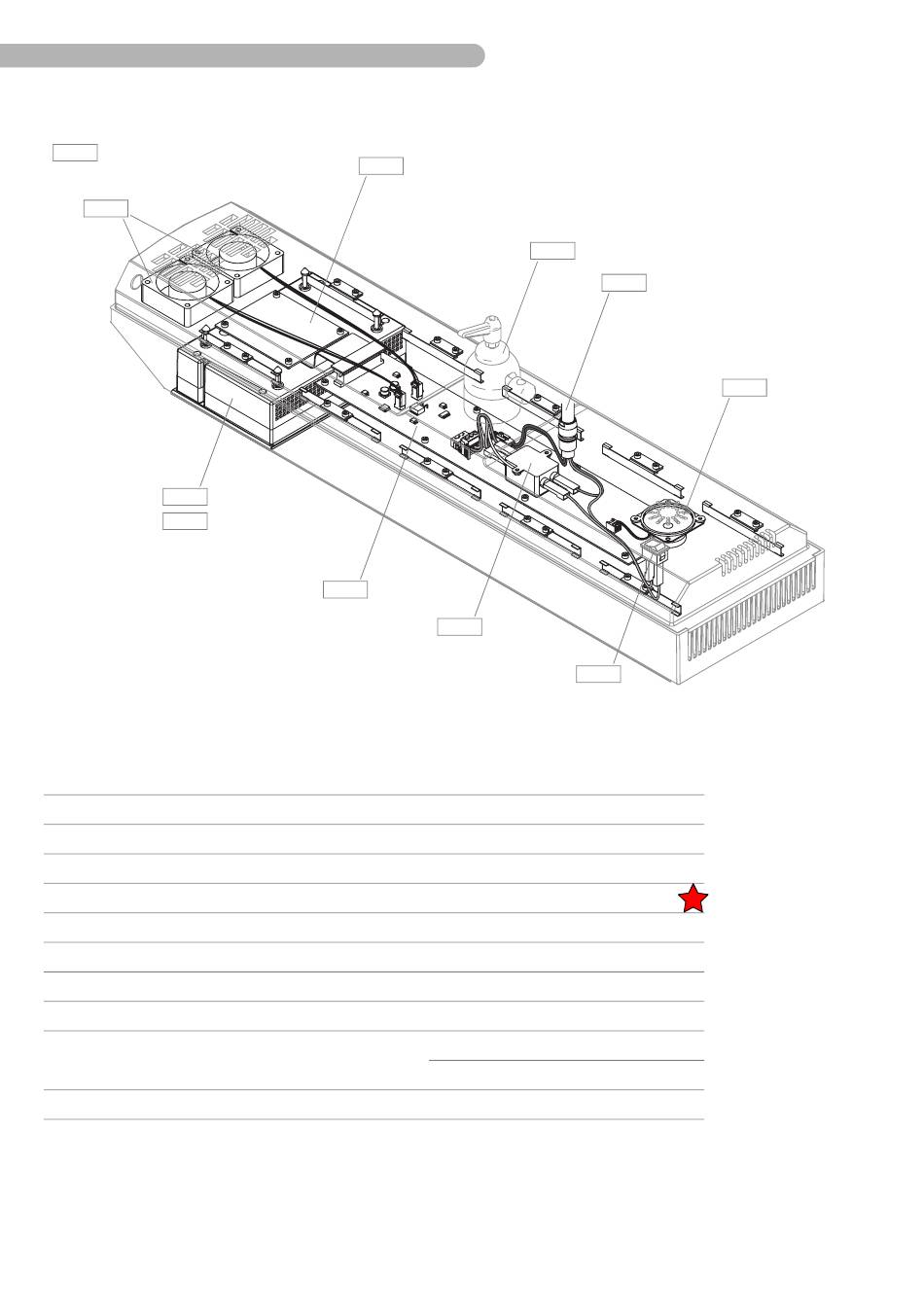

Fig. 17: Assembly overview – System panel (5 pos.)
Item Name
D 13 S5 system panel, 5 pos.
D 2 Backplane system panel (identical to 4pos.)
D 3 Mast joint holder (not shown here)
D 4 Connetion cable
D 5 Toggle switch 1-pole
D 6 Line filter
D 7 Speaker
D 8 Fan - Smartcooler
D 9 S5 display and control module with
D 10 Circuit board display and control module
D 14 Adapter Backplane board
3.28
D 14
D 2
D 6
Number
HDB 0406
Typ 1801
FN332Z-10-05
LFX1460E
HDS 0407
HDA 0406
D 3
D 4
D 5
Part Number
28-95-01
90-305-740
55-90-56
97-103-625
96-121-209
96-250-042
97-103-669
96-406-030
28-95-10
90-305-750
90-305-890
SM-5811-0000.01 ENG
D 7
