3.3.6 Assembly overview – S5 MRP 150
F 3
F 2
F 1

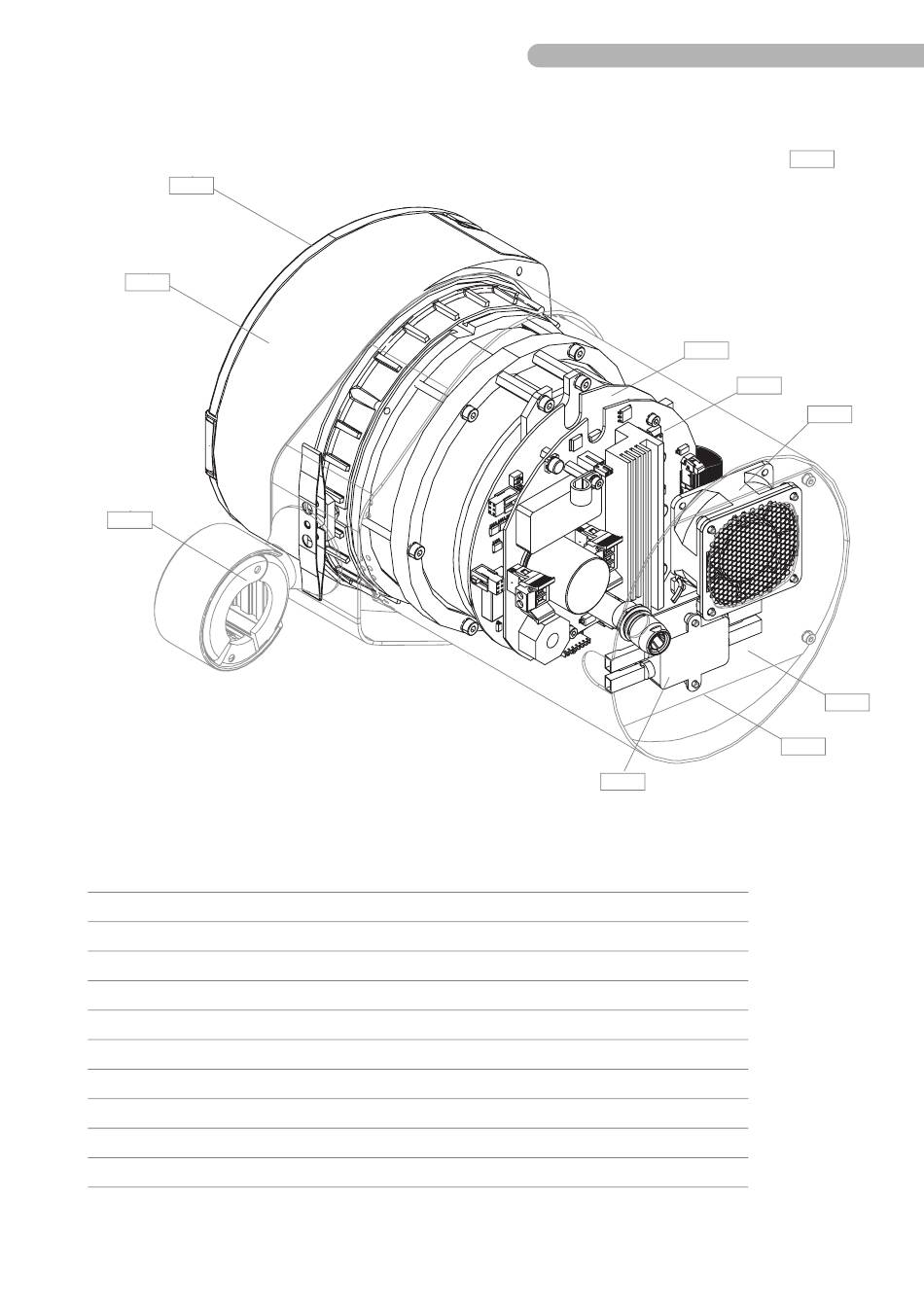

Fig. 19: Assembly overview S5 MRP 150
Item Name
F S5 MRP 150 (complete)
F 1 Holder MRP 150
F 2 Pump head MRP150 (complete)
F 3 Pump cover MRP150 (complete)
F 4 Motor controller
F 5 Motor power amplifier
F 6
Fan
F 7 Line filter
F 8 Connection cable control panel MRP 150/85
F 9
Base plate MRP 150
SM-5811-0000.01 ENG
F 7
Number Part Number
10-81-00
10-88-69
10-81-00
10-81-75
HMS 0409 90-305-770
HMF 0408 90-305-760
Pabst 614, 24V 96-406-031
FN332Z-10-05 96-401-012
97-102-621
10-88-10
S5 System • System description
F
F 4
F 5
F 6
F 9
F 8
???
???
3.31
