SORIN GROUP S5 System Service Instructions Manual page 136

S5 System • Replacing components
H 12

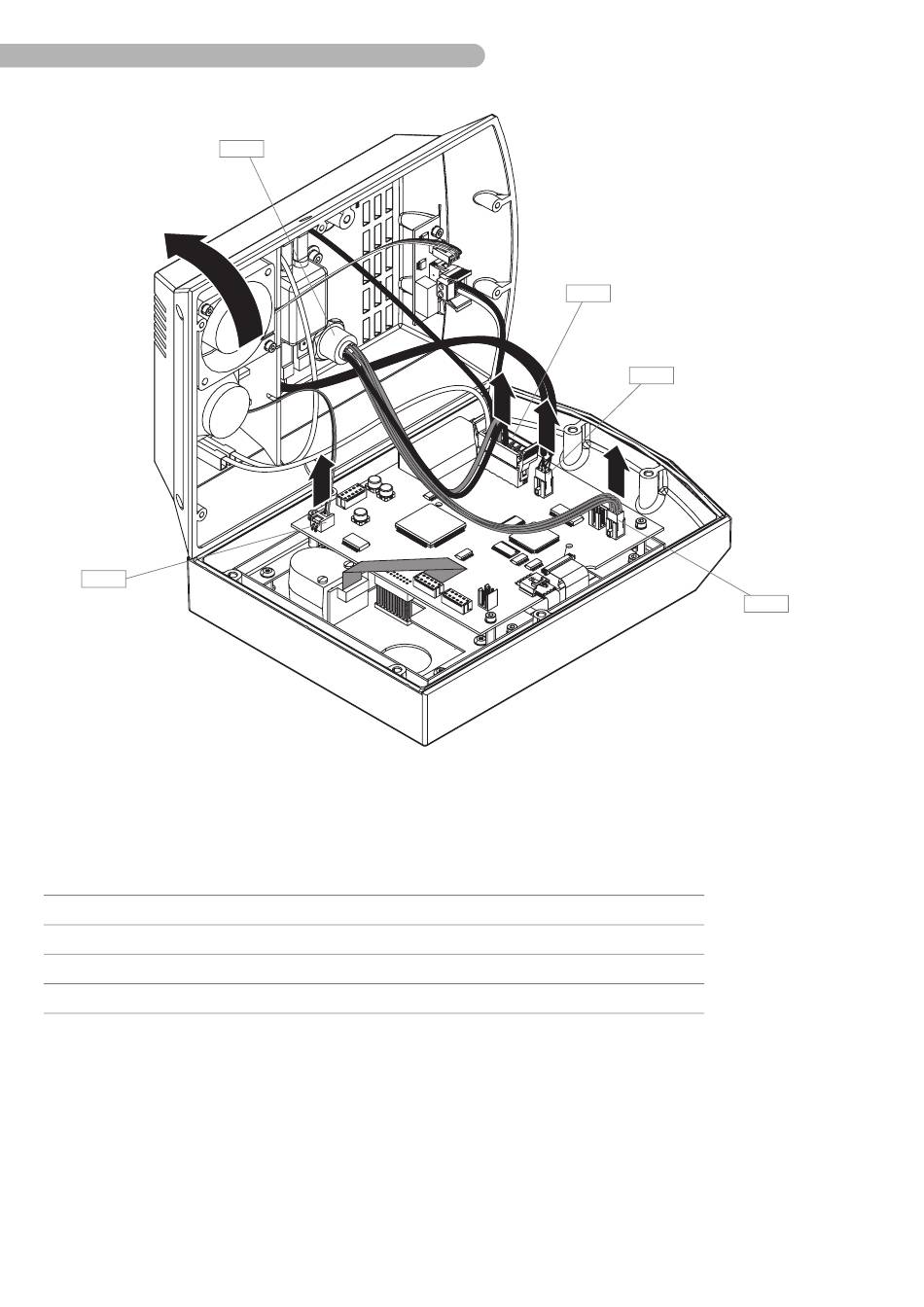

Fig. 86: Opening the control panel (2)
◗
Disconnect the following connectors from the circuit board computer board H 4 :
Item Name
H 18 Connection power supply
H 19 Connection CAN bus
H 20 Socket connection mast roller pump H 8
Connection loudspeaker H 12
◗
Open the back of the housing fully.
6.52
H 8
H 18
Number Part number
CONCAN
CONPA
CON 1
H 19
H 20
SM-5811-0000.01 ENG
