S5 System • Replacing components

Replacing fuses (Circuit board battery switch)

A 6
A 39
A 37
A 38
A 35

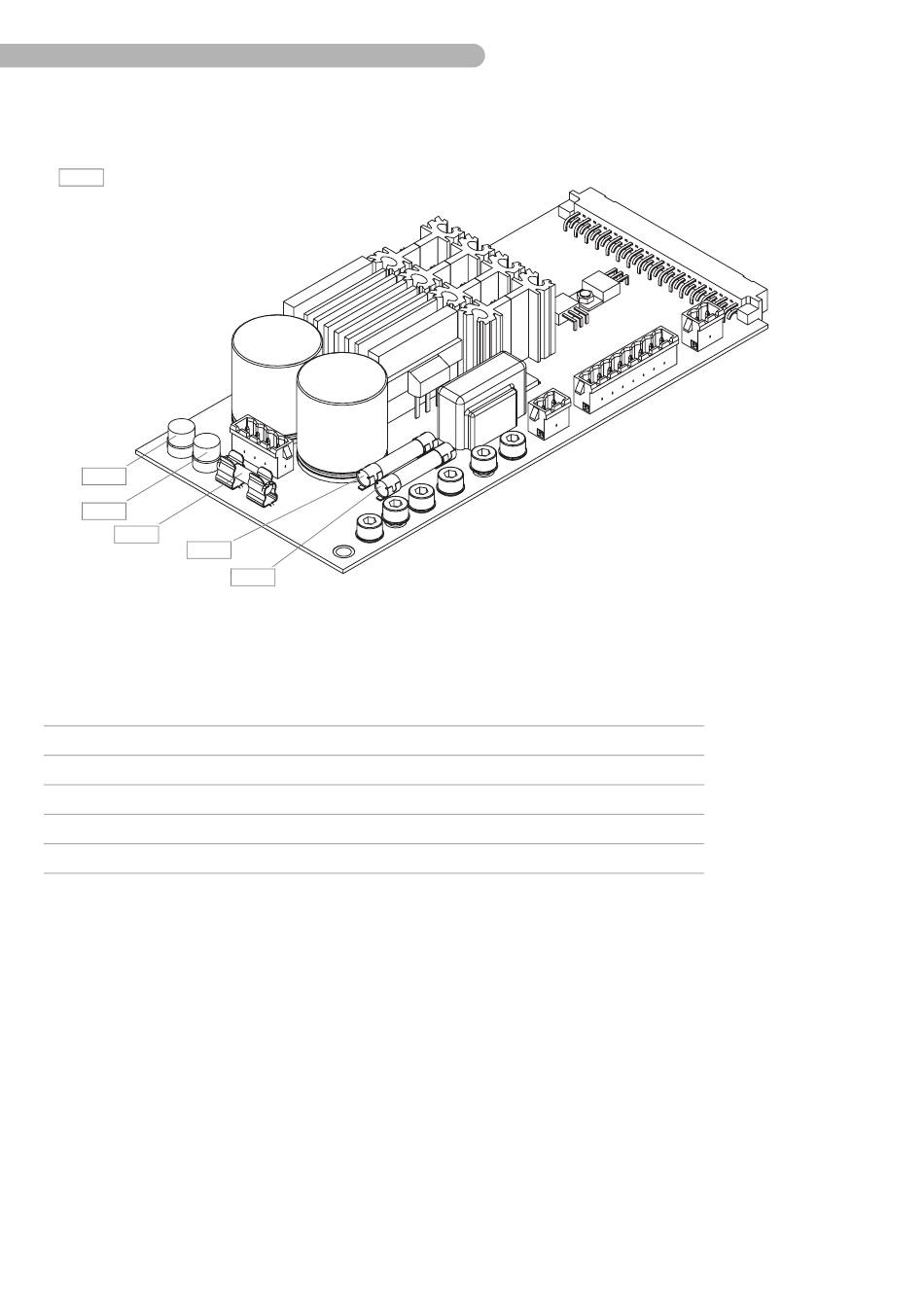

Fig. 46: Circuit board battery switch
Item Name
A 35 Fuse 20 A slow
A 36 Fuse 20 A slow
A 37 Fuse 3.15 A slow
A 38 Fuse 10 A slow
A 39 Fuse 1 A slow
Replace fuses only with fuses of the same type and specification! Otherwise the S5 System may be
damaged.
6.10
A 36
Number Part Number
F1 93-511-530
F2 93-511-530
F3 93-510-044
F4 93-511-030
F5 93-510-039
!
SM-5811-0000.01 ENG
