3.3.8 Assembly overview – Control panels for mast roller pumps
H
H 11
H 12
H 14
H 13

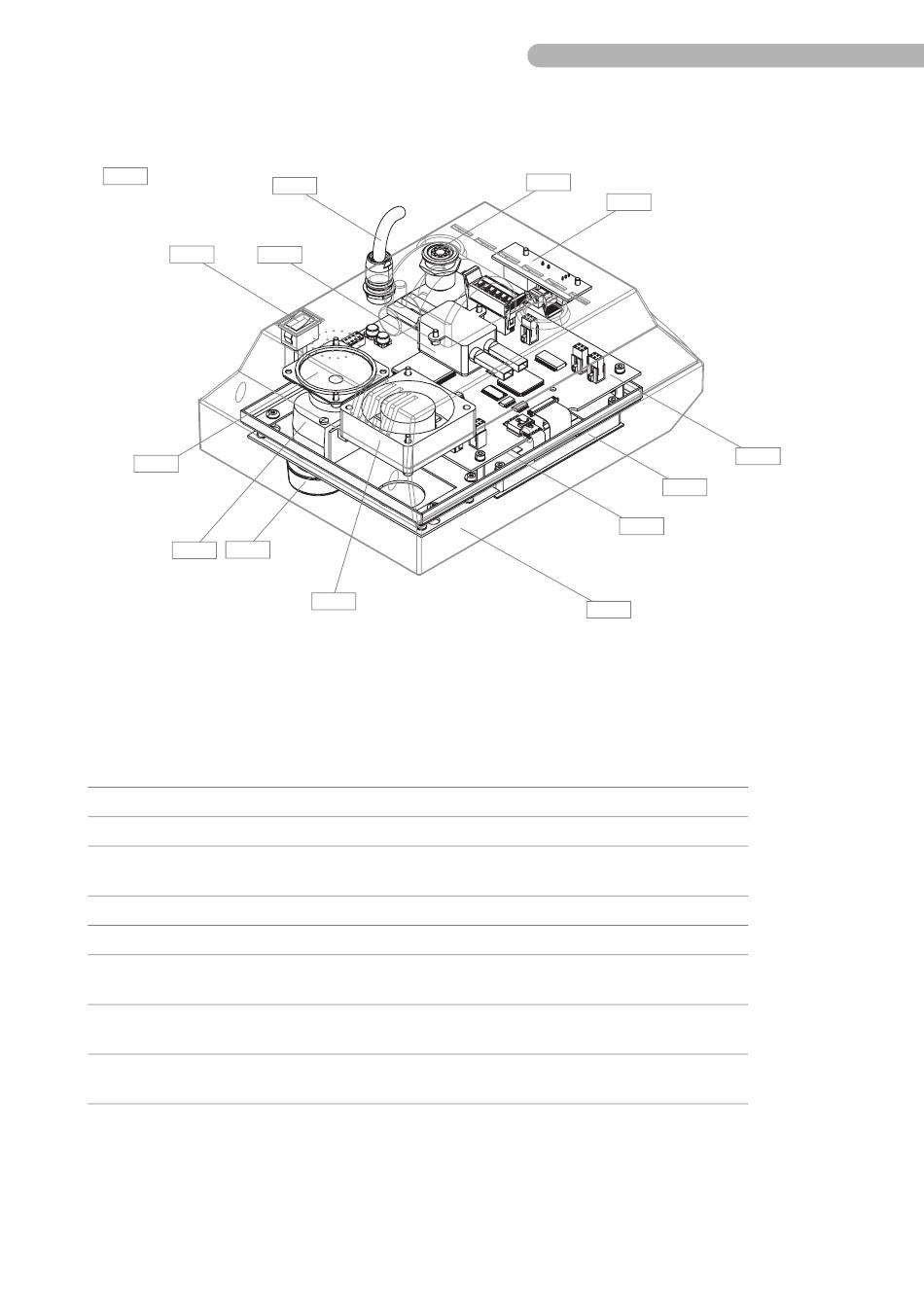

Fig. 21: Assembly overview Control panels for mast roller pumps
Item Name
H Control panels for mast roller pumps
H 1 S5 control panel MRP 150/85
H 2 The S5 control panel for 2 MRP 85 is identical to H 1
(apart from having two shaft encoders)
H 3 LCD Touchscreen
H 4 Computer board (for details see Page 3.42)
H 5 Circuit board Keys and LEDs
(for details see page 3.44)
H 6 Circuit board Fan control
(for details see page 3.50)
H 7 Circuit board inverter
(not shown here: for details see Page 3.49)
SM-5811-0000.01 ENG
H 9
H 10
H 15
H 8
H 6
H 5
H 1
Number Part Number
28-95-80
28-95-85
97-103-616
HKR 0325 90-305-620
HKD 0327 90-505-640
HDM 0503 90-105-850
LXM1617-05-6x 93-146-026
S5 System • System description
H 4
H 3
3.33
