S5 System • Replacing components
6.2.2
Removal of the pump control panel and touch screen

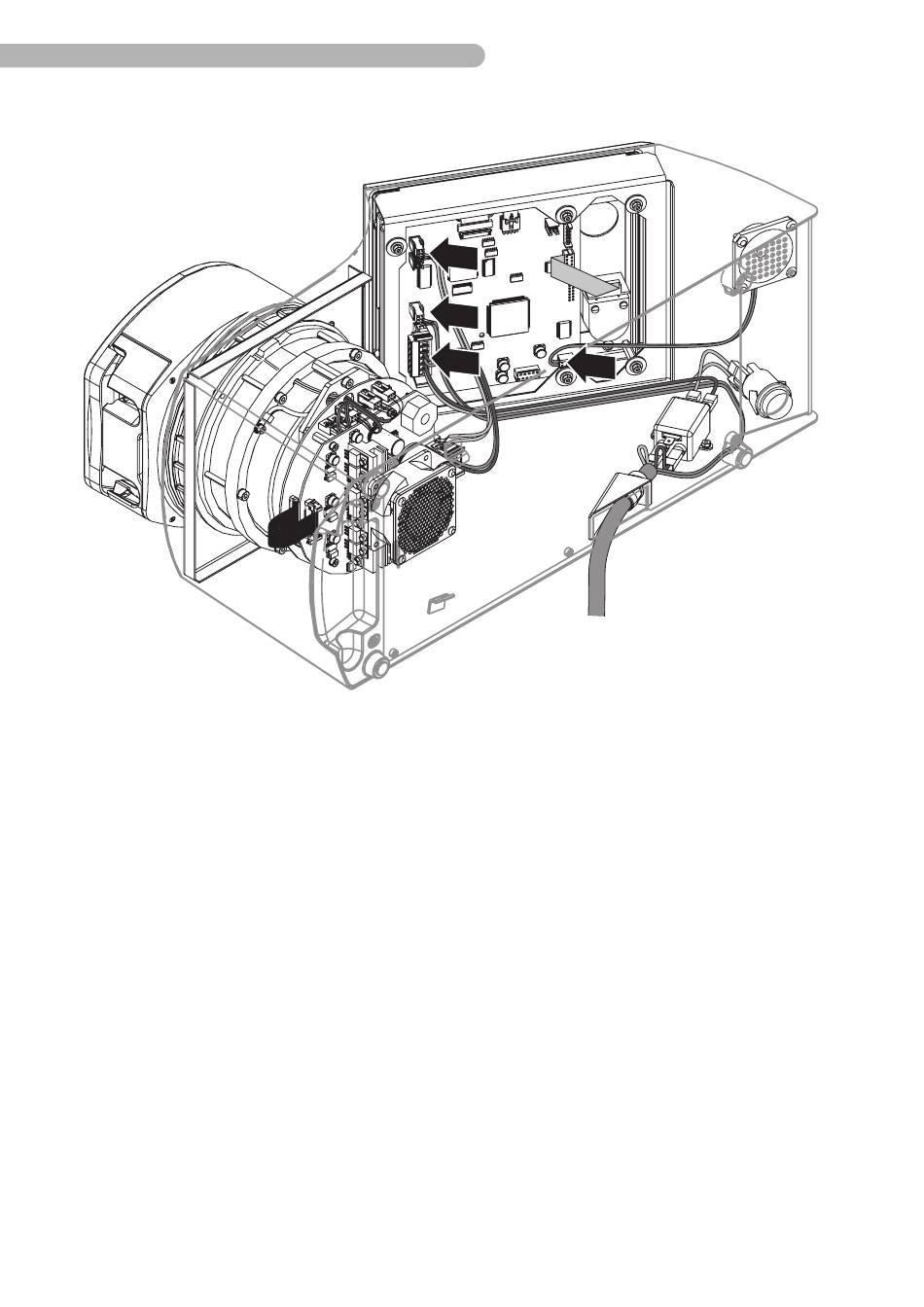

Fig. 54: Removing the pump control panel and touch screen (1)
◗
Disassemble the base plate as described above.
◗
Loosen all connectors.
Always mark the plugs and cables to avoid mistakes in subsequent assembly. If necessary, make a note
of the cable connection positions.
6.20
SM-5811-0000.01 ENG
