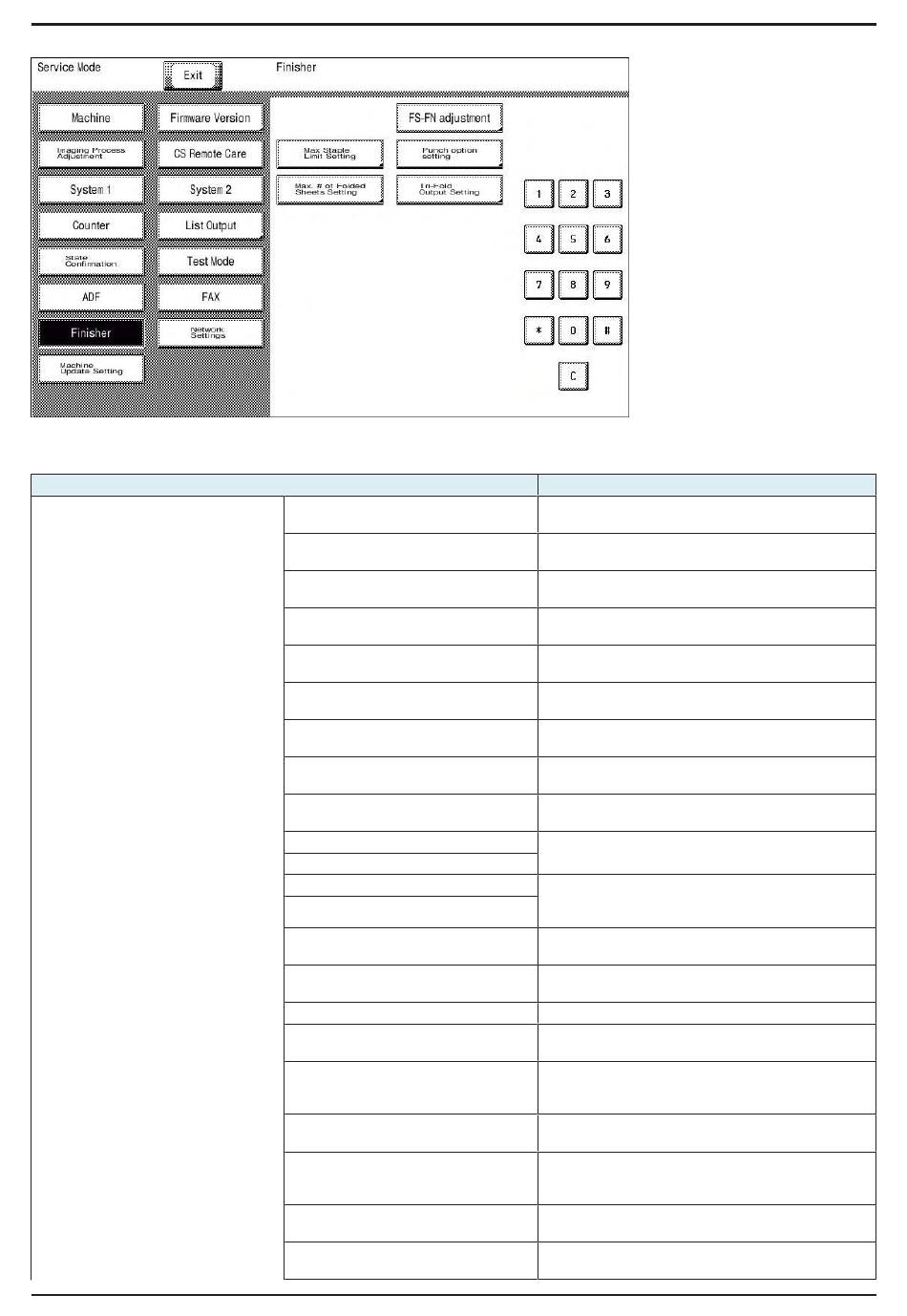

4.2.12 Finisher
NOTE
▪ After exiting Service Mode, you must turn OFF the main power switch. Turning ON the main power switch again after waiting 10
seconds makes the changes to the Service Mode setting take effect.
FS-FN adjustment *2
Finisher *1
Center Staple Position *3
Half-Fold Position *3
Punch Centering Fine Adj *4
Punch F. Sensor Intensity Adj. *4
Punch vertical position (Z-fold) *7
Punch horizontal position (Z-fold) *7
Resist loop size (Z-fold) *8
Punch Registration Loop Adj *4
Punch Resist Loop Size (PI) *9
1st Z-Fold position *8
2nd Z-Fold position *8
1st Tri-Fold Adjustment *3
2nd Tri-Fold Adjustment *3
Punch Edge Adj. *5
Punch Regist Loop Size *6
PI Size Detection *9
Post Inserter Adjustment *9
Finisher Components Test Mode
Alignment Plate Position *10
Paper Alignment Guides W. Adj. *3
ZFold1st Fold Loop Size *8
ZFold2nd Fold Loop Size *8
I ADJUSTMENT/SETTING > 4. LIST OF SERVICE MODE
I.5.29.1 FS-FN adjustment - Center Staple Position
(FS-534SD/FS-536SD/FS-537SD)
I.5.29.2 FS-FN adjustment - Half-Fold Position
(FA-534SD/FS-536SD/FS-537SD)
I.5.29.3 FS-FN adjustment - Punch Centering Fine Adj
(PK-523)
I.5.29.4 FS-FN adjustment - Punch F. Sensor Intensity
Adj. (PK-523)
I.5.29.5 FS-FN adjustment - Punch vertical position (Z-
fold) (ZU-609/PK-523)
I.5.29.6 FS-FN adjustment - Punch horizontal position
(Z-fold) (ZU-609/PK-523)
I.5.29.7 FS-FN adjustment - Resist loop size (Z-fold)
(ZU-609)
I.5.29.8 FS-FN adjustment - Punch Registration Loop
Adj (PK-523)
I.5.29.9 FS-FN adjustment - Punch Resist Loop Size (PI)
(PI-507/PK-523)
I.5.29.10 FS-FN adjustment - 1st Z-Fold Position/2nd Z-
Fold Position (ZU-609)
I.5.29.11 FS-FN adjustment - 1st Tri-Fold
Adjustment/2nd Tri-Fold Adjustment (FS-534SD/
FS-536SD/FS-537SD)
I.5.29.12 FS-FN adjustment - Punch Edge Adj (PK-520/
PK-523)
I.5.29.13 FS-FN adjustment - Punch Regist Loop Size
(PK-519/PK-520)
I.5.29.14 FS-FN adjustment - PI Size Detection (PI-507)
I.5.29.15 FS-FN adjustment - Post Inserter Adjustment
(PI-507)
I.5.29.16 FS-FN adjustment - Finisher Components Test
Mode (FS-533/FS-534/FS-534SD/FS-536/FS-536SD/
FS-537/FS-537SD)
I.5.29.17 FS-FN adjustment - Alignment plate Position
(FS-533)
I.5.29.18 FS-FN adjustment - Paper Alignment Guides
W. Adj. (FS-534/FS-534SD/FS-536/FS-536SD/FS-537/
FS-537SD)
I.5.29.19 FS-FN adjustment - ZFold1st Fold Loop Size
(ZU-609)
I.5.29.20 FS-FN adjustment - ZFold2nd Fold Loop Size
(ZU-609)
