NOTE If the light source does not display in the Family Editor, the light source is not turned on. To
turn it on, click Family Properties panel
OK.
3 Click Modify Light Source tab
As an alternative, you can right-click the light source, and click Element Properties. In the
Instance Properties dialog, for Light Source Definition, click Edit.
The Light Source Definition dialog displays.

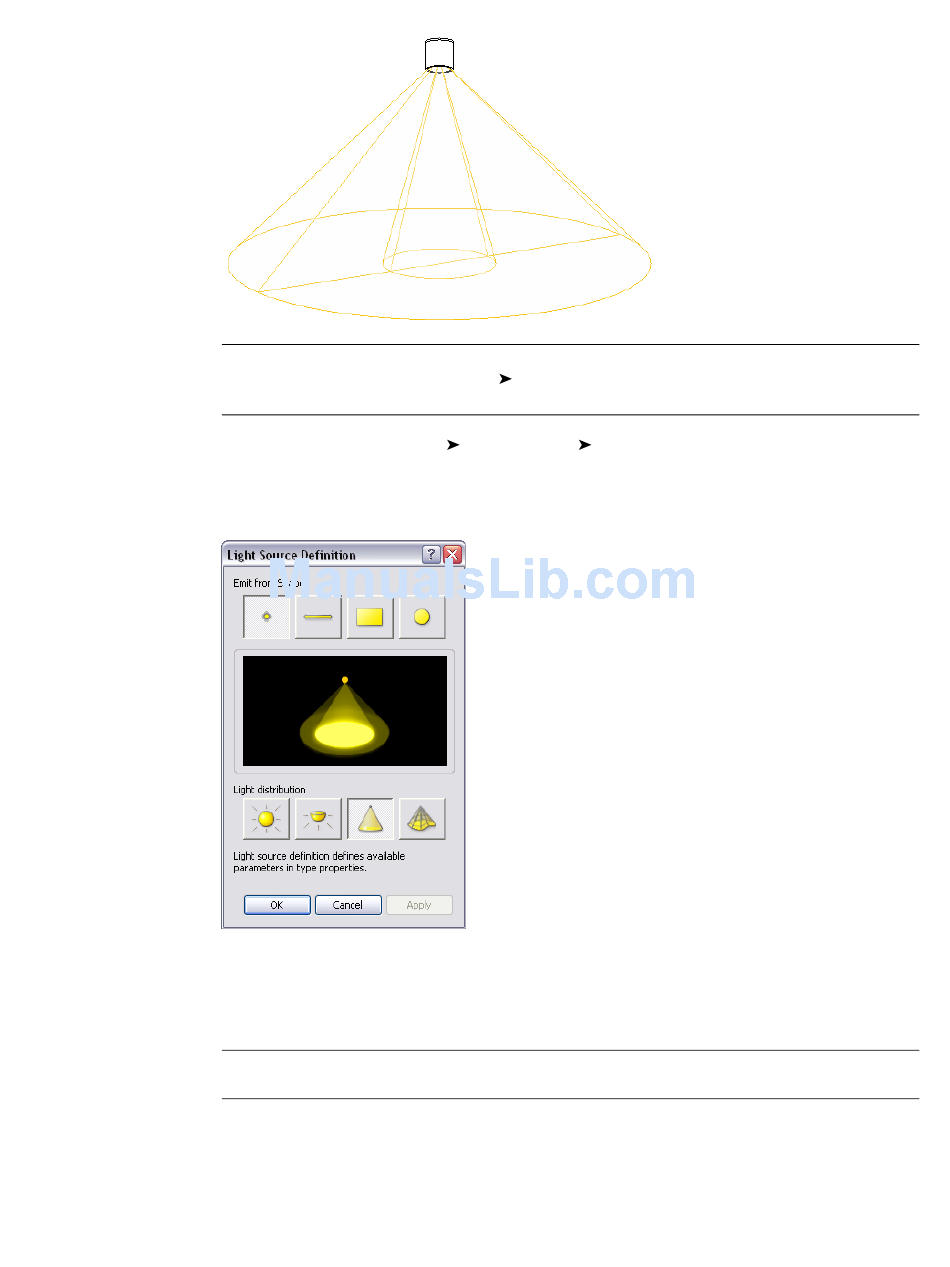

4 For Emit from Shape, select the shape of the light to emit from the light source: Point, Line,
Rectangle, or Circle.
5 For Light distribution, select the pattern of light distribution for the light source: Spherical,
HemiSpherical, Spot, or Photometric Web.
TIP If you plan to specify an IES file to define the photometric shape of the light source, select
Photometric Web. See Specifying an IES File for a Light Source
Category and Parameters, select Light Source, and click
Lighting panel Light Source Definition.
Creating and Modifying Lighting Fixtures | 1181
on page 1178.
