6.4.13 Connect PE cable to the PE connector
The ProfiDAT compact rail must be connected to the customer's PE cable at the line feed points! If the route is interrupted by one
®
or more transfers, each segment must be connected to the customer's system with a PE cable.
The cable cross-section of the PE cable can be determined by the customer, but must be designed to correspond to at least half
the phase current. In addition, the PE cable must be suitable for an operating temperature of at least 90° C.
The PE connectors are used to connect the PE cable to the ProfiDAT
than a simple connector.
Work steps:
→ Fasten the PE cable to the PE connector with the cable lug (for screw size M8) according to the applicable standards and
regulations (see Fig. 130). Tightening torque of the nut (1): Min. 10 Nm
→ Use nickel-plated cable lugs (for corrosion protection).
Standard PE connector
5

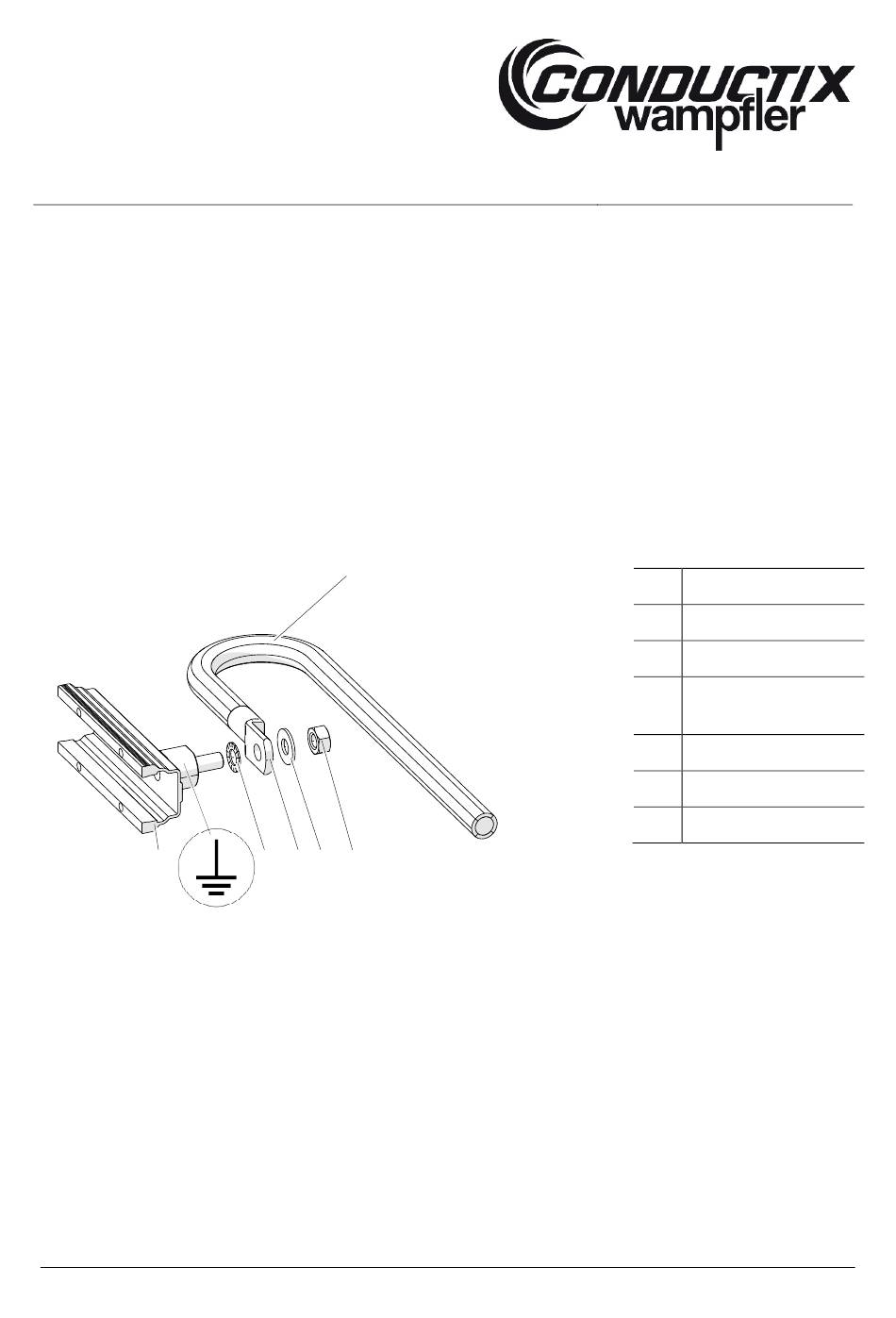

Fig. 130: PE connector with PE cable
MAL0515-0001i-EN
www.conductix.com
6
4 3 2 1
Translated from MAL0515-0001k-DE
®
compact rails. In this case, a PE connector is used rather
Item
1
2
3
4
5
6
Name
Hexagon nut, DIN 934
Locking edge washer
Cable lug up to 95 mm²
M8
Serrated washer
PE connector
PE cable
