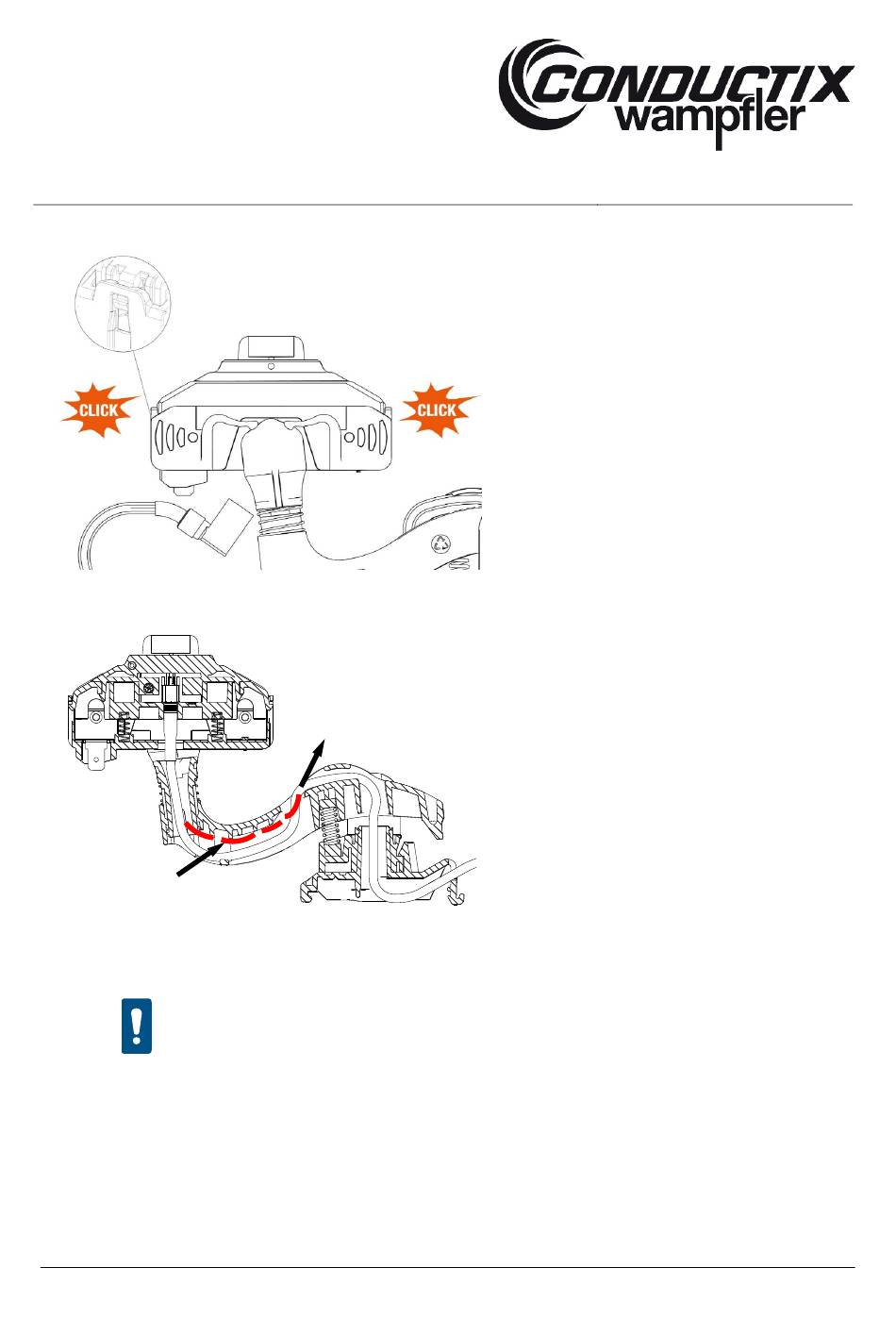

→ The collector housing must audibly click on both sides (see Fig. 183).
Fig. 183: Audibly click in collector housing
→ Pull the data cable (HF cable) back through (see Fig. 184).
Inner radius
Fig. 184: Pull data cable back through (HF cable)
ATTENTION!
MAL0515-0001i-EN
www.conductix.com
Pull
The data cable (HF cable) must rest on the inner radius after being pulled back
through!
