Conductix-Wampfler ProfiDAT compact Mounting Instructions page 135

Mounting Instructions
ProfiDAT compact
®
Data Transmission System
Program 0515
80

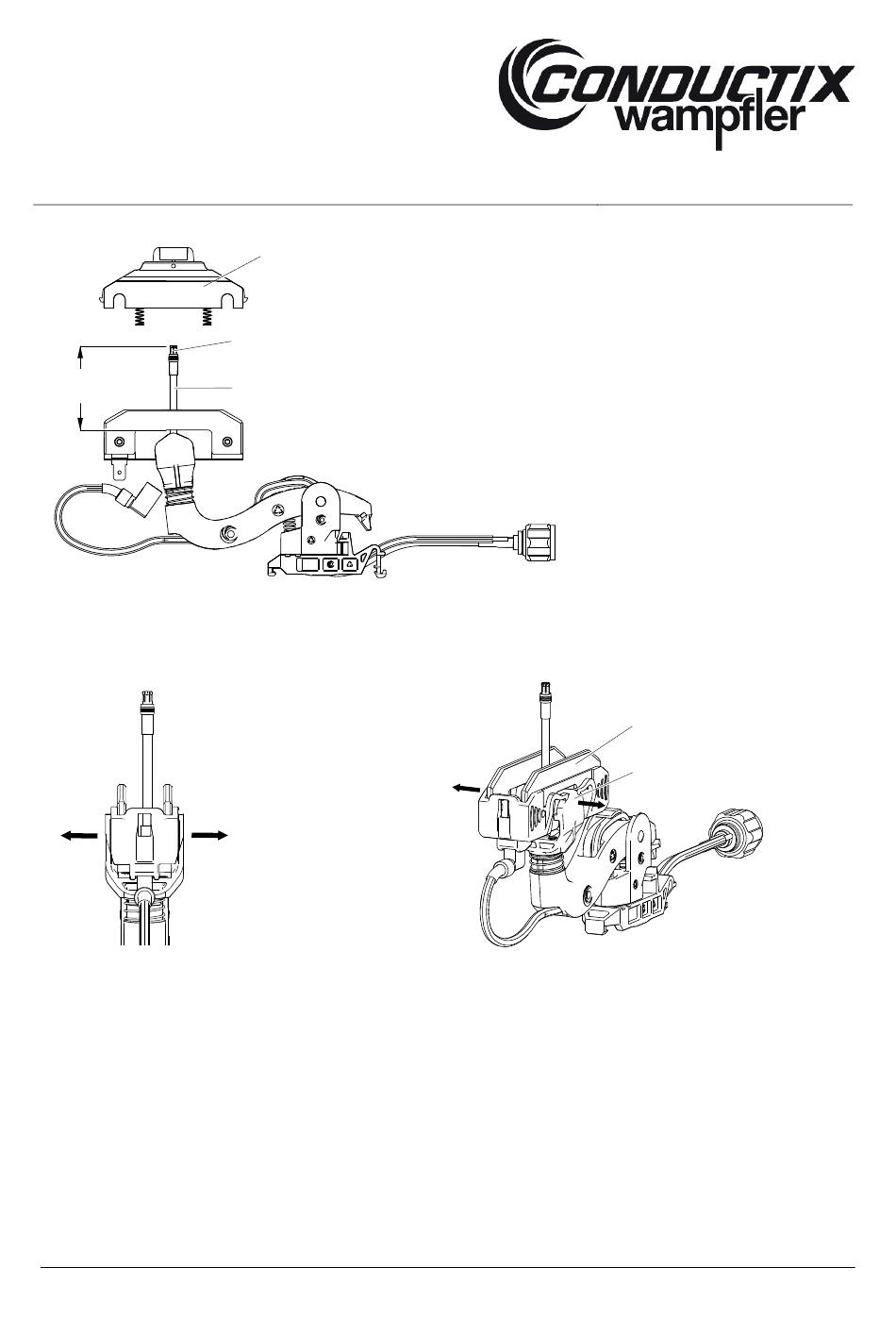

Fig. 174: Disconnect collector housing (1) from data cable (HF cable) (3)
→ Disassemble the balance (1) from the joint (2) (see Fig. 175 and Fig. 176). If necessary, use a flat-head screwdriver ≤ 3.0.
Fig. 175: Disassemble balance from joint
MAL0515-0001i-EN
www.conductix.com
1
2
3
Translated from MAL0515-0001k-DE
Fig. 176: Balance incl. sliding contact (1) and joint (2)
1
2
Page 135 of 169
