ATTENTION!
→ Simulate ease of movement of the antenna in the installed state.
→ Retract the balance (1) back to mechanical stop and hold (see Fig. 189).
→ Check the ease of movement of the cover (2).
→ Press the cover (2) in so that it springs out again independently (see Fig. 189)
2
1

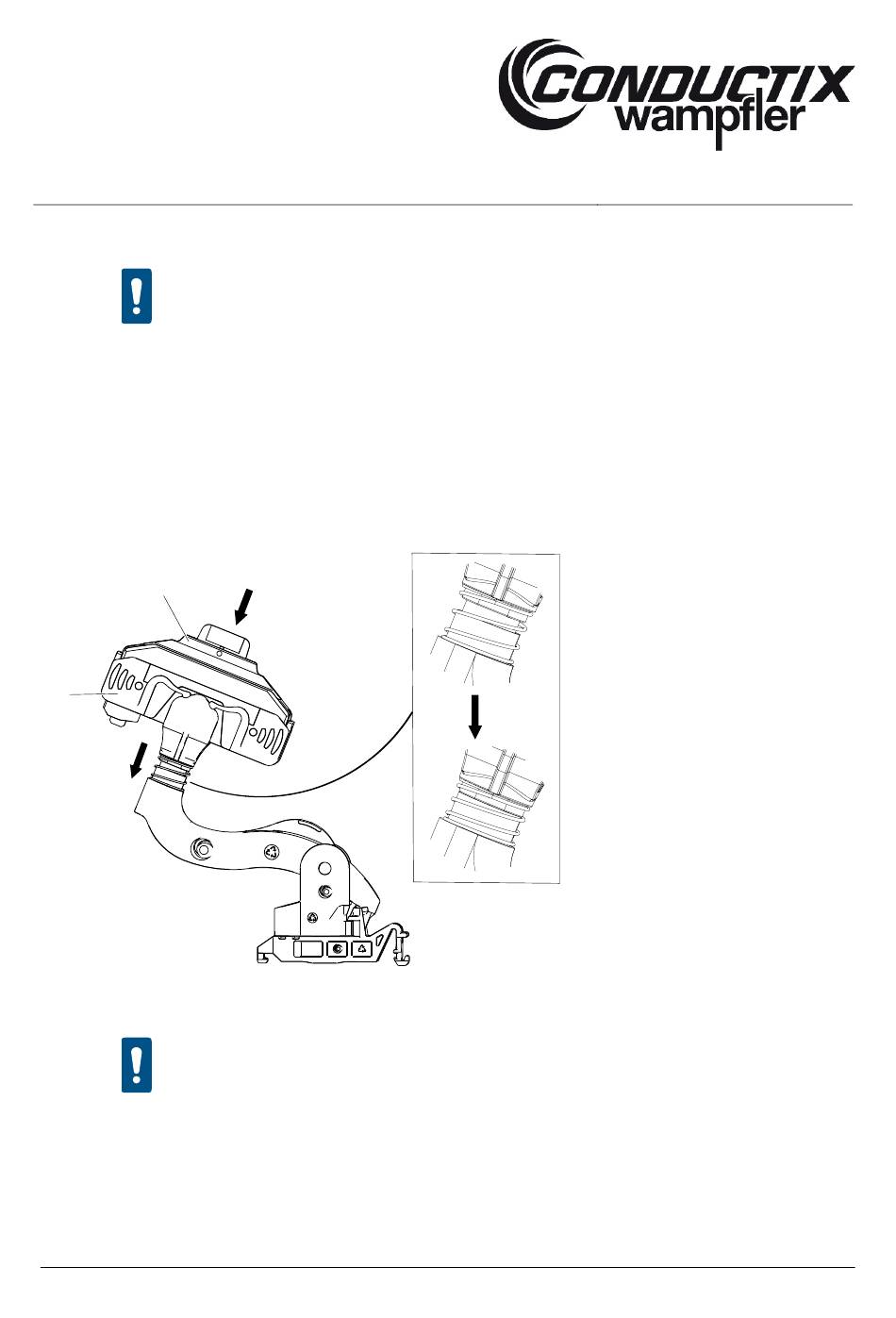

Fig. 189: Check collector head in installed state
ATTENTION!
MAL0515-0001i-EN
www.conductix.com
The PE cable must not be bent or compressed!
The data cable (HF cable) must not apply any force on the cover from below!
