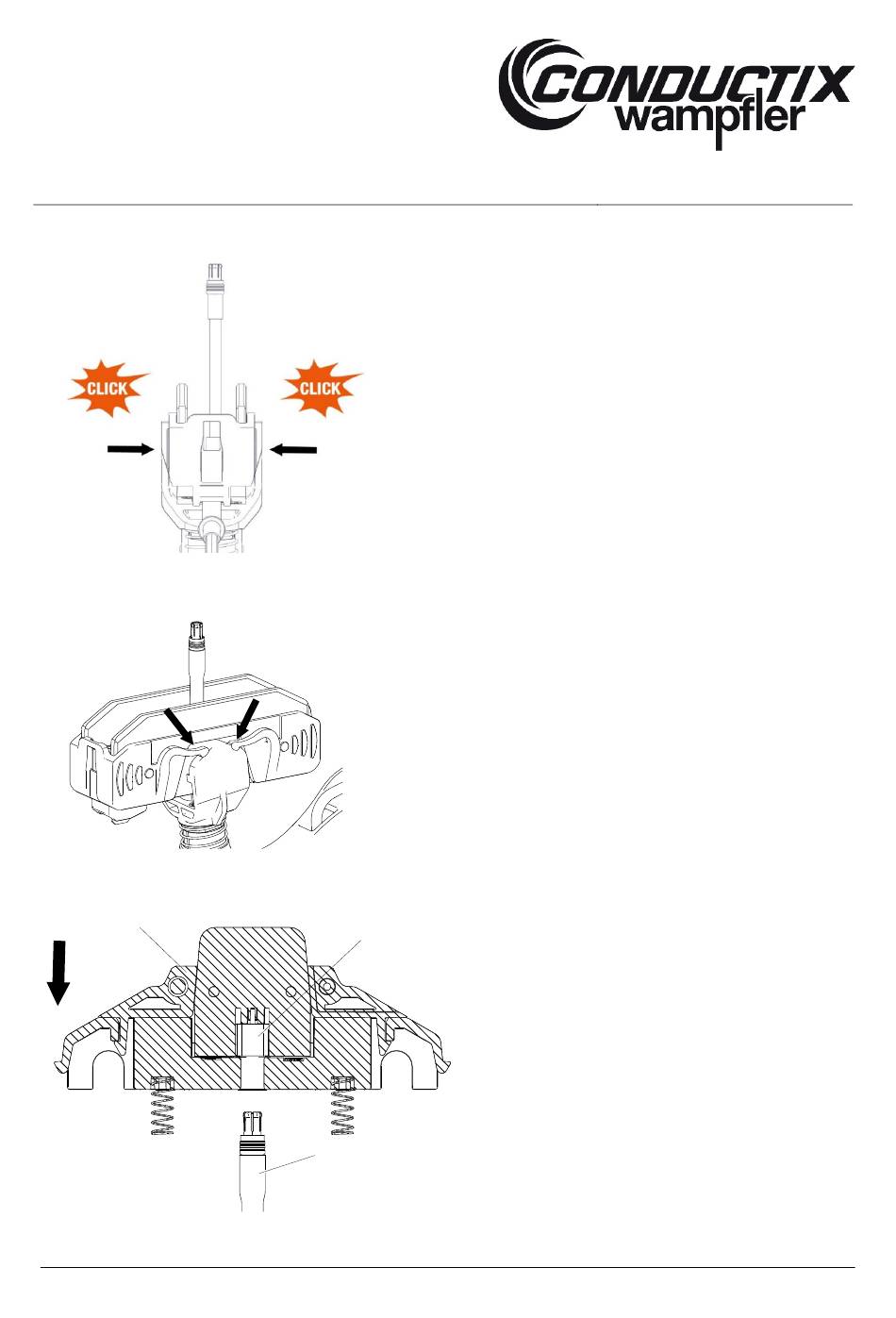

→ The balance must audibly click twice over the lateral bolts (see Fig. 164).
Fig. 164: Balance clicks audibly
→ The balance springs must rest correctly on the bearing (see Fig. 165)
Fig. 165: Correct position of springs
→ Connect the collector housing, including the glued-in compression spring (1), to the data cable (2) (see Fig. 166).
1
3
2
Fig. 166: Collector housing (1) is mounted on data cable (2)
