Optional mounting for the universal hanger clamp
The universal hanger clamp can also be mounted with fastenings other than the expanding rivet.
Other fastenings are:
→ Self-tapping screw (DIN 7500 CE)
→ Cylinder screw (DIN 6912)
→ Hex bolt DIN 933
1

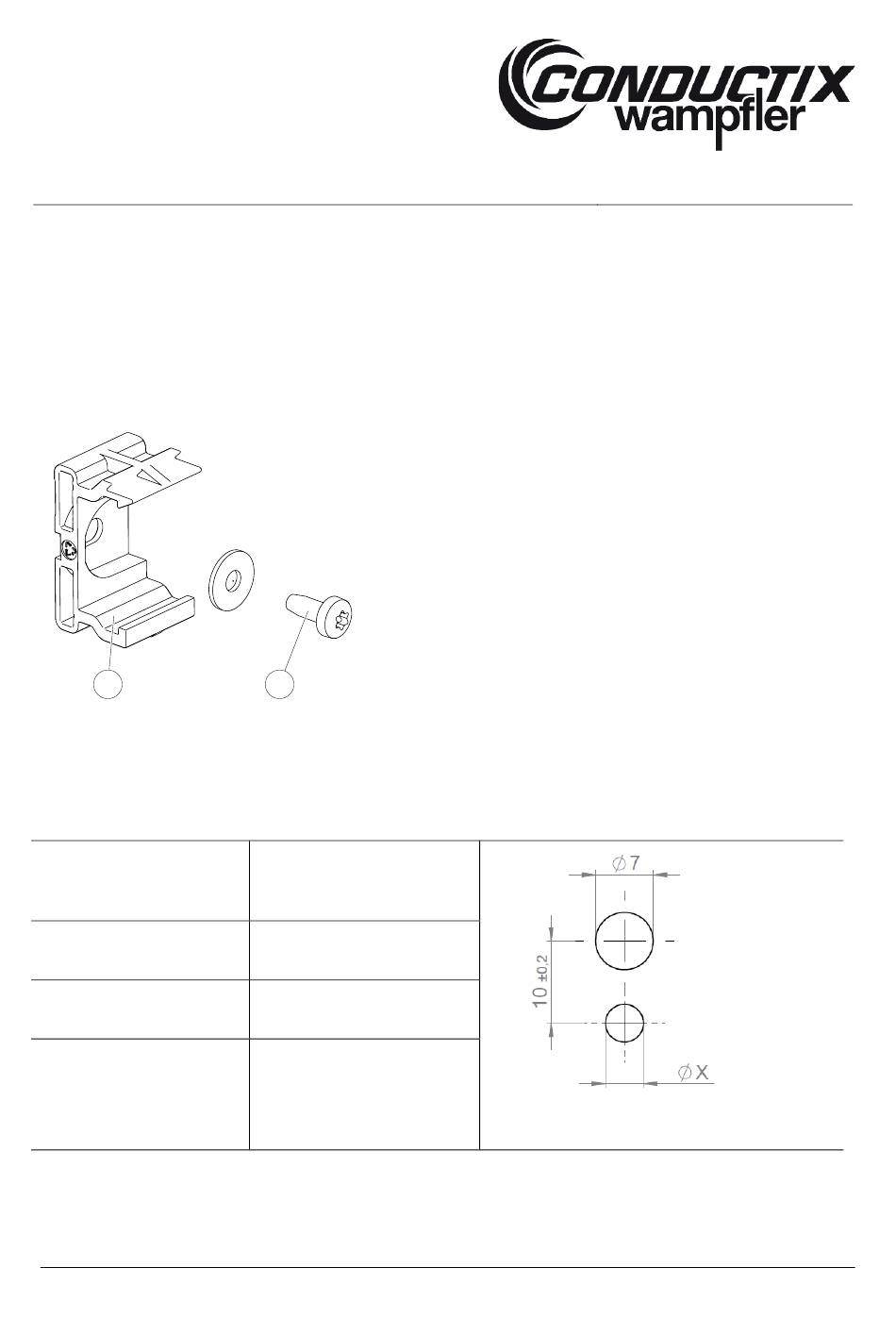

Fig. 37: Hanger clamp with self-tapping screw
Work steps for the universal hanger clamp with other fastenings:
→ Support structure (substructure) for the hanger clamps according to Fig. 39. The diameter "X" depends on the fastening of the
universal hanger clamp.
Fastening
Self-tapping screw
Cylinder screw
Hexagon screw
MAL0515-0001i-EN
www.conductix.com
2
Diameter "X" of the drill holes
for the mounting holes
[mm]
Diameter according to Table 1
4.5
4.5
Translated from MAL0515-0001k-DE
Fig. 38: Distance between drill holes in support
structure (substructure) for hanger clamp
