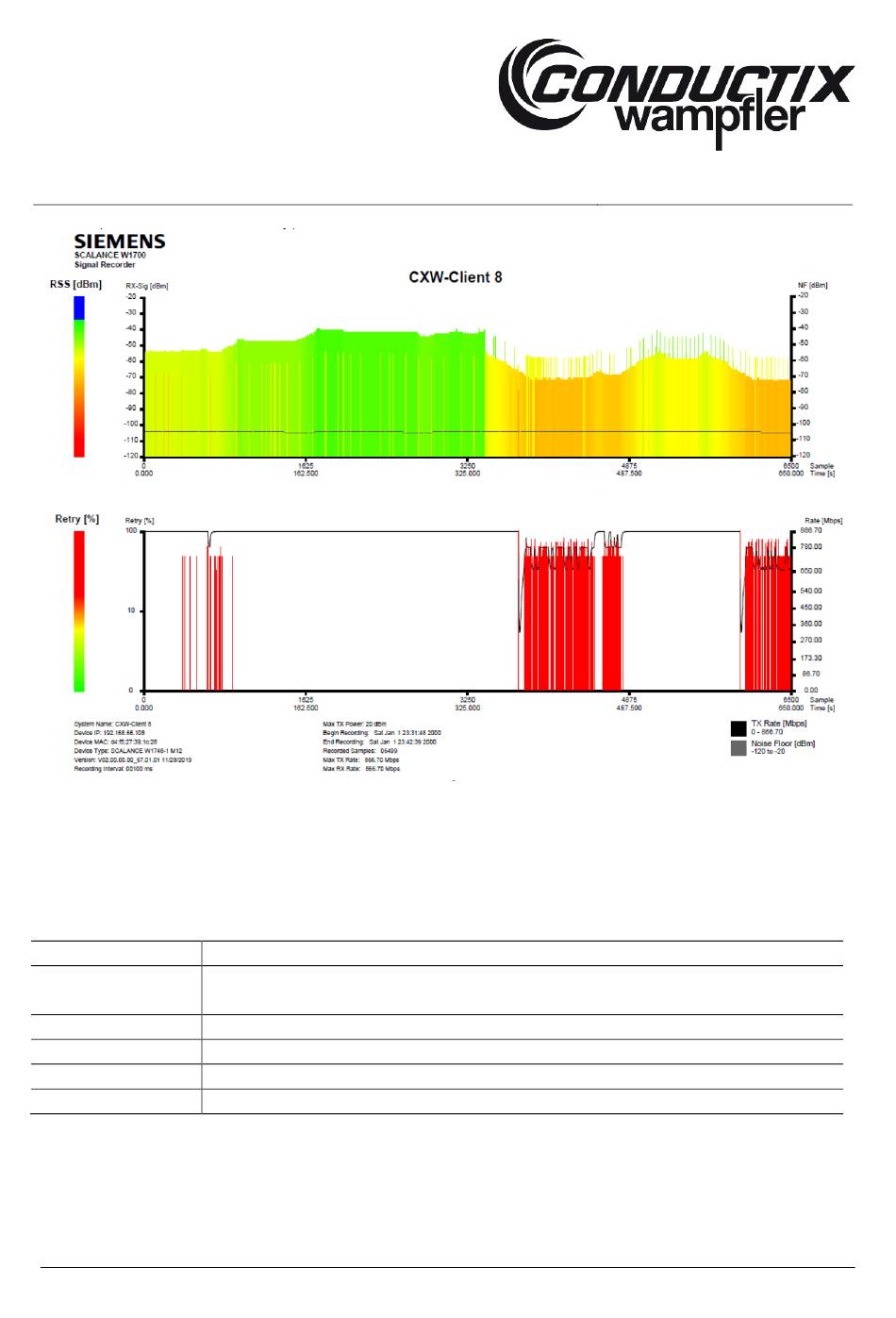

Fig. 204: Signal scan with too low signal strength, resulting in many retries and data rate drop
Settings parameters for recording:
To carry out the signal scan, various parameters can be specified at the bottom of the Signal Recorder screen. These are listed
below with recommendations.
Parameters
Time Interval [ms]
Samples
Endless
Bidirectoinal Recording
Displayed Samples
MAL0515-0001i-EN
www.conductix.com
Recommendation
Should be selected similar to the cycle time of the transmitted protocol, e.g. 64 ms Profinet cycle
time -> 100ms Time Interval
Maximum recording capacity: 10,000 measurement points
Deactivated
Enabled (recording of the reception power at the AP)
As required
