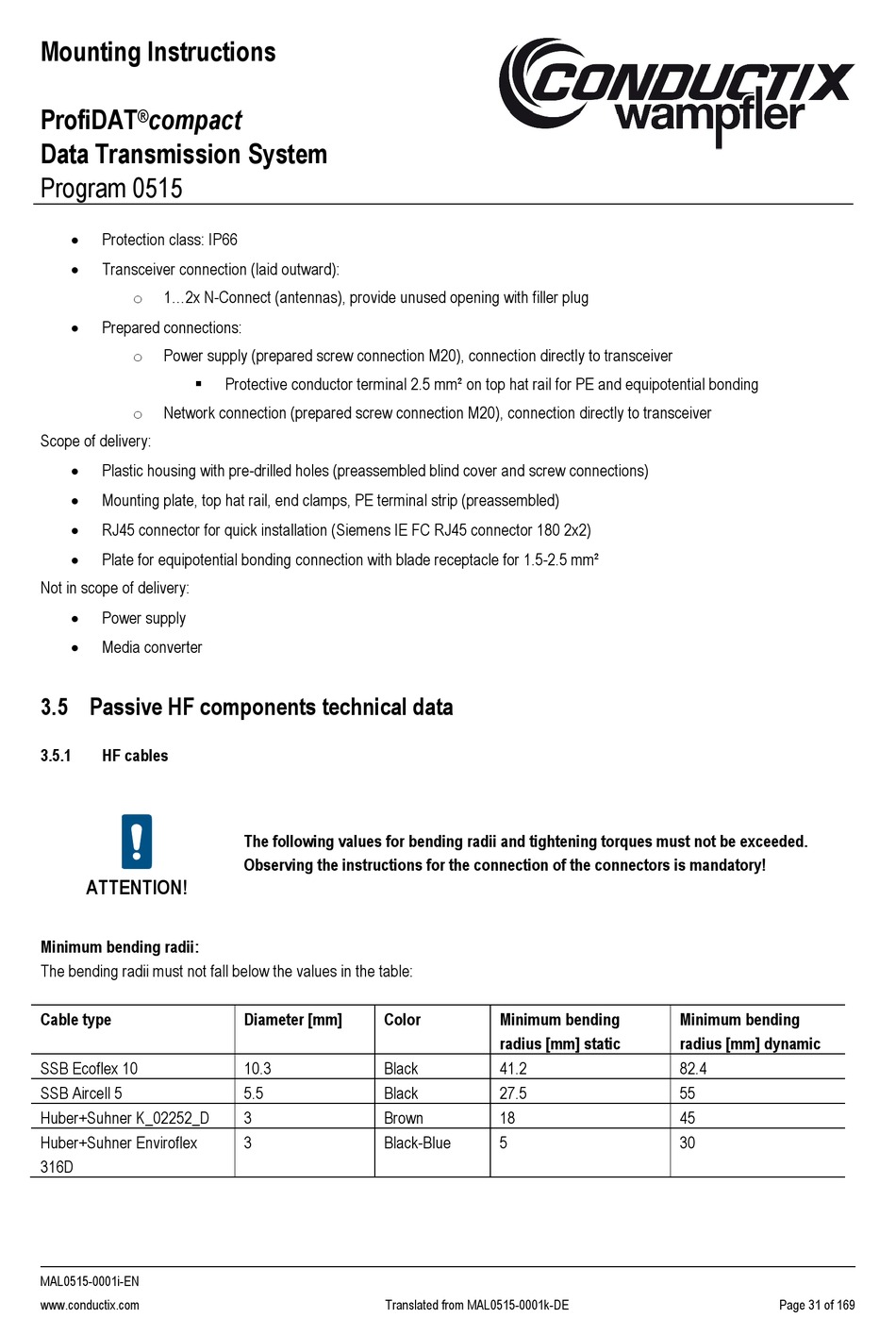

Conductix-Wampfler ProfiDAT compact Mounting Instructions page 31

Mounting Instructions
ProfiDAT compact
®
Data Transmission System
Program 0515
Protection class: IP66
•
Transceiver connection (laid outward):
•
1...2x N-Connect (antennas), provide unused opening with filler plug
o
Prepared connections:
•
Power supply (prepared screw connection M20), connection directly to transceiver
o

Network connection (prepared screw connection M20), connection directly to transceiver
o
Scope of delivery:
Plastic housing with pre-drilled holes (preassembled blind cover and screw connections)
•
Mounting plate, top hat rail, end clamps, PE terminal strip (preassembled)
•
RJ45 connector for quick installation (Siemens IE FC RJ45 connector 180 2x2)
•
Plate for equipotential bonding connection with blade receptacle for 1.5-2.5 mm²
•
Not in scope of delivery:
Power supply
•
Media converter
•
3.5 Passive HF components technical data
3.5.1 HF cables
ATTENTION!
Minimum bending radii:
The bending radii must not fall below the values in the table:
Cable type
SSB Ecoflex 10
SSB Aircell 5
Huber+Suhner K_02252_D
Huber+Suhner Enviroflex
316D
MAL0515-0001i-EN
www.conductix.com
Protective conductor terminal 2.5 mm² on top hat rail for PE and equipotential bonding
The following values for bending radii and tightening torques must not be exceeded.
Observing the instructions for the connection of the connectors is mandatory!
Diameter [mm] Color
10.3 Black
5.5 Black
3 Brown
3 Black-Blue
Translated from MAL0515-0001k-DE
Minimum bending
radius [mm] static
41.2
27.5
18
5
Minimum bending
radius [mm] dynamic
82.4
55
45
30
