6.4.11 Mount the collector
The collector is mounted on the vehicle or on a separate, customer-specific mobile consumer.
3

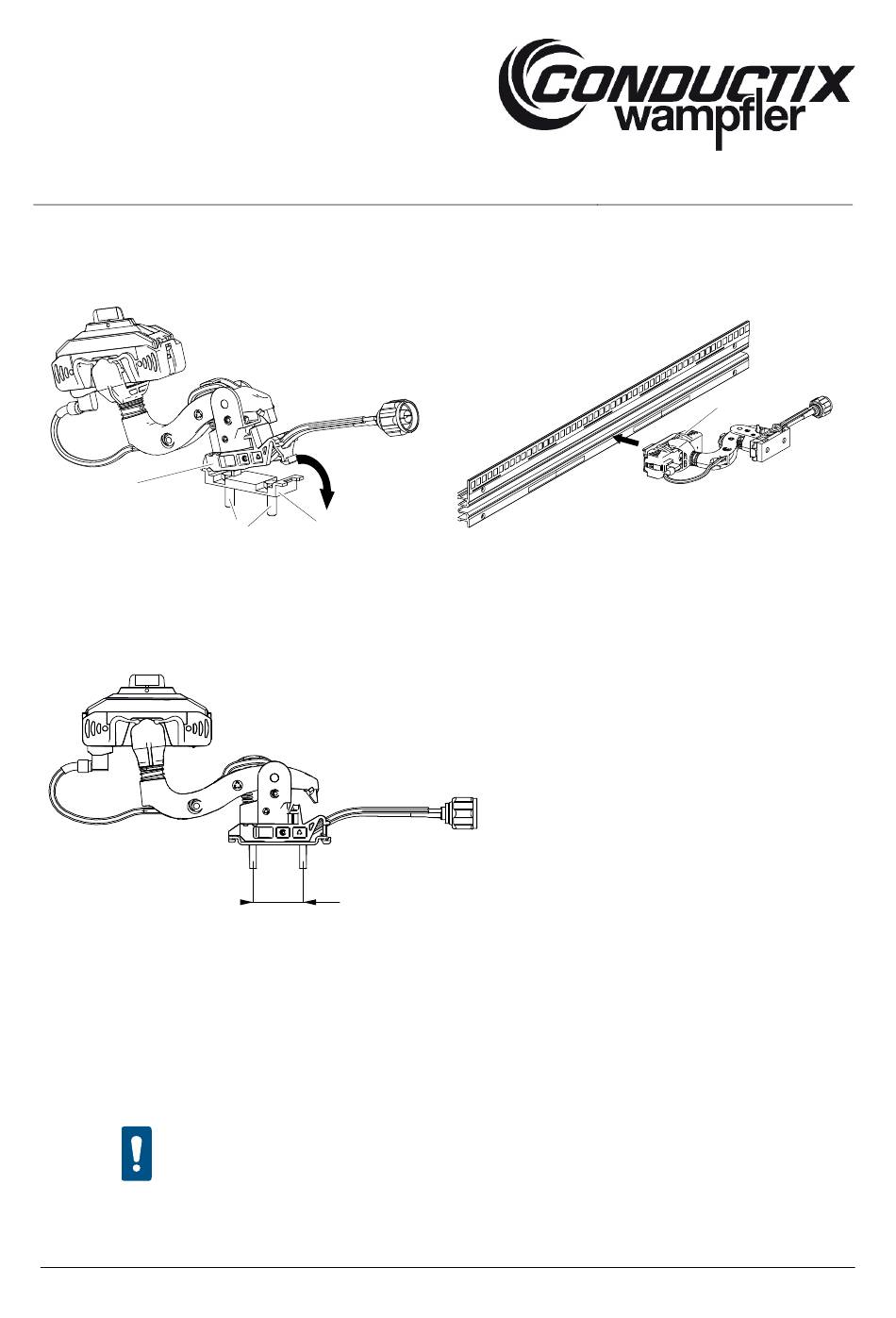

Fig. 124: Mount collector on towing unit
Work steps:
→ Drill holes in the support structure (substructure) at a distance of 30 mm (see Fig. 142).
Fig. 126: Screw distances in towing unit
→ Mount the towing unit (1) using M5 x 2 hexagon screws (DIN EN 4017 (DIN 933) – steel 8.8) (2) to the support structure
(substructure) with a tightening torque of 6 Nm (see Fig. 141).
→ Mount/snap the collector/collector bearing (3) onto the towing device (1).
→ Slide the collector head (4) with the mobile antenna into the data rail from the side.
→ Align the towing unit (1) including the collector with the data rail (see Fig. 127).
ATTENTION!
MAL0515-0001i-EN
www.conductix.com
1
2
30
It must be ensured that the central axis of the data rail (A) is mounted exactly on the central
axis of the collector (B) and that the specified mounting distance between the towing unit and
rail is maintained (see Layout Plan and Fig. 127).
Translated from MAL0515-0001k-DE
Fig. 125: Slide collector into rail
4
