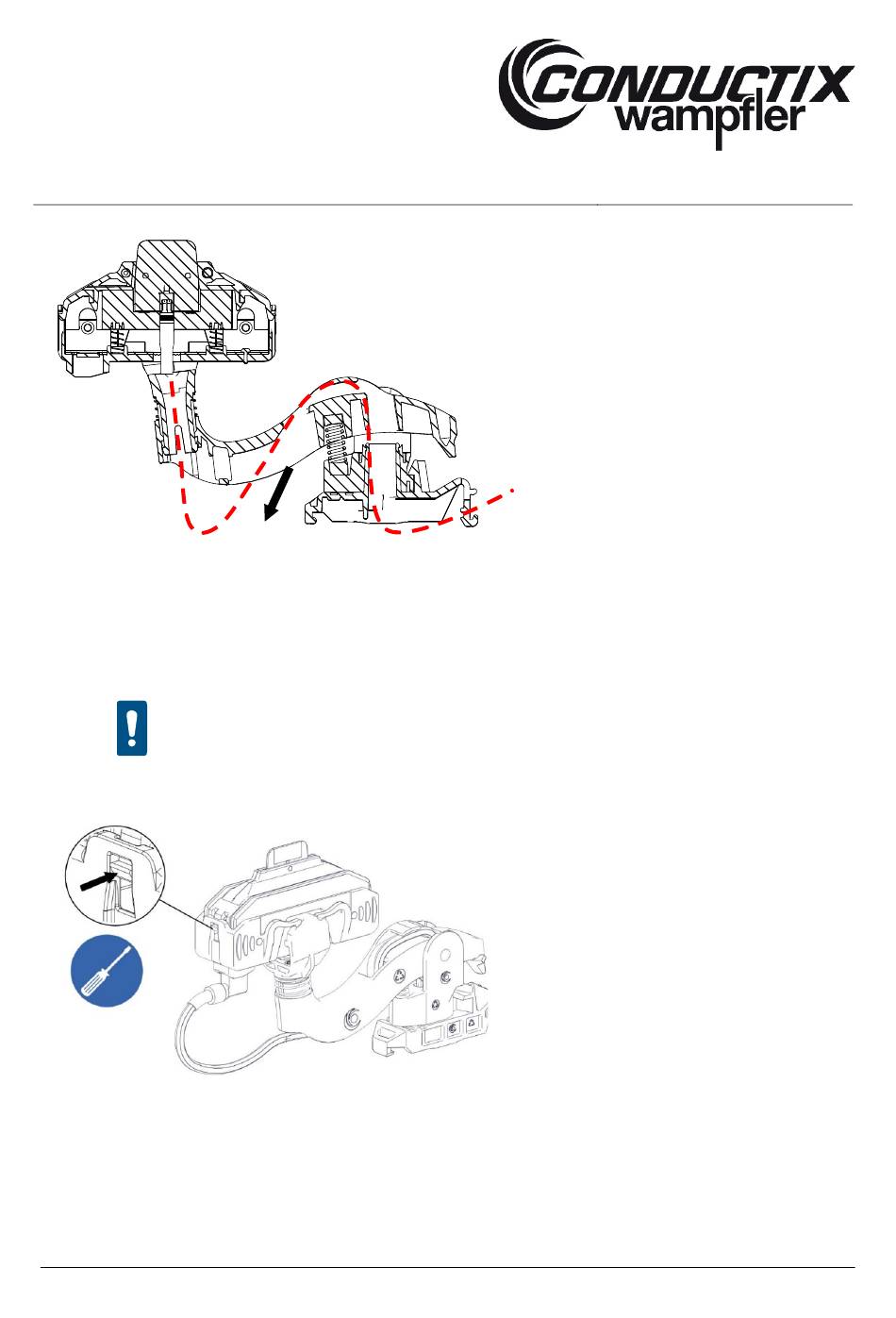

Fig. 172: Pull data cable (HF cable) (loop from below)
→ Using a flat-head screwdriver ≤ 3.0, carefully push a nose of the collector housing inward to disassemble the circuit board
housing (see Fig. 173).
ATTENTION!
Fig. 173: Carefully press nose in collector housing inward with flat-head screwdriver
→ Disconnect the collector head (1) from the connector (2) of the data cable (HF cable) (3). The data cable (HF cable) must
protrude approx. 80 mm from the joint (see Fig. 174).
MAL0515-0001i-EN
www.conductix.com
Pull
Springs can jump out!
