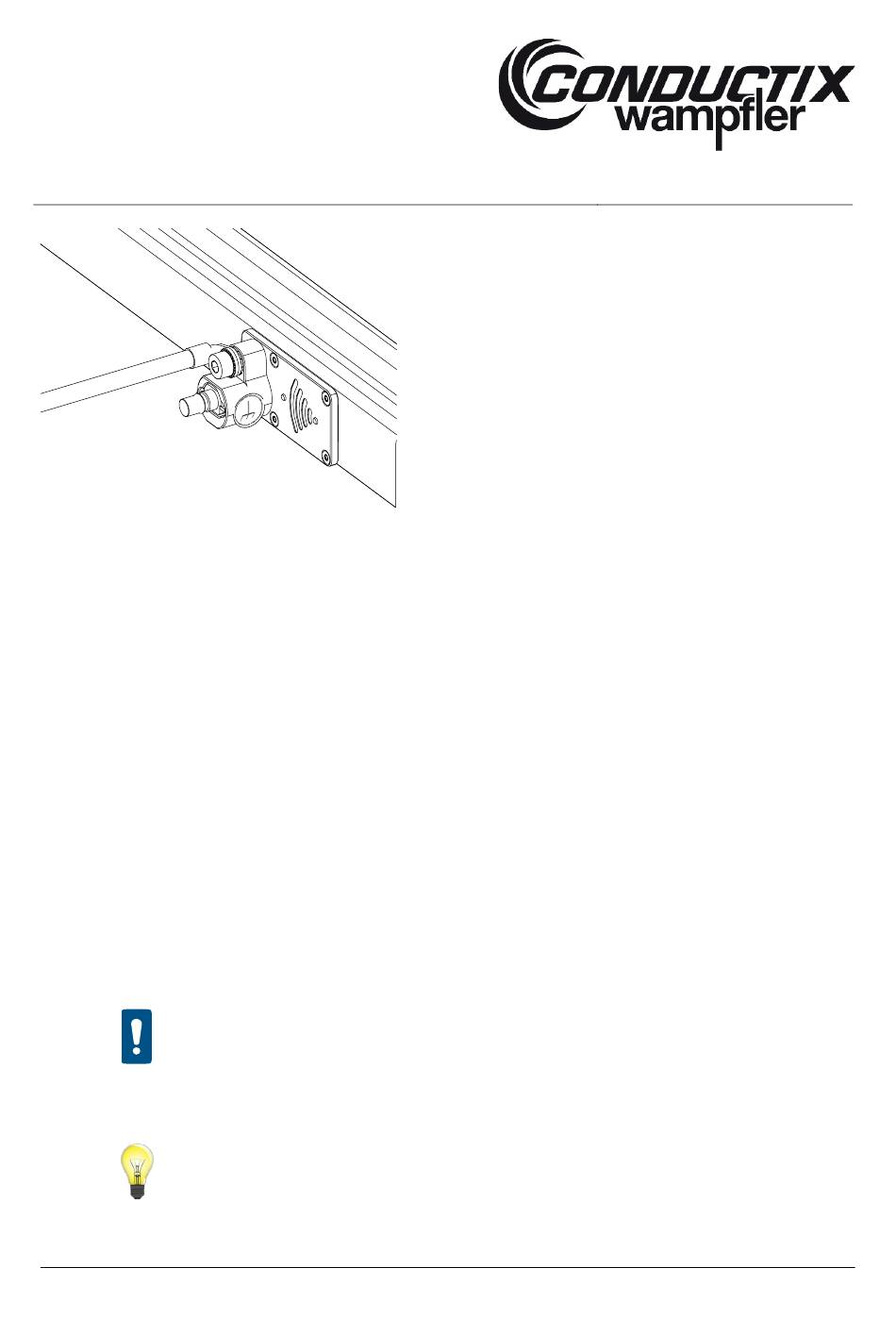

Fig. 136: Fully mounted equipotential bonding cable
Implementation of the equipotential bonding
The equipotential bonding must be implemented using an equipotential bonding cable with the following characteristics:
Laying the equipotential bonding cable
The equipotential bonding cable must be laid parallel, directly and over the entire length, next to each HF cable that connects the
points specified above. The equipotential bonding cable must be connected to the potential of the HF cable shield directly at the
beginning and end of the respective HF cable segment.
Connection of multiple equipotential bonding cables
When using a power splitter, 3 equipotential bonding cables meet at this power splitter (node). There, the equipotential bonding
cables must be connected to one another in a conductive manner, e.g. via a fixed bolt and using ring terminals. If this node is
grounded, then the power splitter must also be grounded (see Fig. 137)!
Recommended conductor* characteristics
Sheath color: white
Cross-section: 4...6 mm²
Conductor* class: 5 or 6
ATTENTION!
NOTE!
MAL0515-0001i-EN
www.conductix.com
The equipotential bonding cables must not have a green-yellow sheath color (DIN EN
60204-1/32).
Refer to Section 6.5.2 for laying with an HF cable.
