8.2.4 Replacement of the collector head
Work steps:

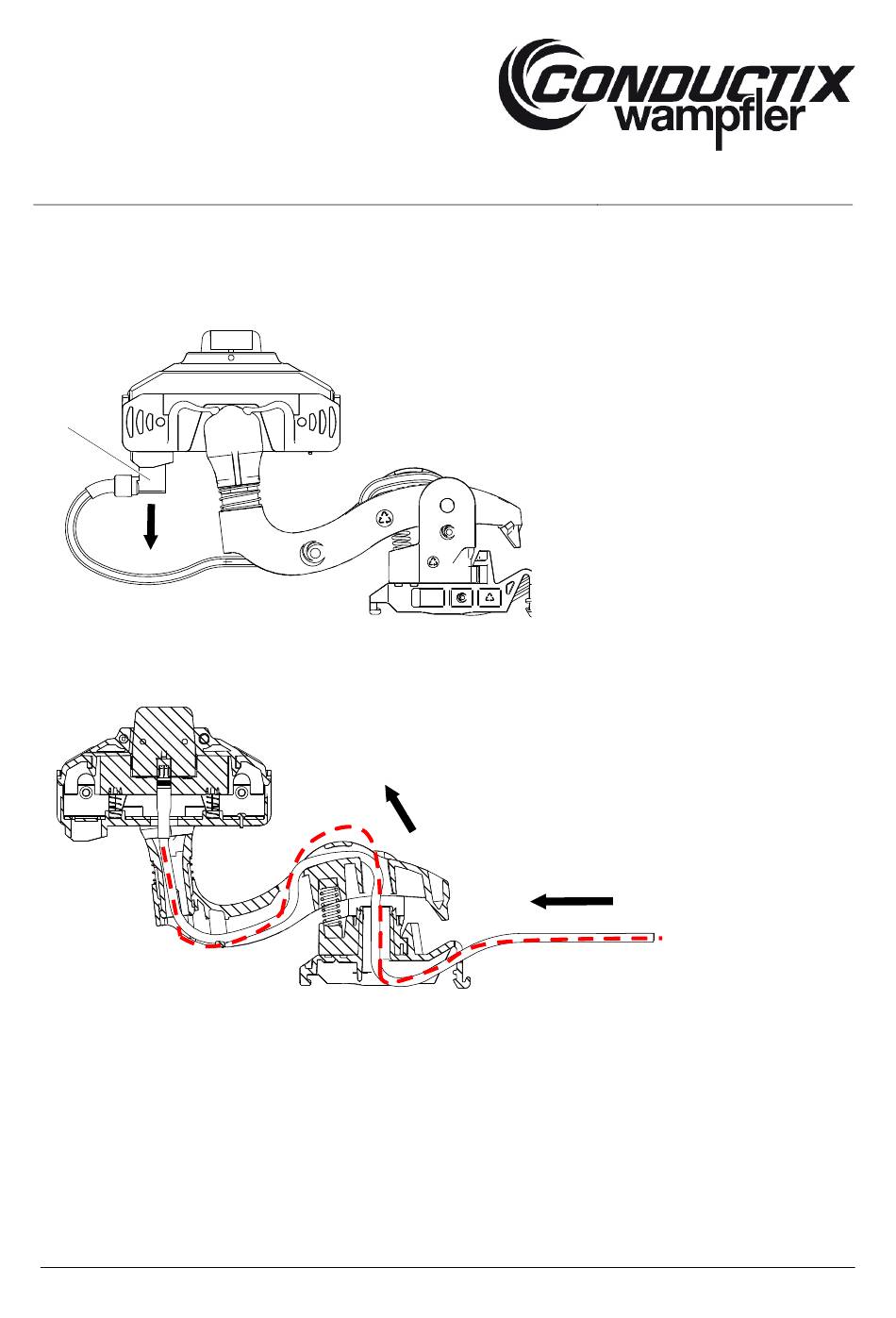

→ Pull off the angled blade receptacle (1) of the PE cable (see Fig. 170).
1
Fig. 170: Pull off angled blade receptacle
→ Pull the data cable so that the collector head can be better loosened from the joint (see Fig. 171 and Fig. 172).
Pull
Push
Fig. 171: Pull data cable (HF cable) (loop from above)
