Work steps:
→ Connect the R-SMA connector of the cable (4) to the R-SMA connector of the transceiver. The N-socket on the other end of
the cable (4) must be installed as a switching cabinet bushing and electrically conductively connected to the housing
(grounded). The grounding plate (Section 6.5.3, Fig. 101, Pos. 40) with the switching cabinet bushing.
→ If available for a specific project, connect the attenuator (5) to the N-socket of the cable (4). Project-specific attenuators can
also be located on the power splitter (7).
→ Connect the N-connector of the cable (6) to the N-socket of the attenuator (5) or the switching cabinet bushing N-socket of the
cable (4).
→ Mount the power splitter (7) and connect the N-connector of the cable (6) to the N-socket of the power splitter (7). Ensure
equipotential bonding, see Section 6.5.3.
→ Connect the N-connector of the cables (8) to the N-socket of the power splitter and lead the QLS connector of the cable (8) to
the line feed (30).
→ Connect the QLS connector of the cable (8) to the QMA socket of the line feed (30).
→ Fix the cable routing with cable ties or similar to the support structure (substructure); stow excess cables properly.
→ Connect the QMA terminating resistors (31) to both segment ends (30)

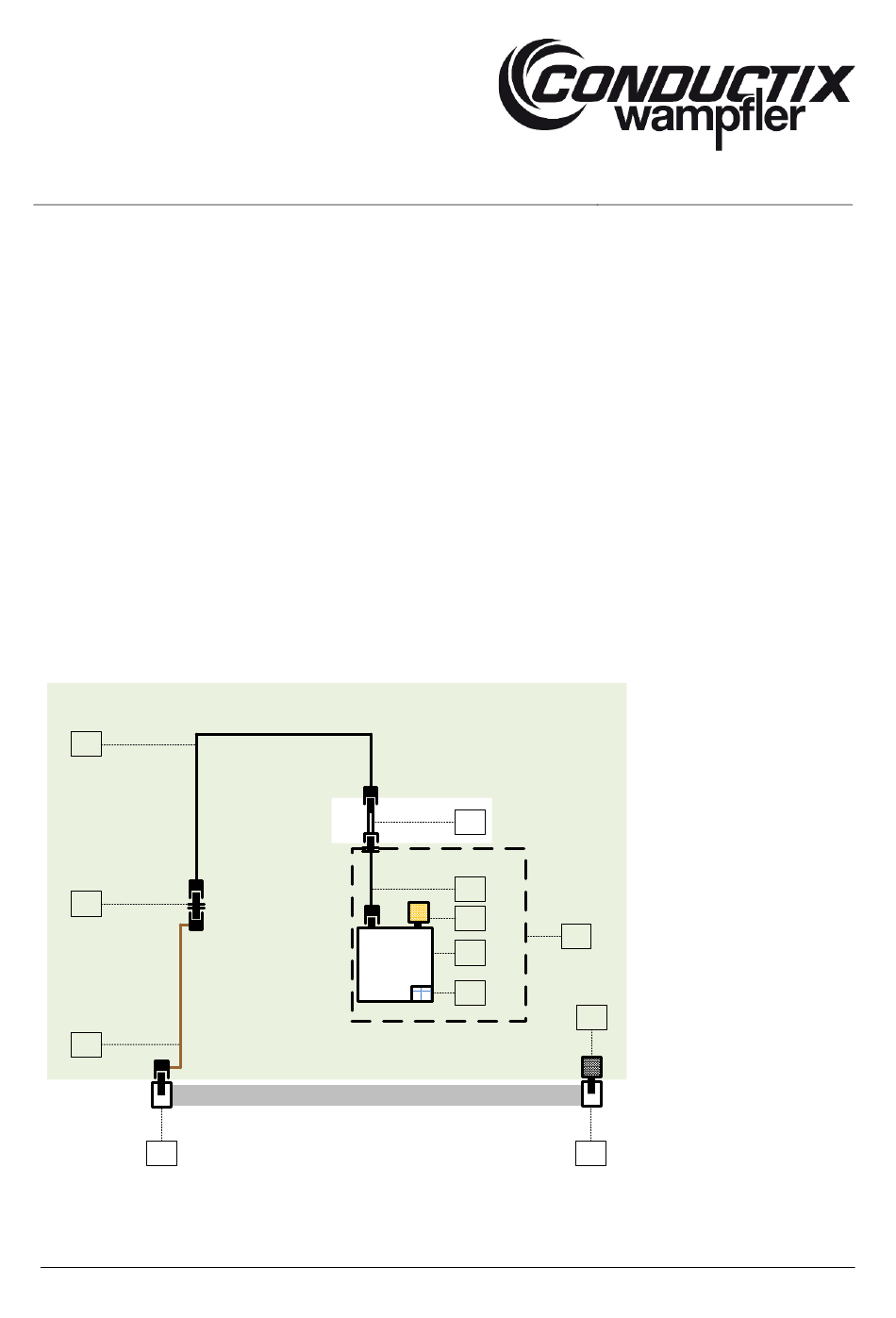

Connection at the end feed
6
11
8
30
Fig. 141: Connection at end feed
MAL0515-0001i-EN
www.conductix.com
5
4
3
AP
1
2
Translated from MAL0515-0001k-DE
50
31
30
