Mounting Instructions
ProfiDAT
compact
®
Data Transmission System
Program 0515
2.) Mount PE connector on segment (without connector point)
→ Drill an elongated hole (Ø 21 mm) for the PE bolt into the support structure (substructure), through which the spacer can be
guided (see Fig. 98 and Fig. 99). The dimensions of the elongated hole depend on the air gap set in the expansion unit (see
Section 6.4.4.2). In addition, the spacer must be able to move freely in the elongated hole.
→ If there is no connection point after 25 m, mount the connector into the data rail segment using a drilling jig.
→ Align the drilling jig (2) with the data rail (1). (see Fig. 100 and Fig. 101)

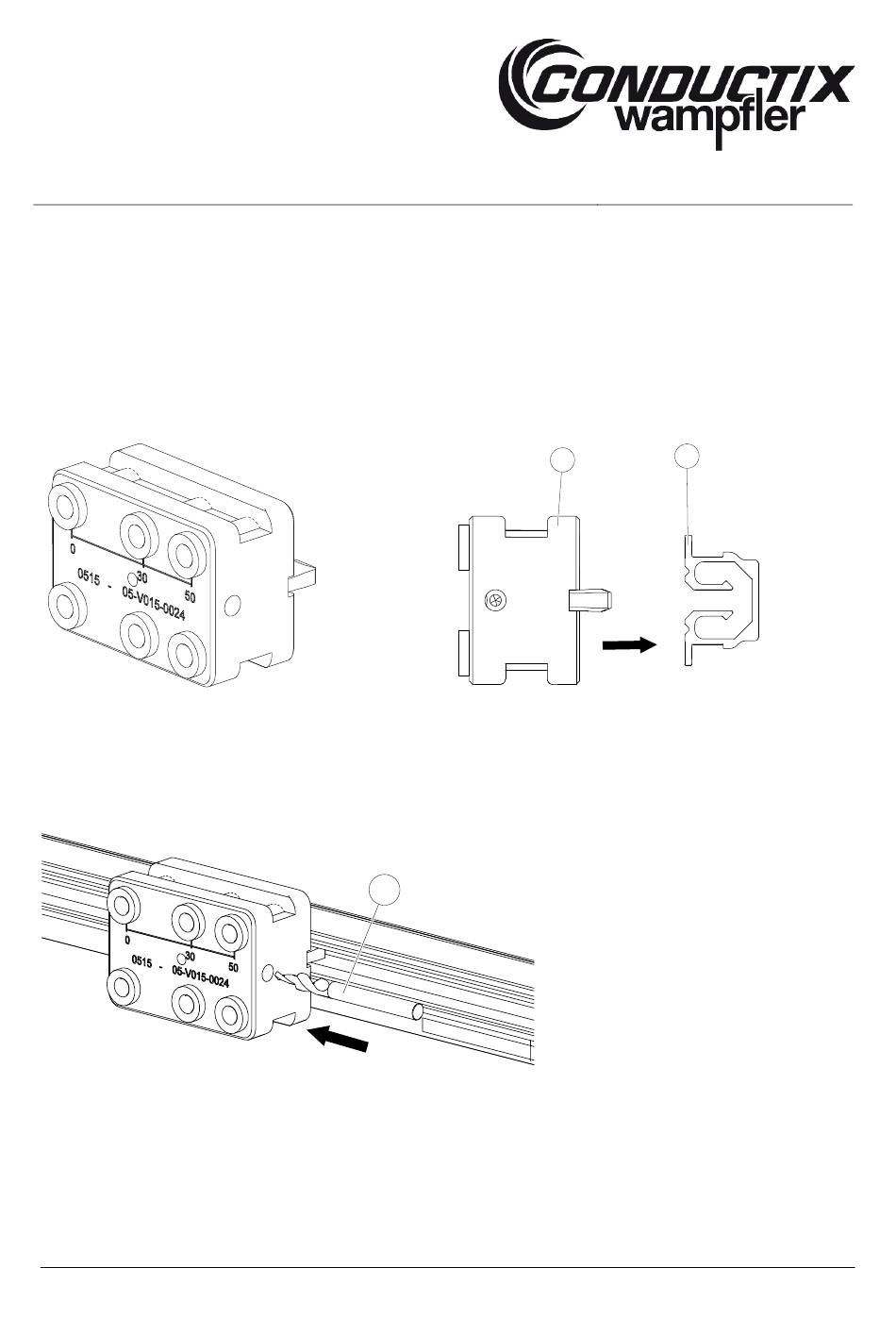

Fig. 86: Flexible drilling jig
→ To adjust the drilling depth, insert the step drill M3 90° (3) into the lateral drill hole on the drilling jig up to the mechanical stop
(see Fig. 88).
Fig. 88: Step drill M3 90° into lateral drill hole
→ Slide the stop ring (4) over the step drill M3 90° (see Fig. 89).
→ Align the stop ring correctly and fasten it accordingly (see Fig. 90).
MAL0515-0001i-EN
www.conductix.com
Fig. 87: Slide the drilling jig (1) into the data rail (2)
3
Translated from MAL0515-0001k-DE
2
1
Page 78 of 169
