The drill holes for the connector in the data rail must be redrilled if the data rail length must be adjusted. A special drilling jig is
available for this (Order No.: 05-V015-0005).
Work steps:
3

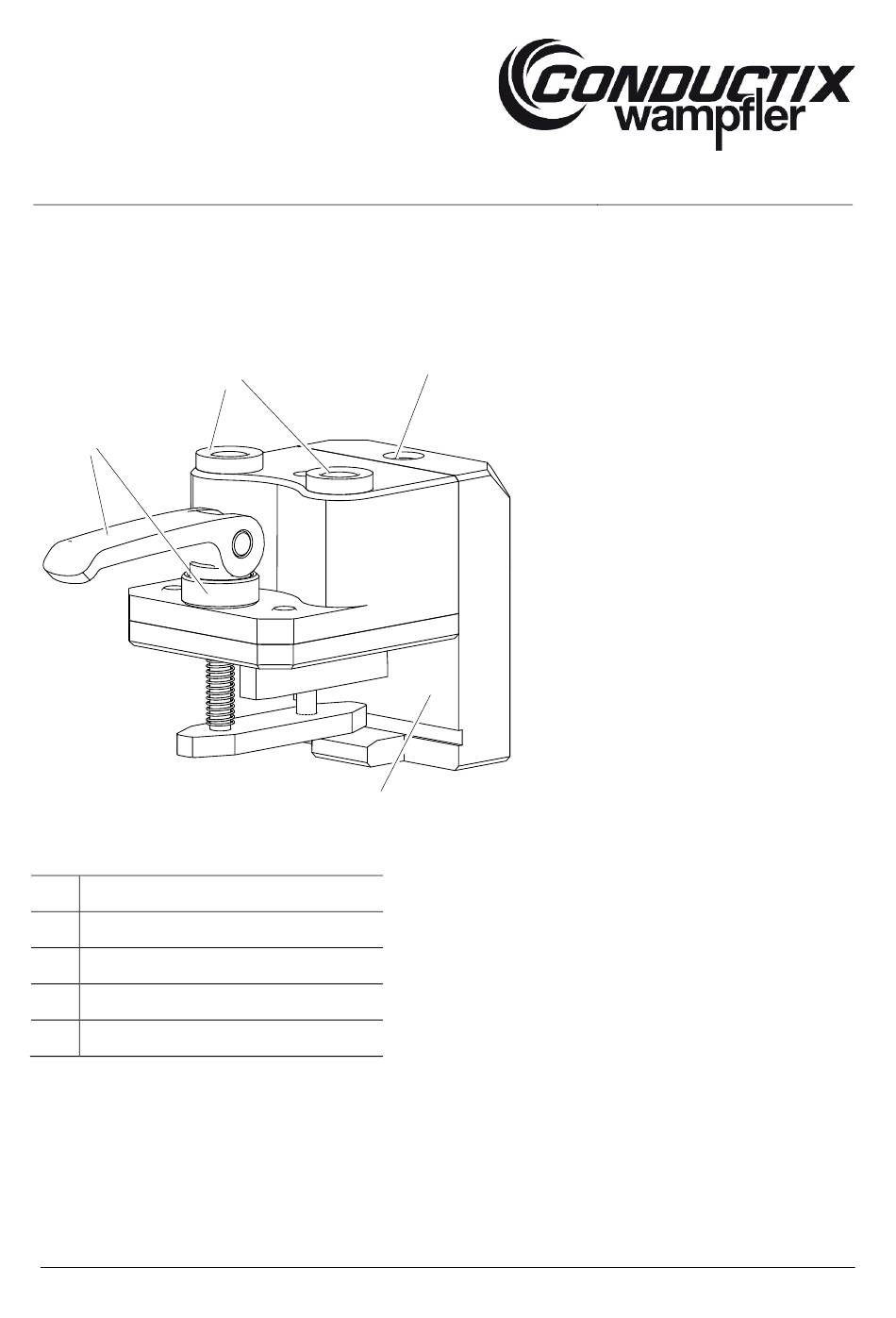

Fig. 100: Drilling jig 0515 overview
Item Name
1 Drilling hole (to set/adjust the adjusting ring)
2 Drill guide
3 Eccentric tappet with adjustment nut
4 Rail stop
MAL0515-0001i-EN
www.conductix.com
2
4
Translated from MAL0515-0001k-DE
1
