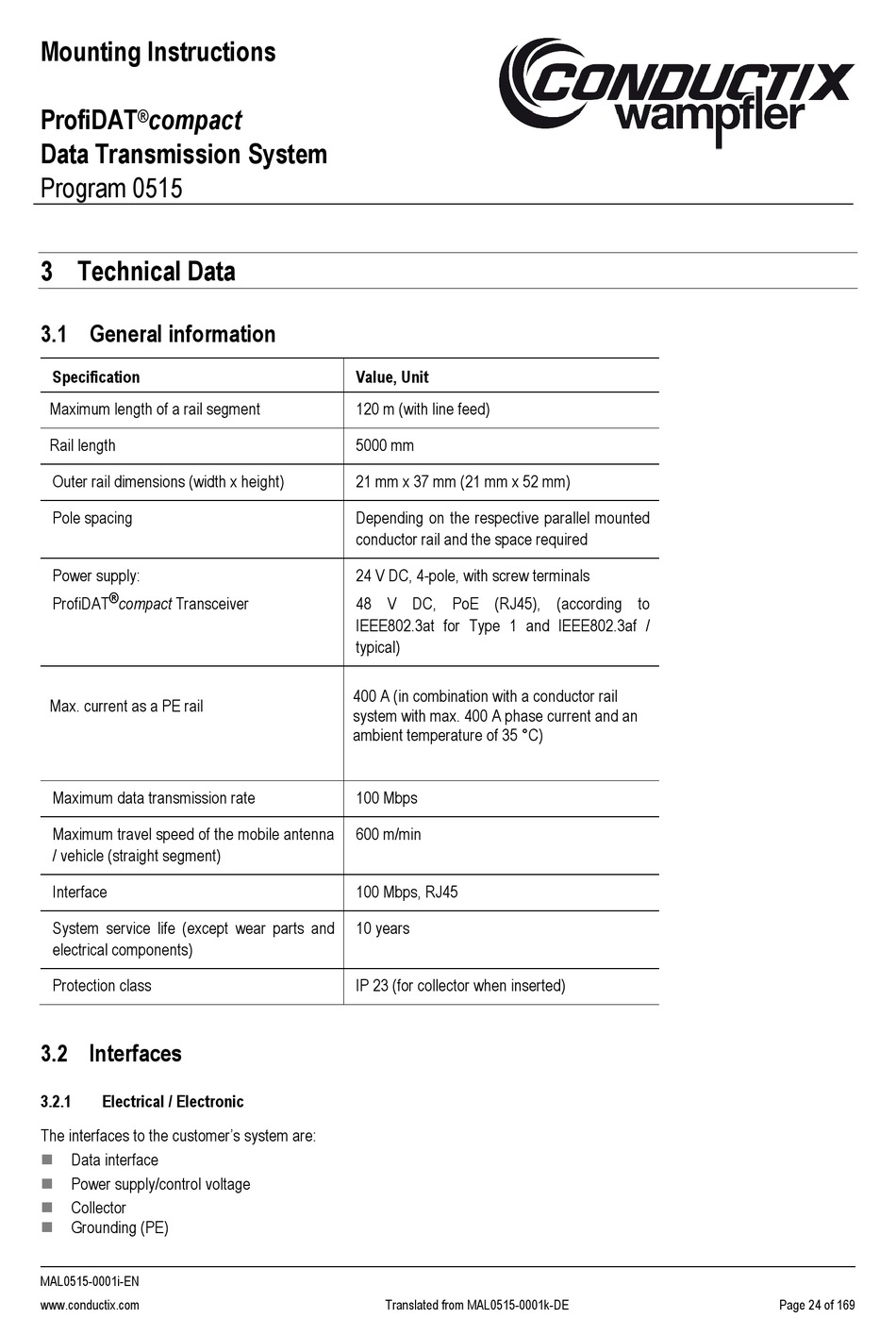

Conductix-Wampfler ProfiDAT compact Mounting Instructions page 24

Mounting Instructions
ProfiDAT compact
®
Data Transmission System
Program 0515
3 Technical Data
3.1 General information
Specification
Maximum length of a rail segment
Rail length
Outer rail dimensions (width x height)
Pole spacing
Power supply:
®
ProfiDAT compact Transceiver
Max. current as a PE rail
Maximum data transmission rate
Maximum travel speed of the mobile antenna
/ vehicle (straight segment)
Interface
System service life (except wear parts and
electrical components)
Protection class
3.2 Interfaces
3.2.1 Electrical / Electronic
The interfaces to the customer's system are:
Data interface

Power supply/control voltage

Collector

Grounding (PE)

MAL0515-0001i-EN
www.conductix.com
Value, Unit
120 m (with line feed)
5000 mm
21 mm x 37 mm (21 mm x 52 mm)
Depending on the respective parallel mounted
conductor rail and the space required
24 V DC, 4-pole, with screw terminals
48 V DC, PoE (RJ45), (according to
IEEE802.3at for Type 1 and IEEE802.3af /
typical)
400 A (in combination with a conductor rail
system with max. 400 A phase current and an
ambient temperature of 35 °C)
100 Mbps
600 m/min
100 Mbps, RJ45
10 years
IP 23 (for collector when inserted)
