Mounting Instructions
ProfiDAT compact
®
Data Transmission System
Program 0515
Standard PE connector
5

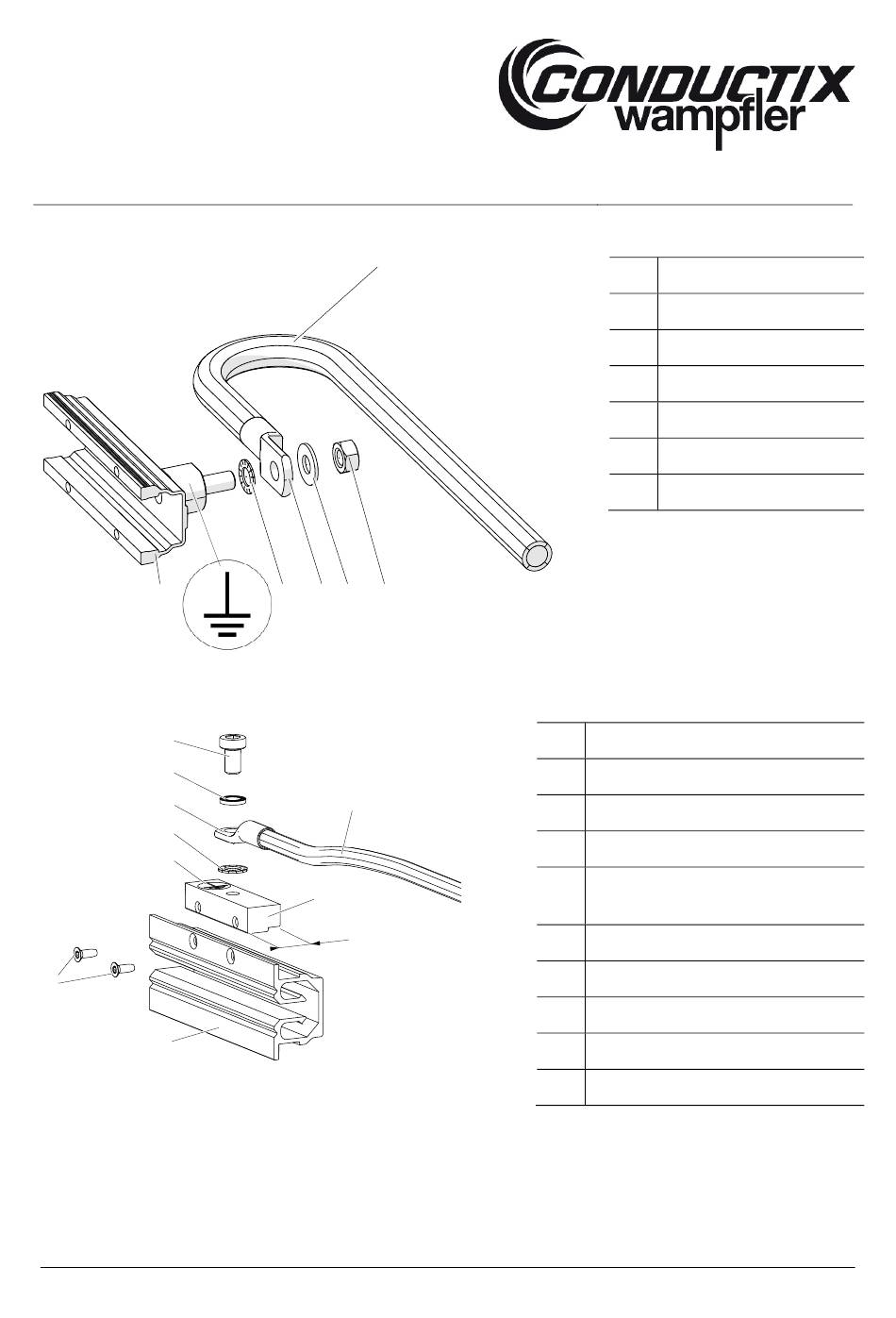

Fig. 31: PE connector
Optional lateral PE connection
6
5
4
3
9
1
7
Fig. 32: PE connection
MAL0515-0001i-EN
www.conductix.com
6
4 3 2 1
8
2
B
Translated from MAL0515-0001k-DE
Item Name
1 Hexagon nut, DIN 934
2 Locking edge washer
3 Cable lug up to 95 mm² M8
4 Serrated washer
5 PE connector
6 PE cable
Item Name
1 Countersunk screw M3 x 8
Fastening
2
3 Serrated washer A6,4 DIN 6798
4 Cable lug up to 25 mm² M6 possible at
max. width (w) of < 14 mm
5 Locking edge washer D6.1
6 Cylinder head screw DIN 6912-M6x10
7 Connector
8 PE cable
9 PE symbol
