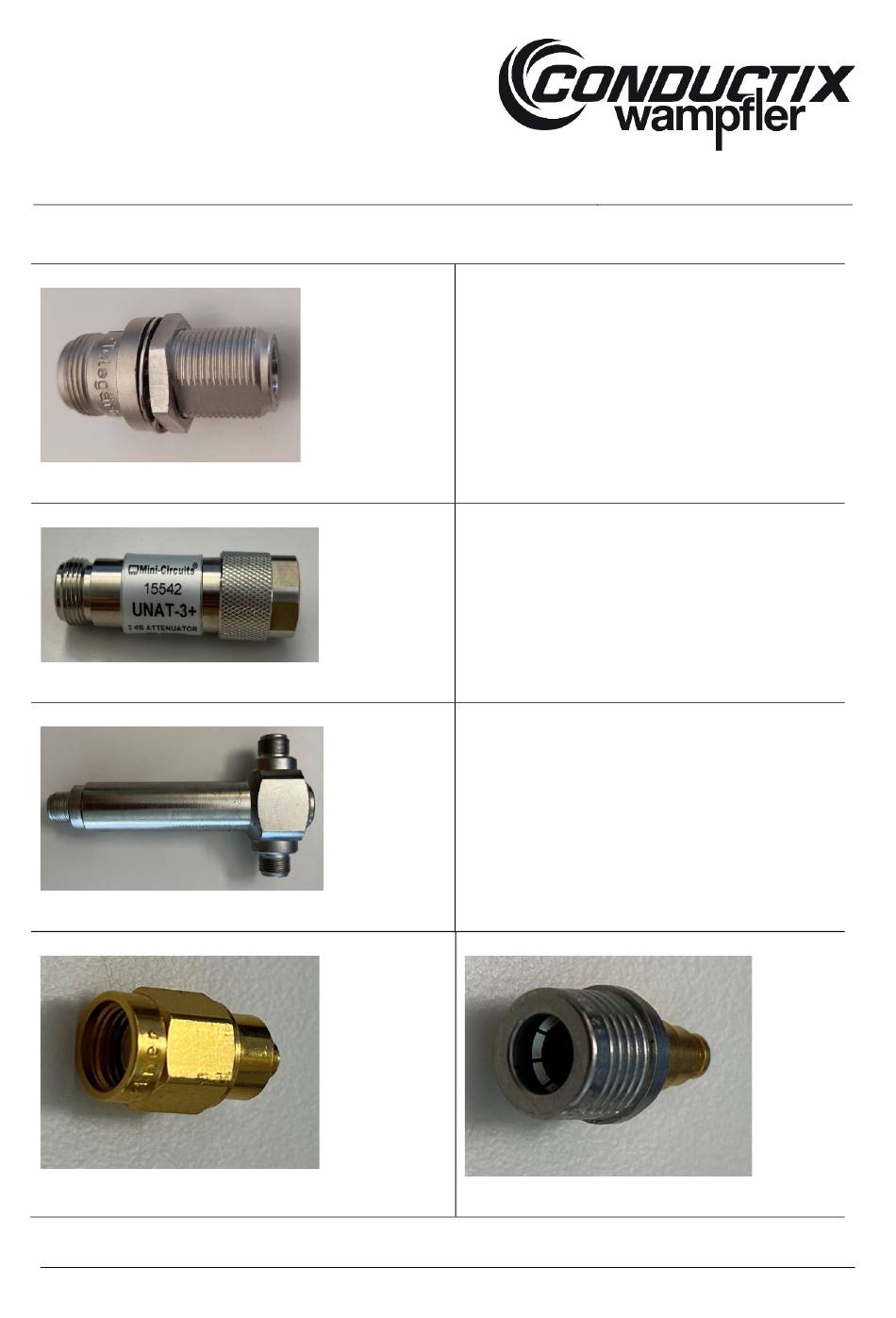

3.5.2 Further passive HF components
Fig. 10: N-socket (on both sides) as switching cabinet bushing
Fig. 11: N-attenuator (example 3dB)
Fig. 12: N-power splitter
Fig. 13: R/SMA terminating resistor
MAL0515-0001i-EN
www.conductix.com
Drill hole diameter: 16mm
Length: 54 mm
Shaft diameter: 18mm
Shaft diameter: 34 mm
Outer dimensions: 72 x 132 mm
Fig. 14: QMA terminating resistor
