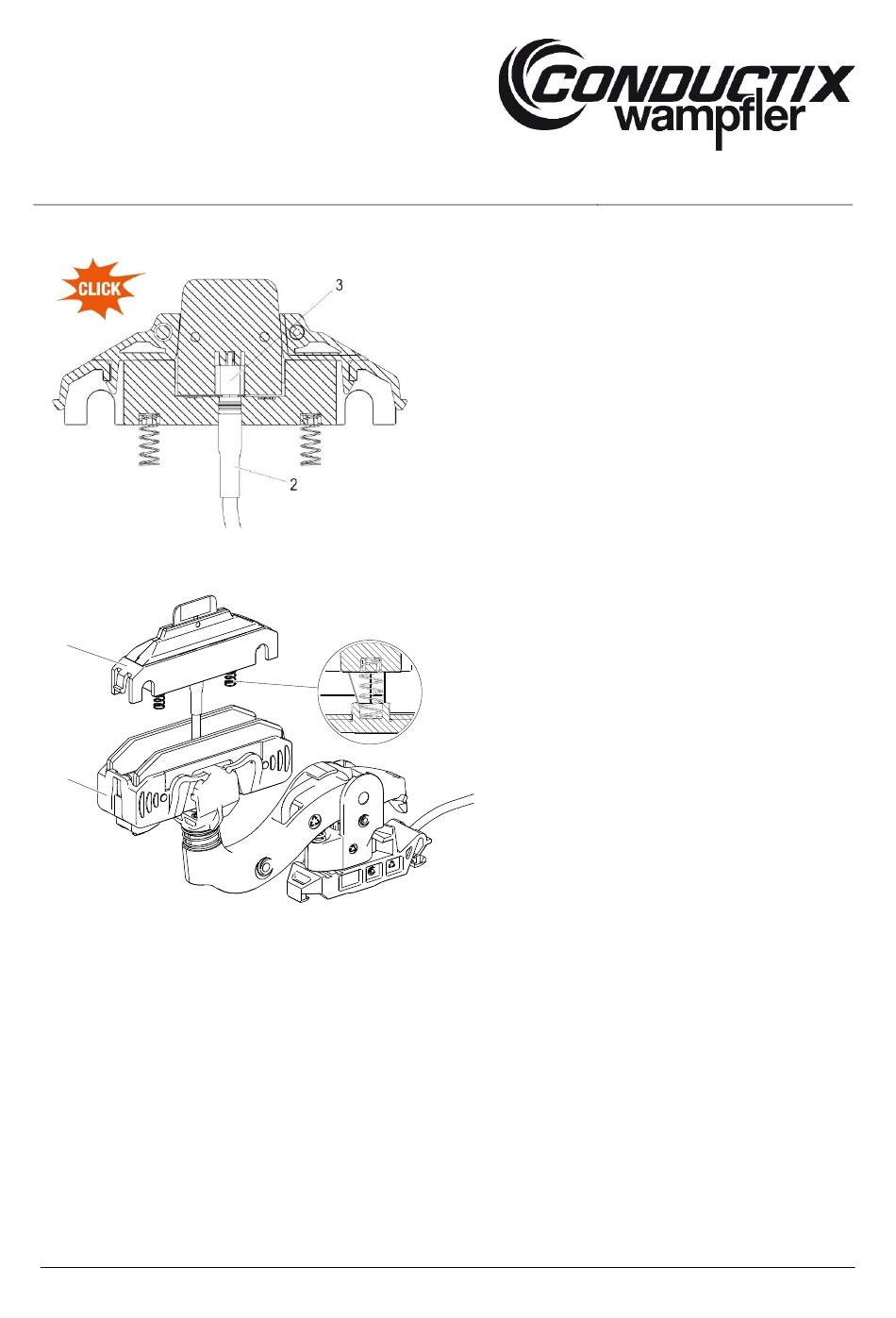

→ The data cable connector (2) must audibly click into the circuit board connector (3) (see Fig. 181).
Fig. 181: Click in connector
→ Mount the collector housing (1) and balance (2). Carefully tighten the data cable (see Fig. 182).
1
2
Fig. 182: Collector housing (1) is mounted on balance (2)
