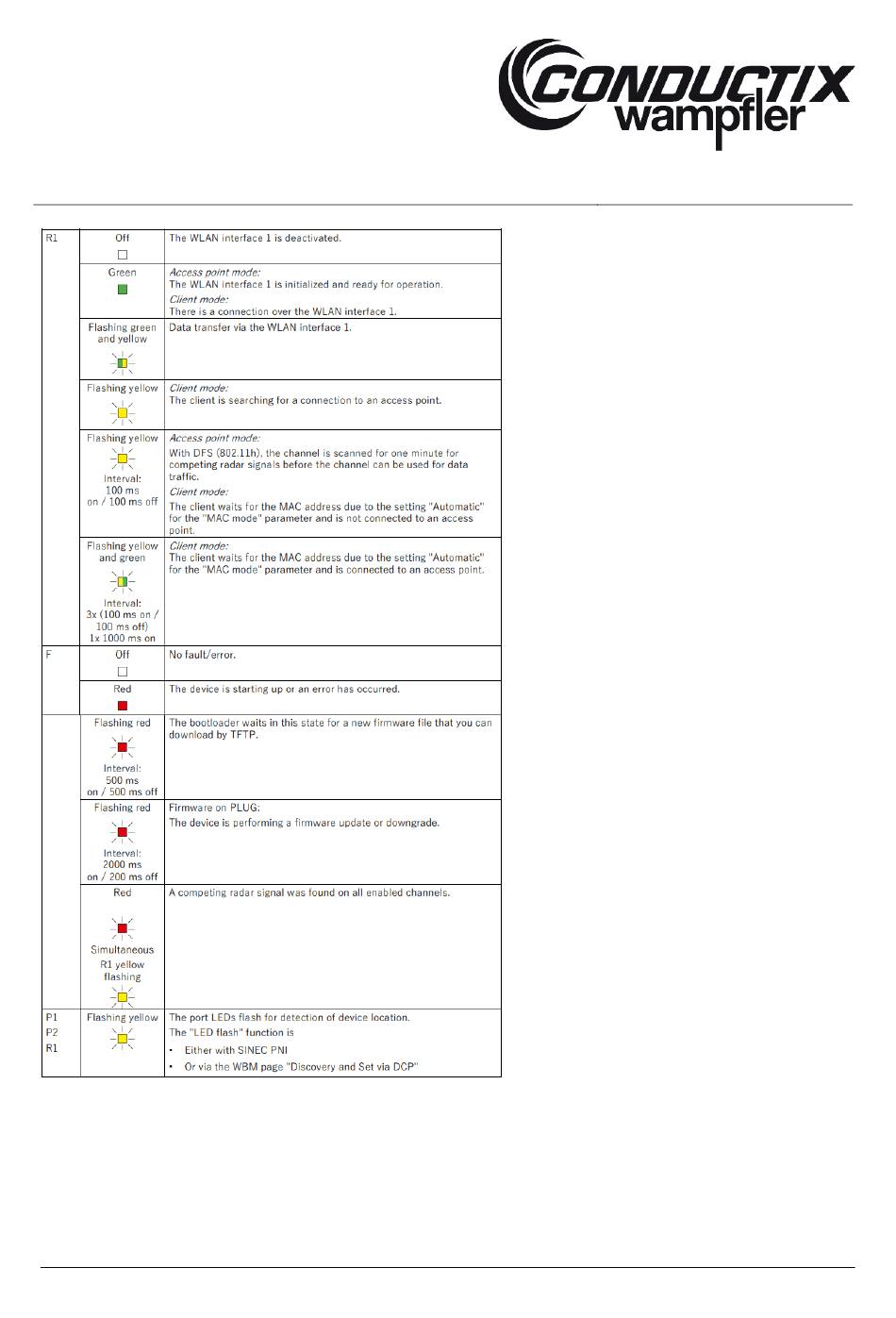

Fig. 192: Transceiver LED state (Source: Scalance W774-1 / W734-1 Operating Instructions)
The following basic functions can be checked based on the LEDs:
Power supply
•
Network connection
•
Wi-Fi connection
•
Fault state
•
