→ Drill with a cordless screwdriver (incl.
countersink) until the adjusting ring
comes into contact with the drill bushing

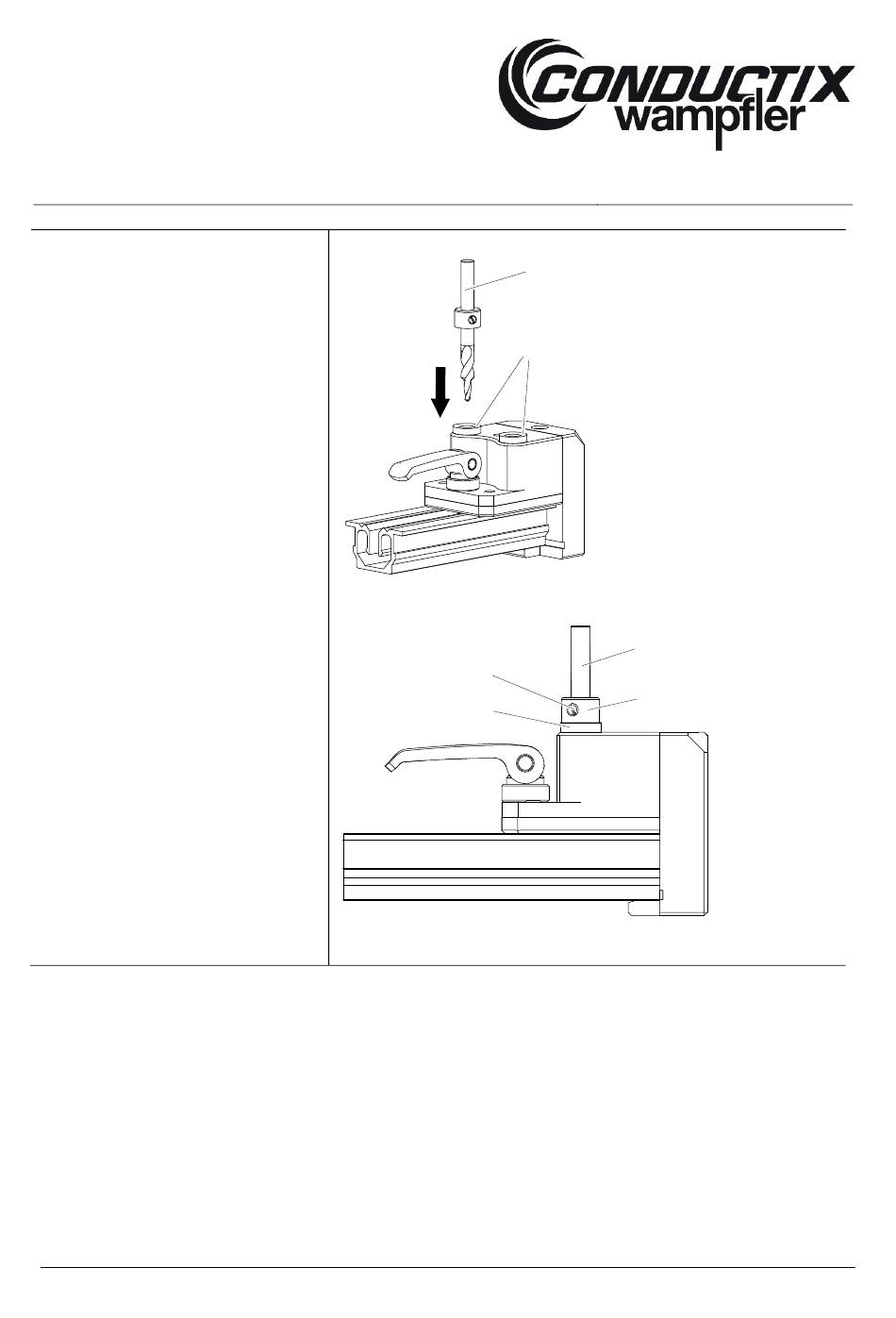

(2) (see Fig. 111).
MAL0515-0001i-EN
www.conductix.com
Fig. 110: Data rail
6
2
Fig. 111: Step drill (5) lays against drilling hole (10)
Translated from MAL0515-0001k-DE
