Mounting Instructions
ProfiDAT compact
®
Data Transmission System
Program 0515
→ Disconnect the collector head (1) from the connector (2) of the data cable (HF cable) (3). The data cable (HF cable) must
protrude approx. 80 mm from the joint (see Fig. 151).
80

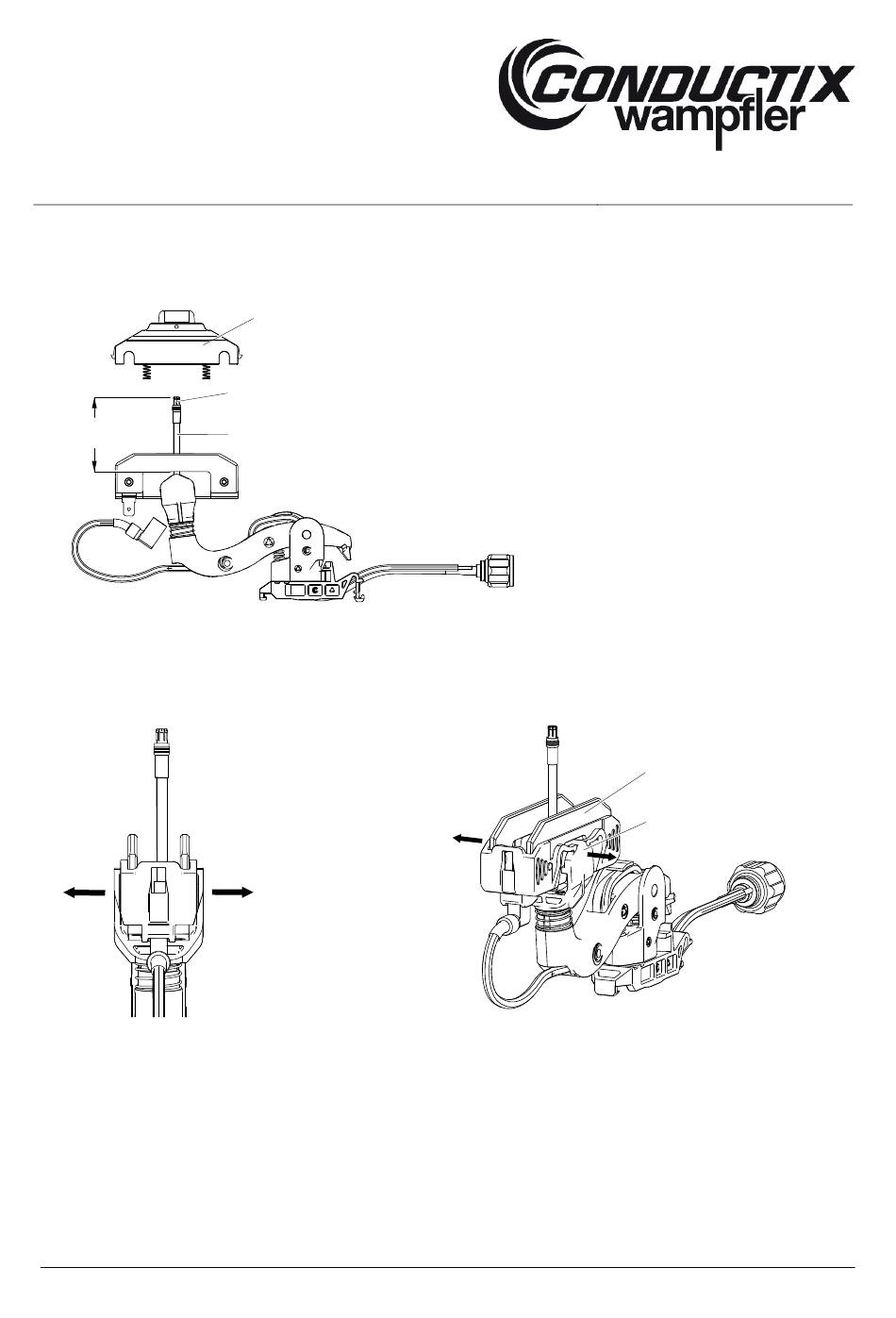

Fig. 151: Pull collector housing (1) from data cable (HF cable) (3)
→ Disassemble the balance incl. sliding contact (1) from the joint (2) (see Fig. 152 and Fig. 153). If necessary, use a flat-head
screwdriver > 3.0.
Fig. 152: Disassemble balance incl. sliding contact from joint
MAL0515-0001i-EN
www.conductix.com
1
2
3
Translated from MAL0515-0001k-DE
Fig. 153: Balance incl. sliding contact (1) and joint (2)
1
2
