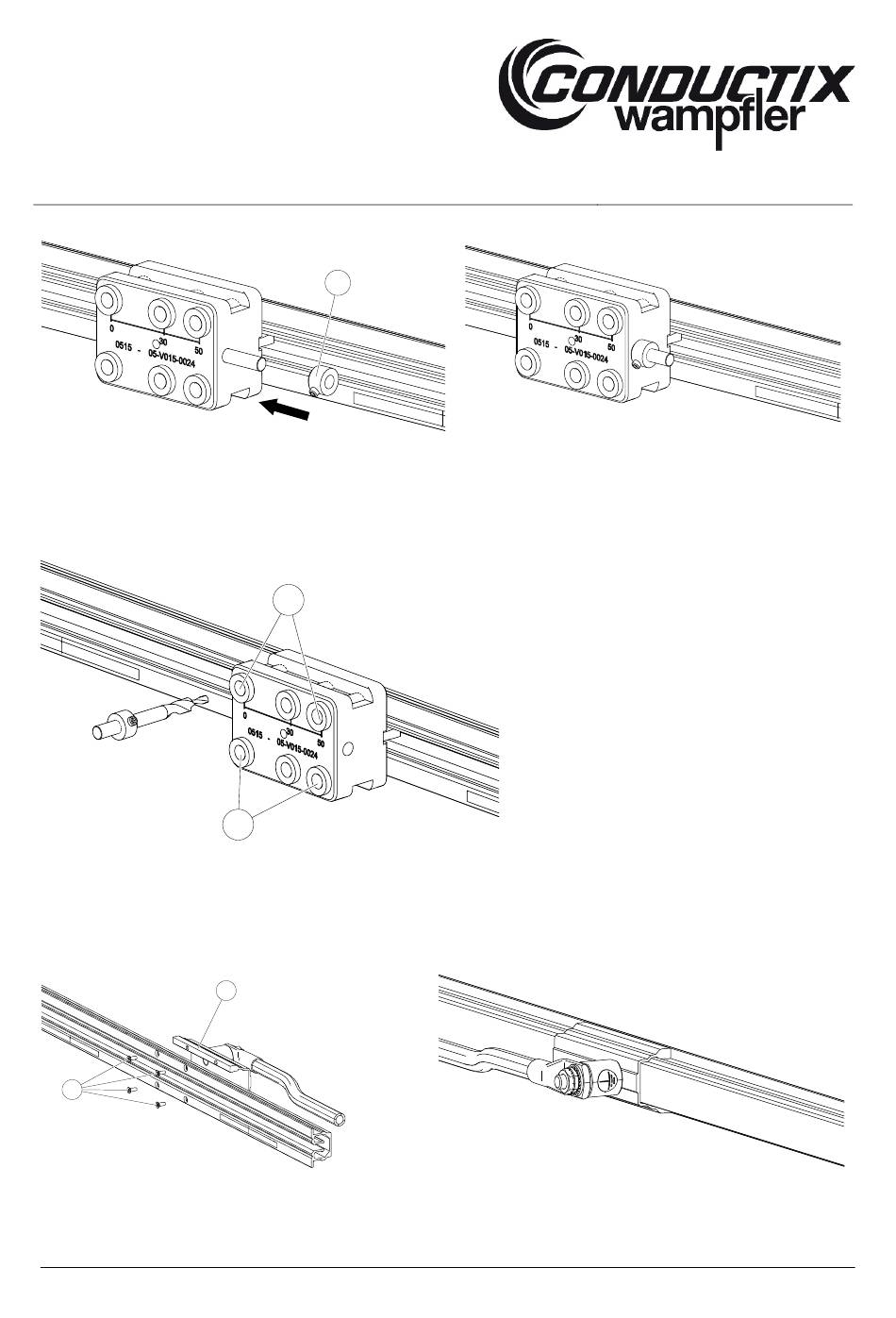

Fig. 90: Align stop ring correctly
Fig. 89: Slide stop ring (4) over step drill M3 90°
→ Drill the 4 holes (5) into the data rail. The drill holes are deburred during the drilling process (see Fig. 105).
5
5
Fig. 91: Drill 4 holes for PE connector
→ Tighten all 4 self-tapping screws (W5154-K30X8-ES) (6) with a torque shut-off screwdriver (e.g. TorqBee) to 2 Nm
(see Fig. 106).
7
6
Fig. 92: Tighten all 4 self-tapping screws Fig. 93: PE connector is mounted
